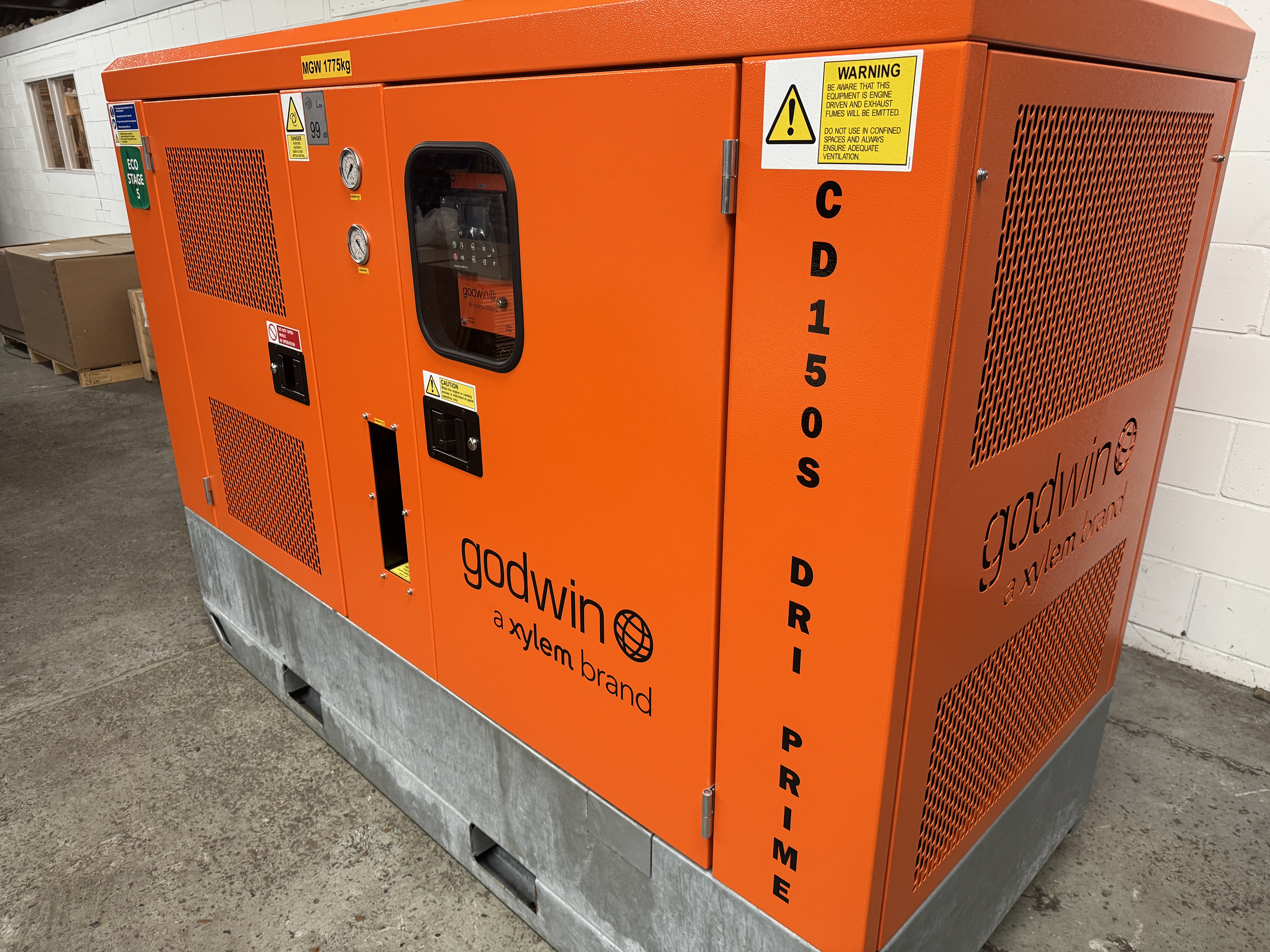

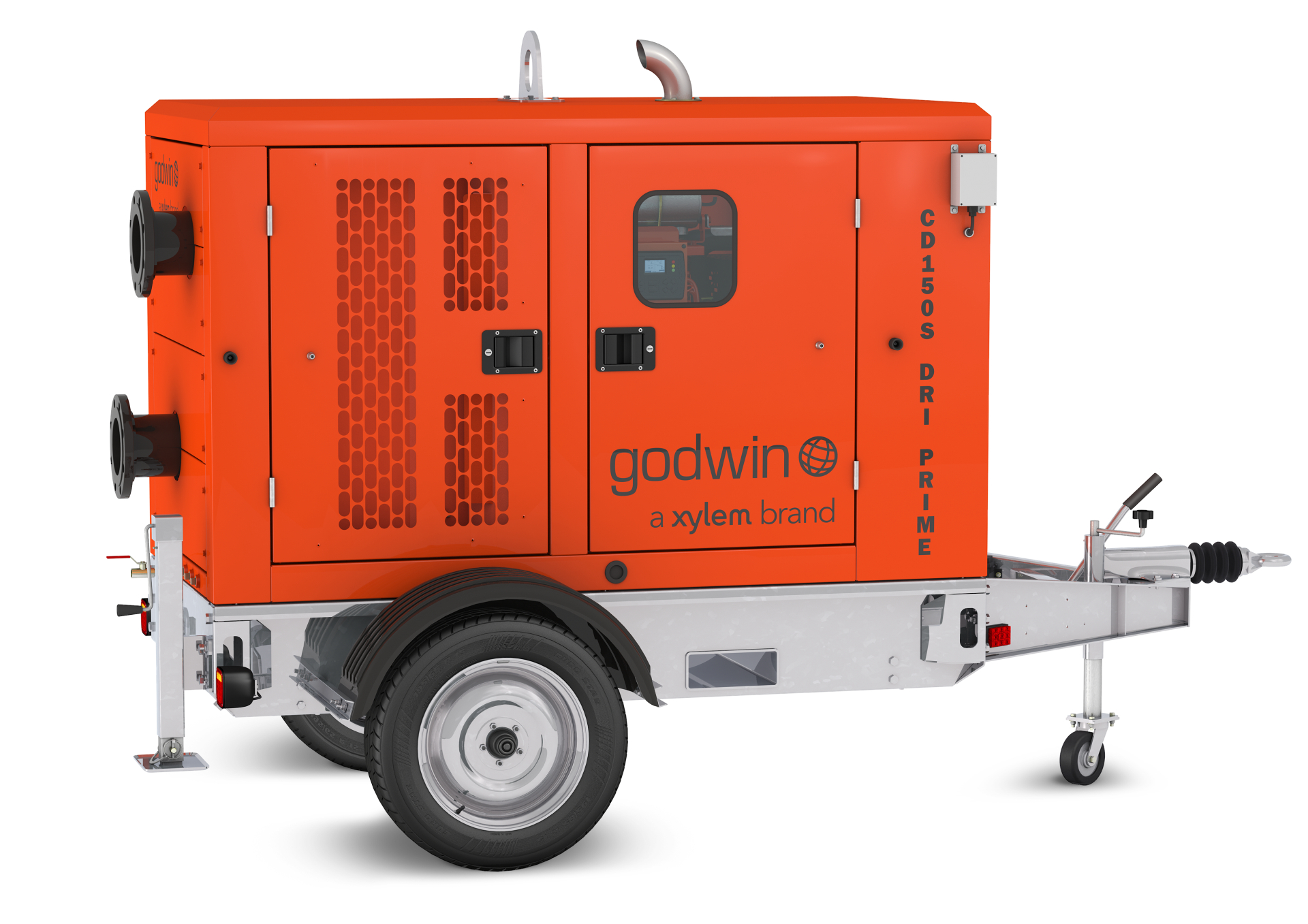

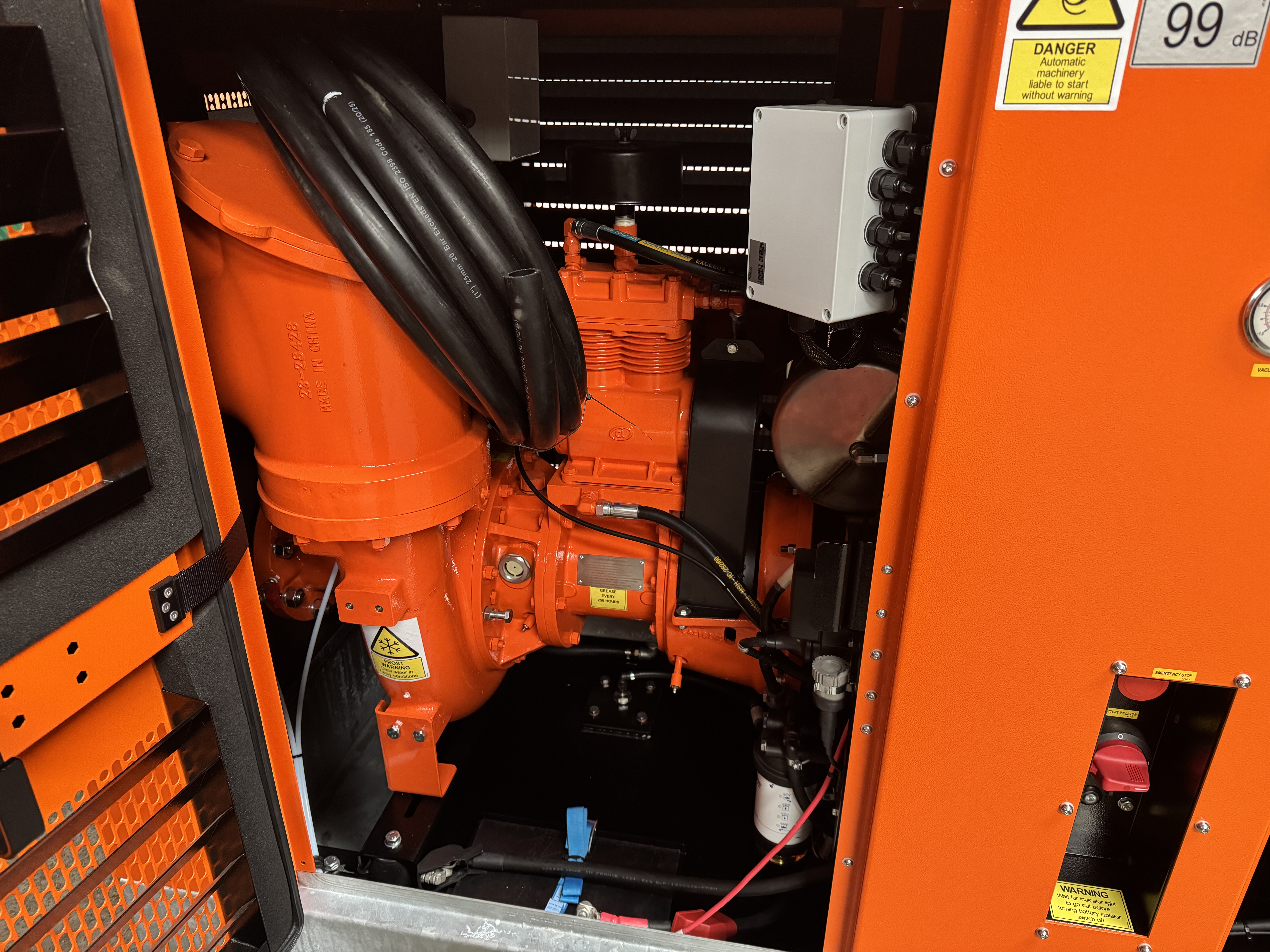

Godwin Dri-Prime CD150S Pump with Perkins Engine and Hush Pac

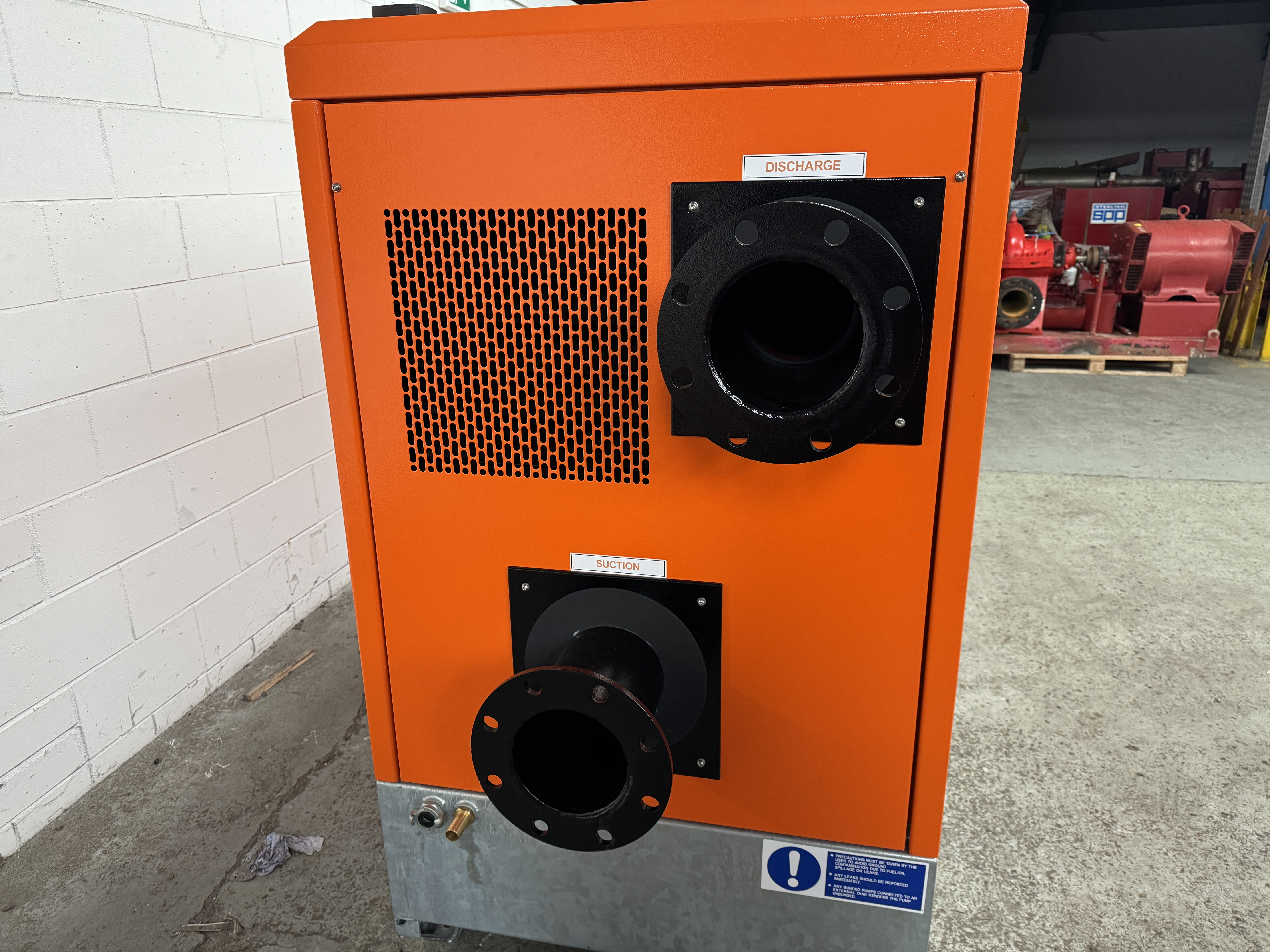

Godwin CD150S pump, with 150mm suction and 150mm discharge. It is powered by a Perkins 403J Stage V diesel engine with a fuel capacity of 195 litres and solids handling to 75mm.

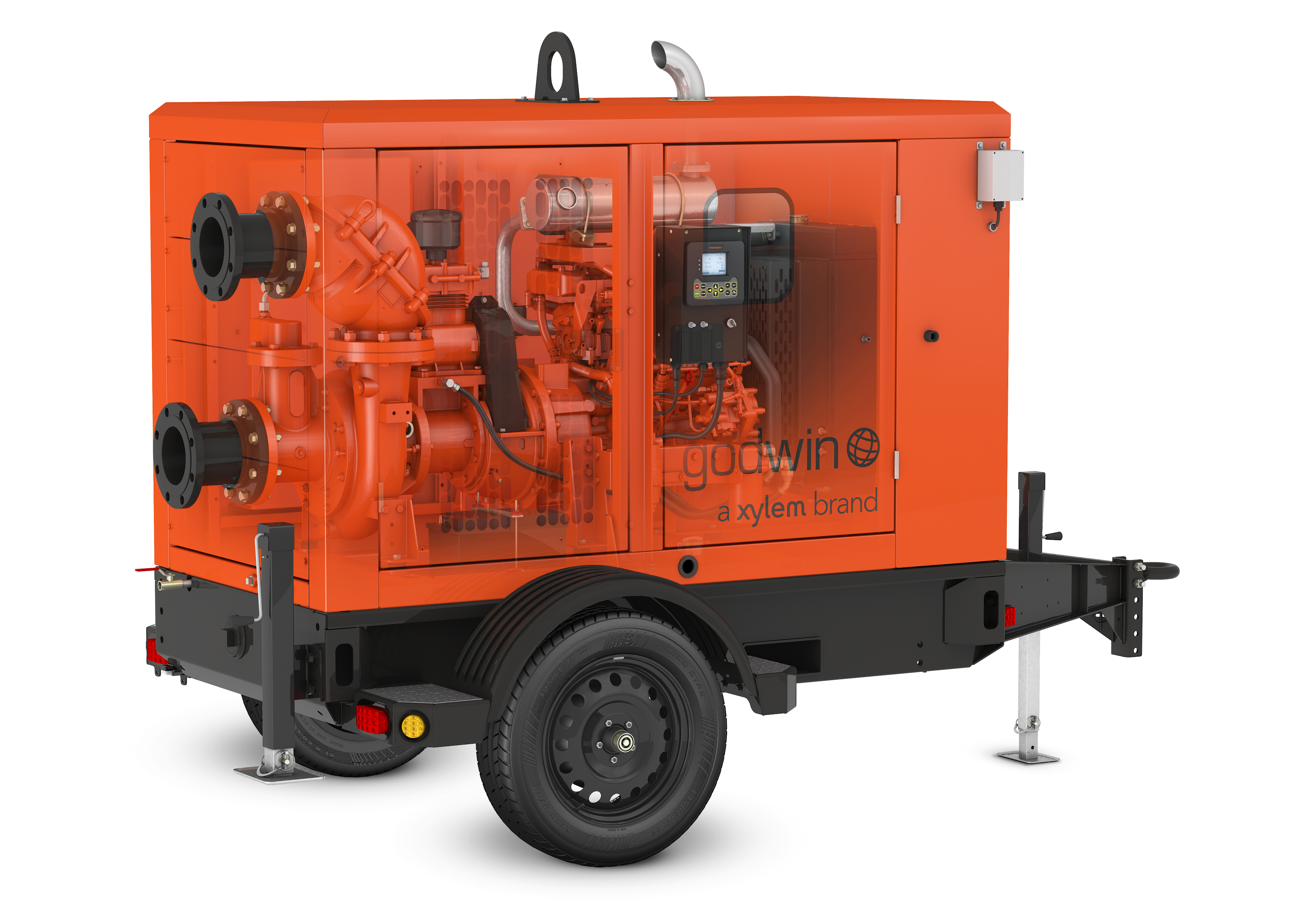

The Godwin Dri-Prime CD150S pump has flow capabilities to 520 m³/hr and a sound-attenuated enclosure.
The Godwin CD150S Dri-Prime pump is a versatile, general purpose dewatering pump designed for use in the industry’s most challenging construction, municipal, industrial and emergency response applications.

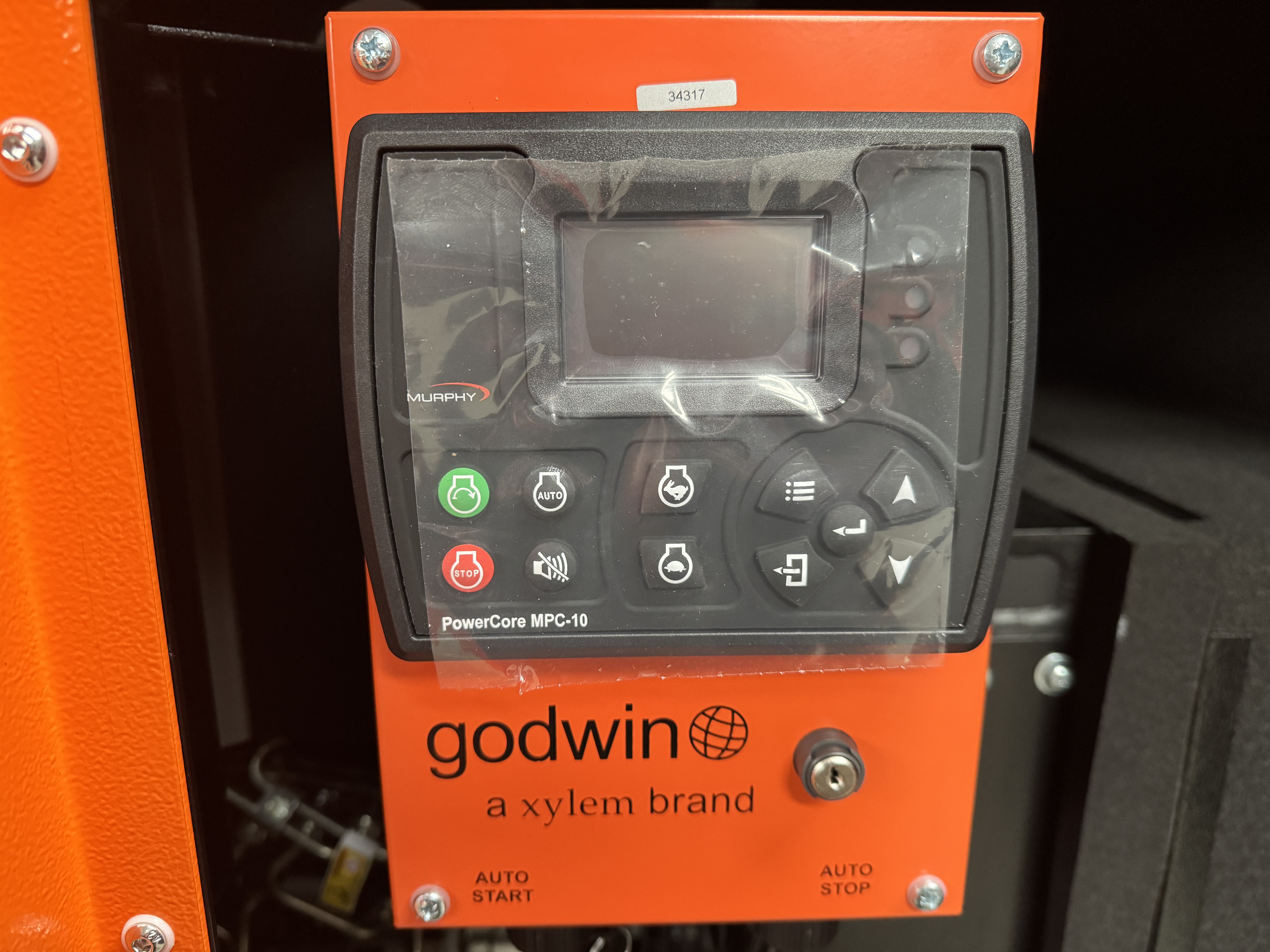

The CD150S is a member of the Godwin S Series of Smart pumps,equipped with a new generation of Field Smart Technology (FST) for
remote monitoring and control. In addition to improved hydraulic efficiency, greater fuel economy, and streamlined serviceability, the
CD150S impeller is interchangeable with a Flygt N-Technology non-clog impeller, providing the flexibility to tackle stringy, modern wastewater applications with the same pump.
- Technical Data
Condition New (Brand New) Manufacturer Godwin Model / Part CD150S Max Flow 520.00 m³/hr Suction Size 6 inch (150 mm) Discharge Size 6 inch (150 mm) Solids Handling 75 mm Drive Perkins 403J-E17T Diesel Engine Kilowatts 33.50 kW - Dimensions
Length 2,450 mm Width 940 mm Height 1,870 mm Weight (Dry) 1450.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
