Perkins Engine 404D-22G In Stock and Ready-to-Ship

11 Images

  • Price: £3,595.00 Excl. VAT
  • Condition: New
  • Stock: 17 Unit/s in Stock
  • Stock Number: Non Assigned

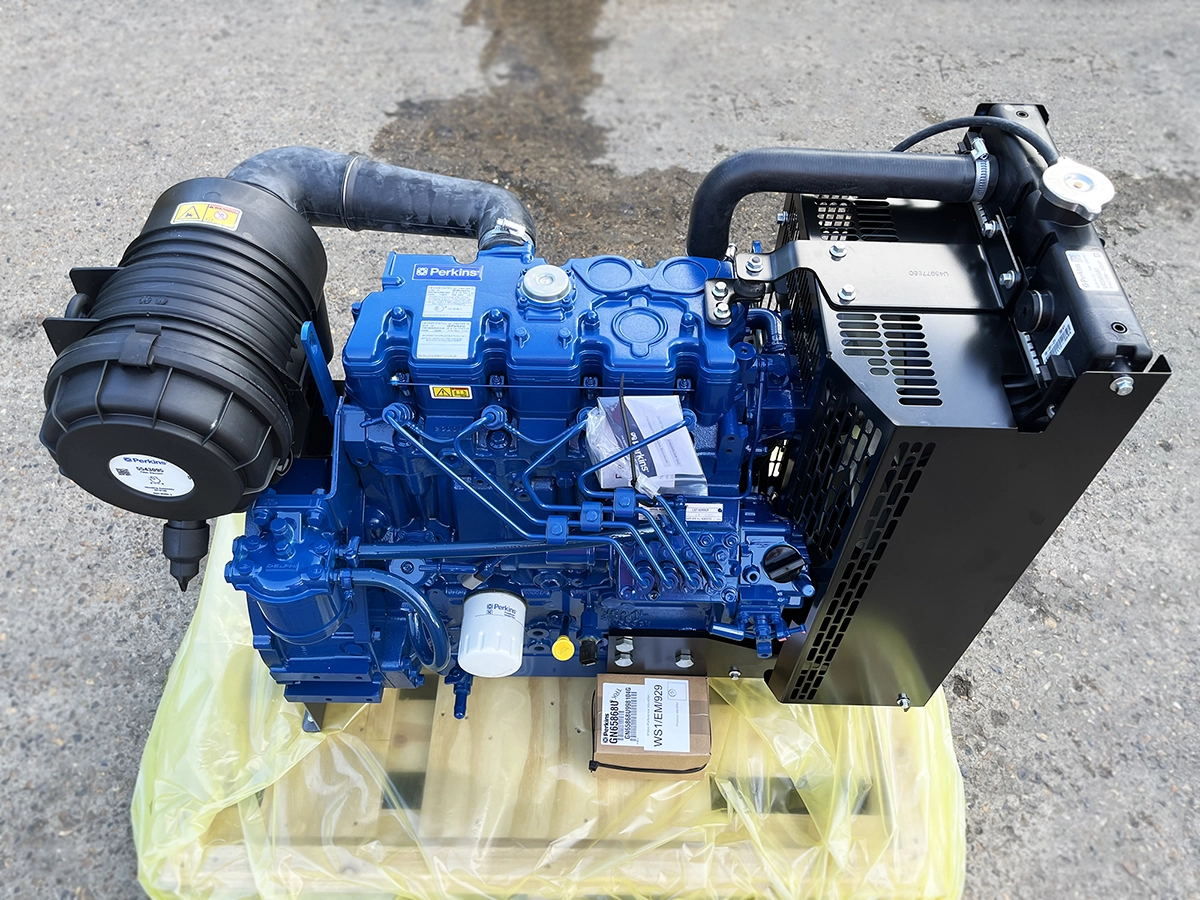

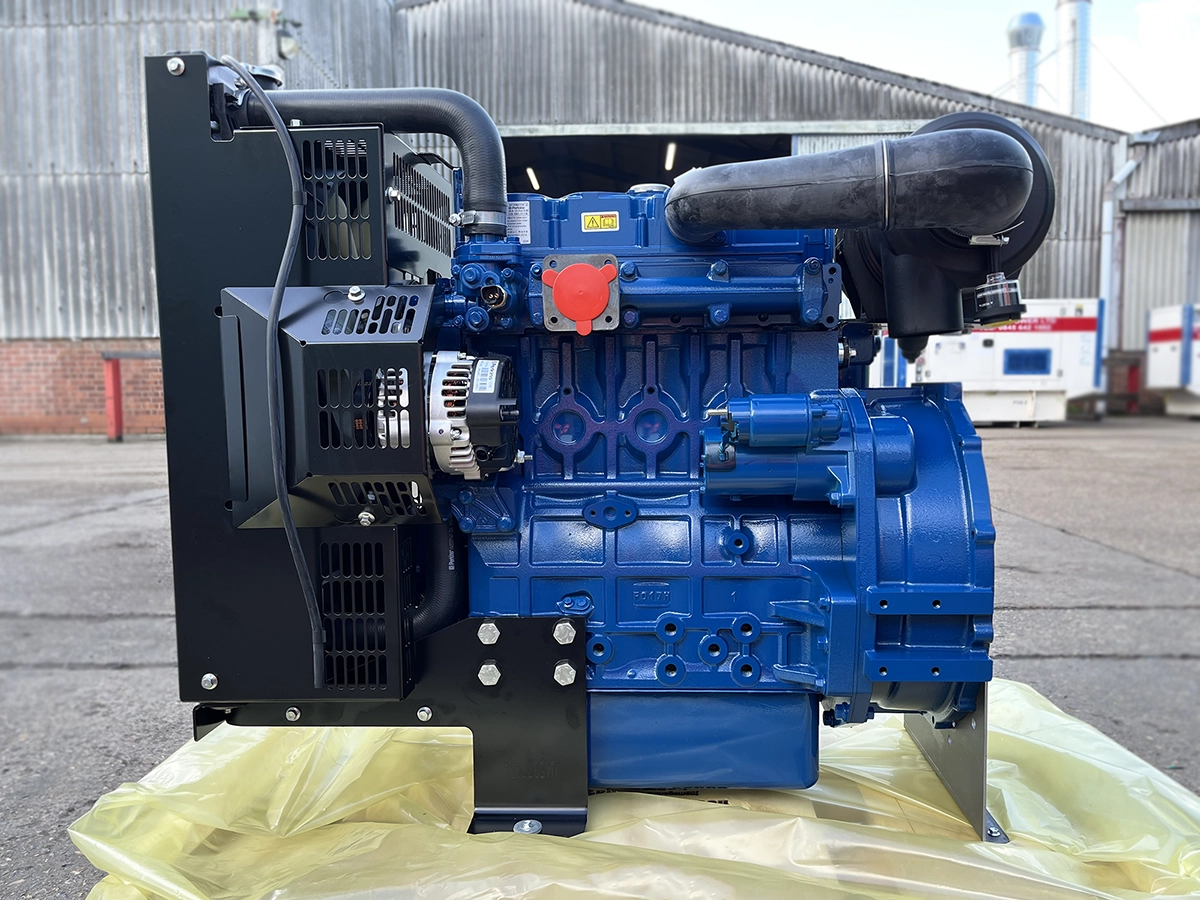

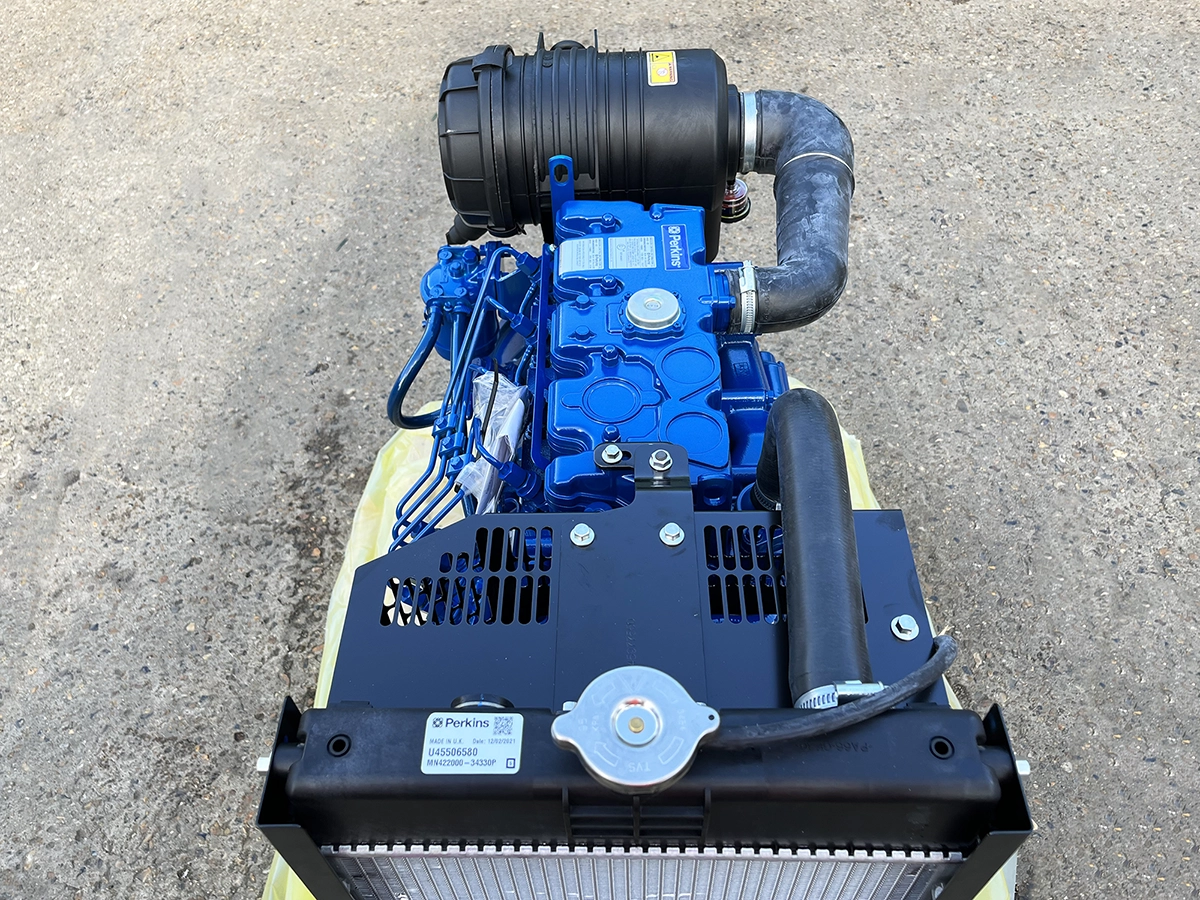

Perkins Engine 404D-22G In Stock and Ready-to-Ship

The Perkins 404 range of electric power (EP) engines is the largest, most refined member of the 400 Series. The 4 cylinder, 2.2 litre 404 offers improvements such as reduced noise, vibration and harshness (NVH). Offering the same customer benefits as the wider 400 family such as reliability, cold-start capability, low operating costs, excellent fuel economy and compact, clever design the 404 makes a smart choice for customers in the generator set market across unregulated and EU Stage IIIA.

This 20.3 kWm @ 1500 rpm engine is a fixed genset application but can be converted to variable speed via a LC Governor for an additional estimated £450.00.

£3,595.00 each or £3,415.00 if 5 or more ordered.

KEY SPECS

  • Gross Mechanical Output: 18-24 kWm
  • Typical Electrical Output: 20-26 kVA (16-21 kWe)

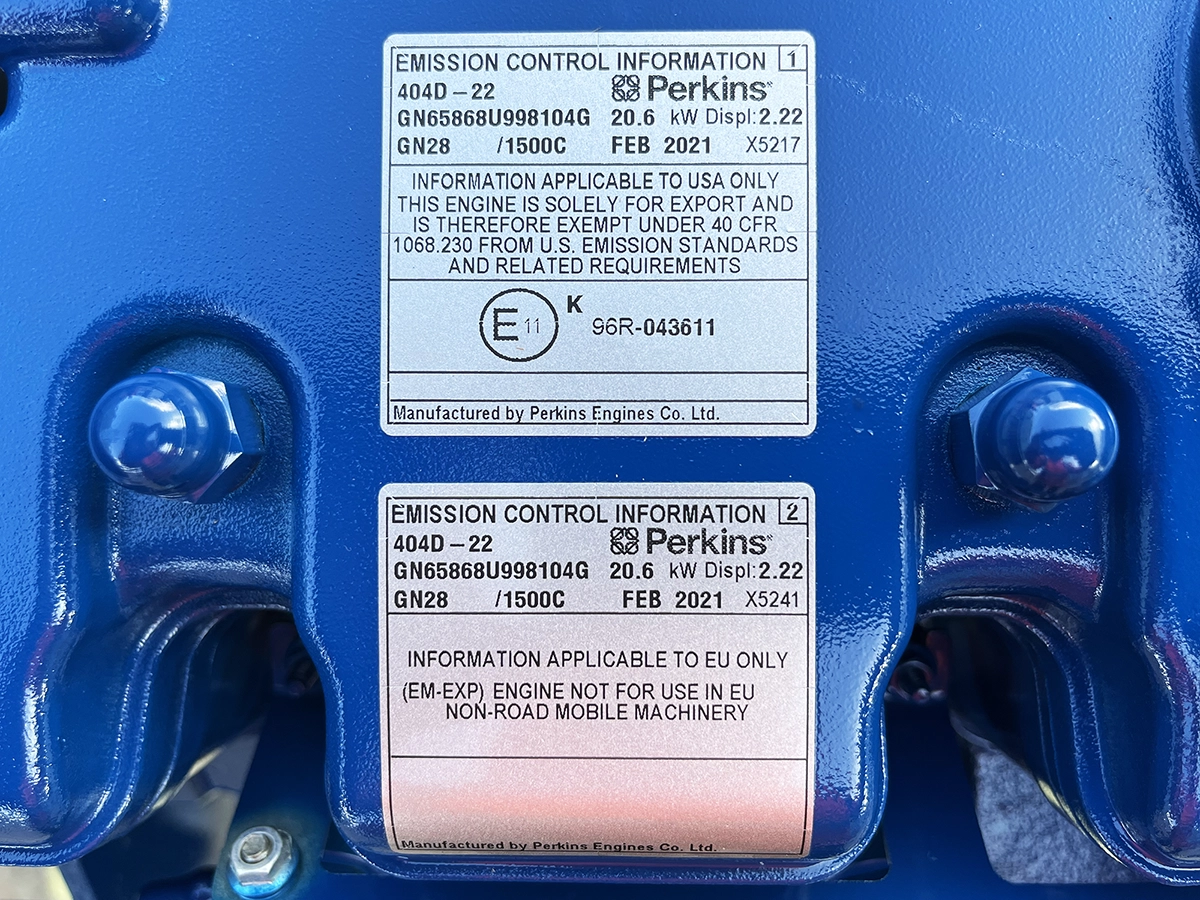

  • Emissions: EU Stage IIIA

  • Technical Data
    Manufacturer Perkins - 404D-22G
    Standby 22.0 kVA / 20.0 kW
    Number of Cylinders 4 inline
    Bore 84 mm
    Stroke 100 mm
    Displacement 2.2 l
    Compression Ratio 23.3:1
    Aspiration Naturally aspirated
    Combustion System Indirect injection
    Rotation from Flywheel End Anti-clockwise
    Cooling System Liquid
    Typical Alternator Efficiency 87-89%
  • Dimensions
    Length 948 mm
    Width 498 mm
    Height 841 mm
    Weight 242.00 kg

    Please Note: The dimensions and weight are approximate and may be estimated.
