Piezometers
Piezometer Tips
A piezometer tip containing a porous element is connected via rigid tubing to ground level. Piezometric pressure at the tip is indicated by the head of water that develops inside the standpipe tubing. This water level is usually measured by lowering a dipmeter probe from ground level. Remote reading systems can also be supplied.

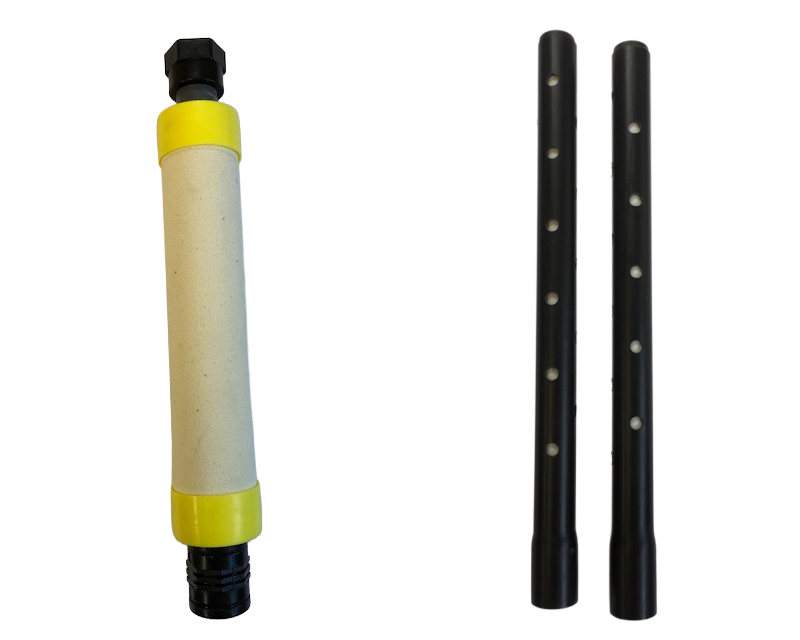

Porous HDPE or ceramic piezometer elements are available with an average pore diameter of approximately 60 microns and a permeability of approximately 3 x10-4m/sec. The tips are supplied with a .75" BSP threaded connector.
uPVC Piezometers

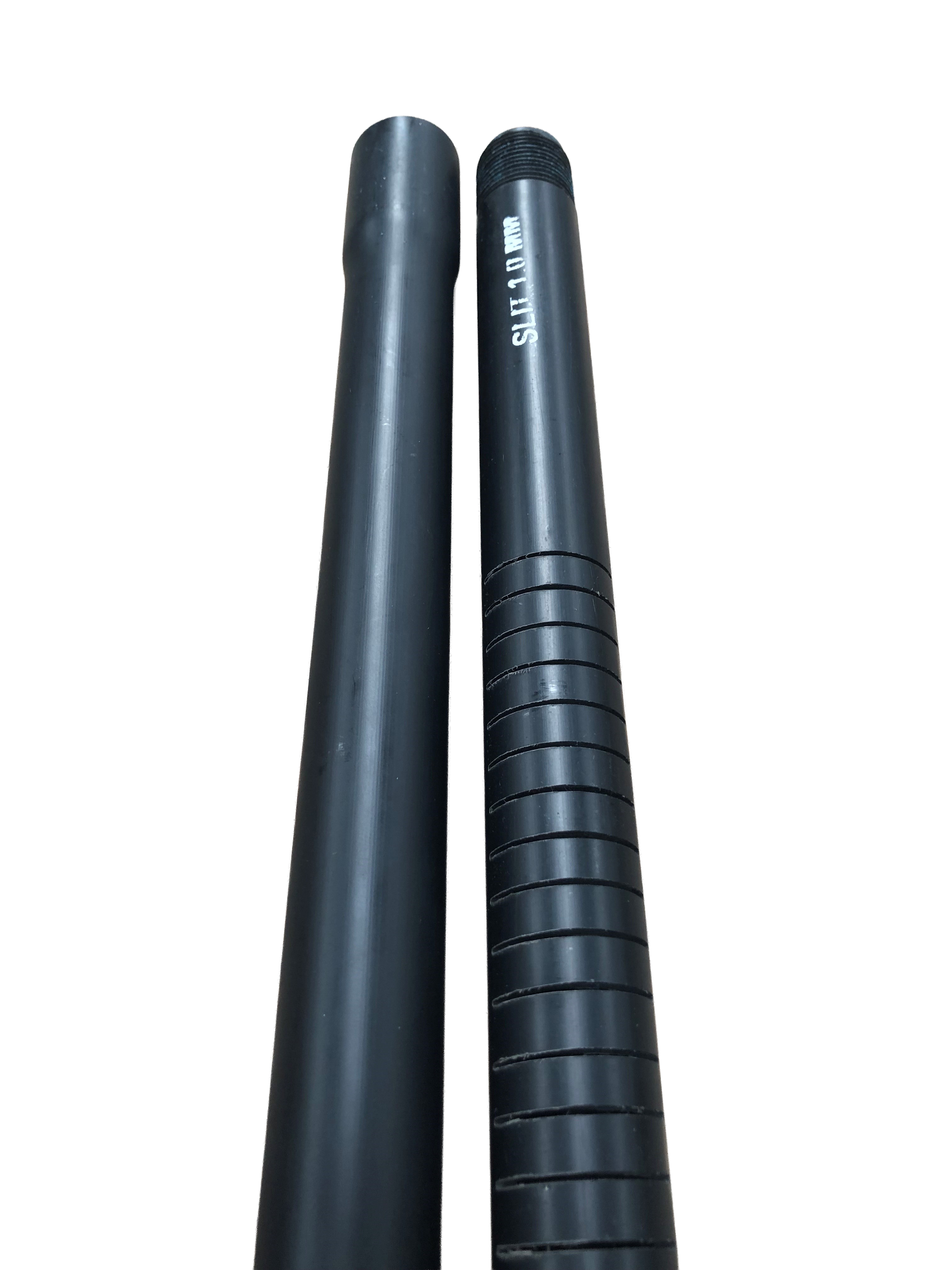

Lengths of standpipe tubing are supplied, complete with all necessary connectors. For borehole installations, it is normal to use rigid PVC. Piezometer pipe with an internal diameter of 19 mm is available in lengths of one and three metres. Each end is threaded .75" MBSP and supplied with one threaded socket for connection. Standpipe 3 m GP393P Standpipe 1 m GP191P
UPVC Piezometer pipe datasheet
| uPVC Piezometers | Length | Slot | OD | P/N |
|---|---|---|---|---|
| 19mm ID male/female threaded 26.6mm x 3.2mm wt.32mm over socket | 3 mtr | GP193P | ||
| 19mm ID male/female threaded | 3 mtr | 1 mm | GP193S | |
| 19mm ID male/female threaded | 1 mtr | GP191P | ||
| 19mm ID male/female threaded | 1 mtr | 1 mm | GP191S | |
| Casagrande Porous Plastic Tips. Porous HDPE element protected by perforated rigid PVC Sleeve | 1 mtr | 1 mm | 30 mm | GP191FBTP |
| Casagrande Ceramic Tips. Ceramic element protected by PVC end caps | 220 mm | 56 mm | GP220CT | |
| Casagrande Porous Plastic Tips. Porous HDPE element protected by perforated rigid PVC Sleeve. | 380 mm | Drilled | 30 mm | GP19.3PT |
| Rubber Methane Head 19mm | GP19RBMH | |||
| Screw Methane Head - Metal | GSMHM | |||
| Screw Methane Head - plastic | GSMHP | |||
| Piezo Push Bottom Male | GP19PPF | |||
| Piezo Screw In Plug | GP195TP | |||
| Piezo Screw on Cap | GP195BC |
Galvanised Piezometers

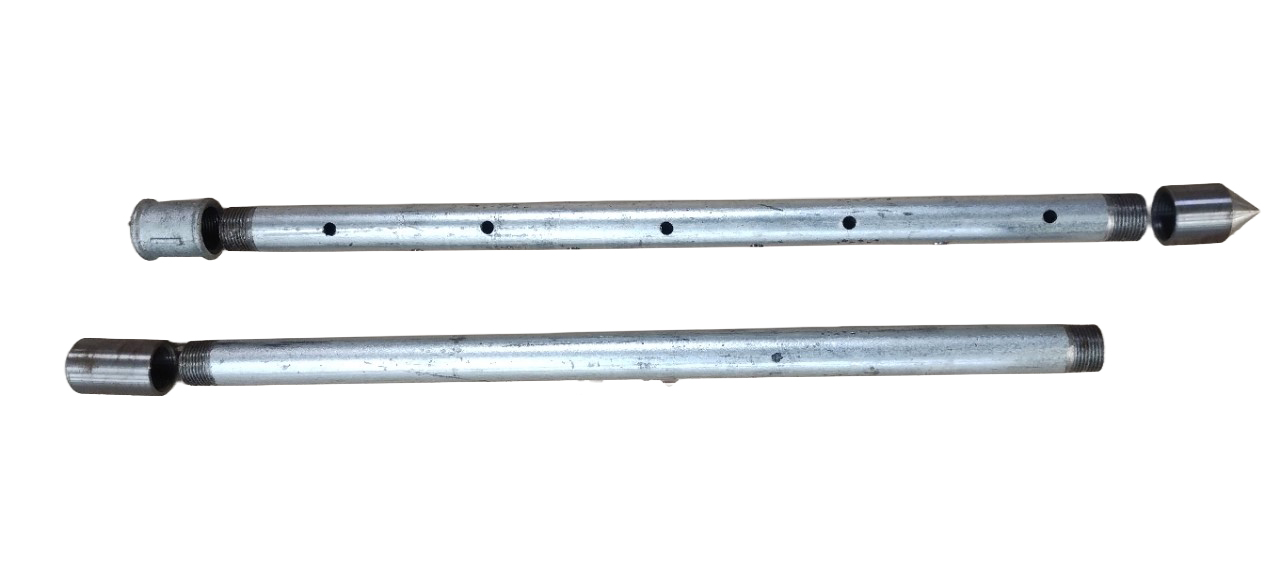

Galvanised piezometer pipes are high strength steel. They are ideal for when the pipe must be physically driven or hammered into the ground.
| Galvanised Piezometers | Length | P/N |
|---|---|---|
| 3/4" male/male threaded | 0.5 mtr | GP19.5GS |
| 3/4" male/male threaded | 1 mtr | GP191GS |
| Drilled with 8mm holes, 3/4" ID male/male threaded | 0.5 mtr | GP19.5GS8 |
| Drilled with 8mm holes, 3/4" ID male/male threaded | 1 mtr | GP191GS8 |
| Drilled with 8mm holes, porous plastic element, 3/4" ID male/male threaded | 1 mtr | GP191G8P |
| Drilled with 8mm holes, 3/4" ID male/male threaded | 300mm | GP19.3GS8 |
| Drilled with 8mm holes, porous plastic element, 3/4" ID male/male threaded | 300mm | GP19.3G8P |
| 3/4" FBSP galvanised caps | 3/4" FBSP galvanised caps | GP19GC |
| Mild steel 3/4" FBSO drive point | GP195PDP | |
| Mild steel 3/4" FBSP drive anvil | GP195PDA | |
| 3/4" FBSP Socket | GP19FBS |
