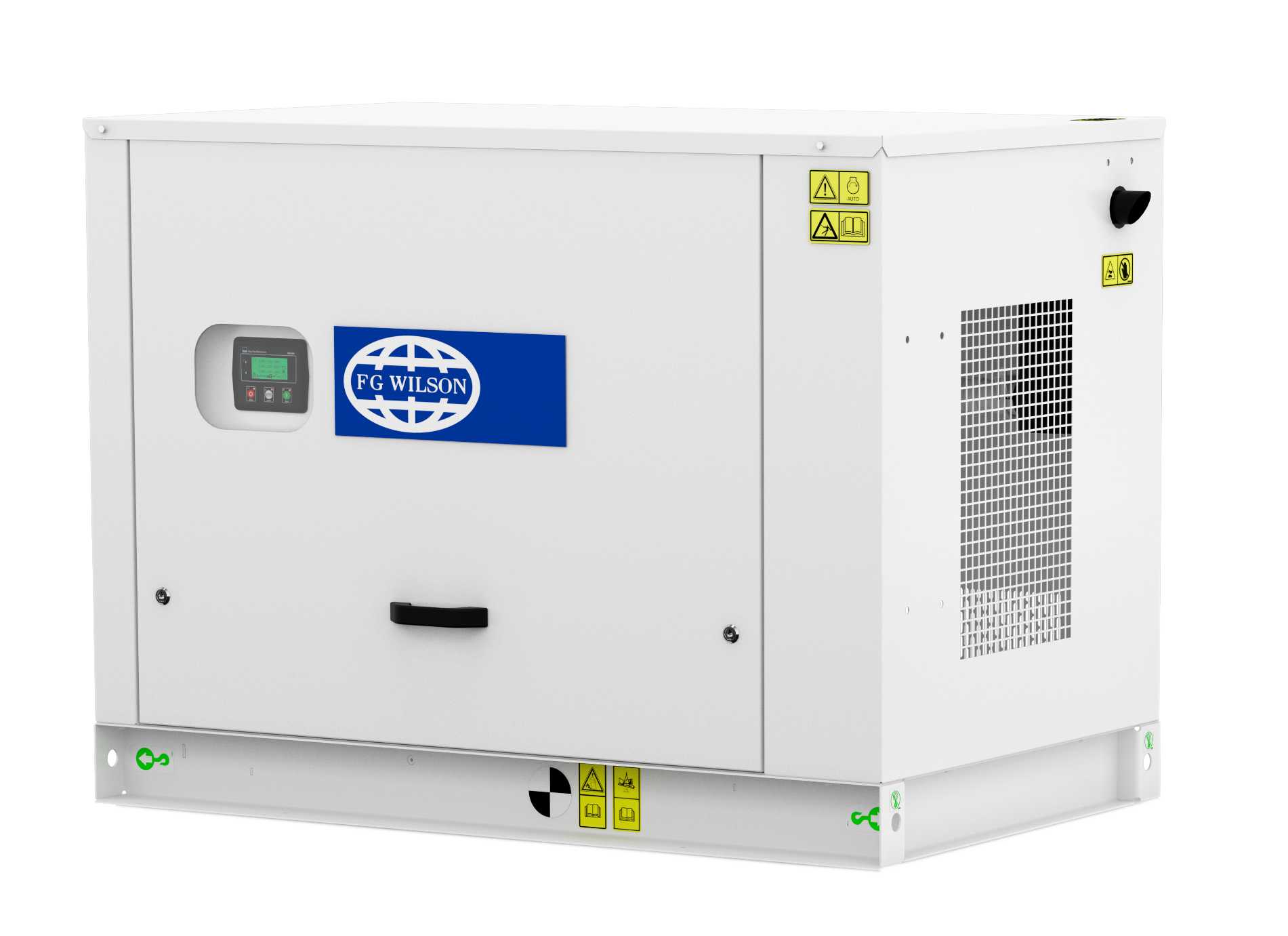

FG Wilson P9.5-1 Diesel Generator
- Price: On Request
- Condition: New
- Stock: Contact us for Availability.
- Stock Number: P9.5-1
FG Wilson P9.5-1 Diesel Generator

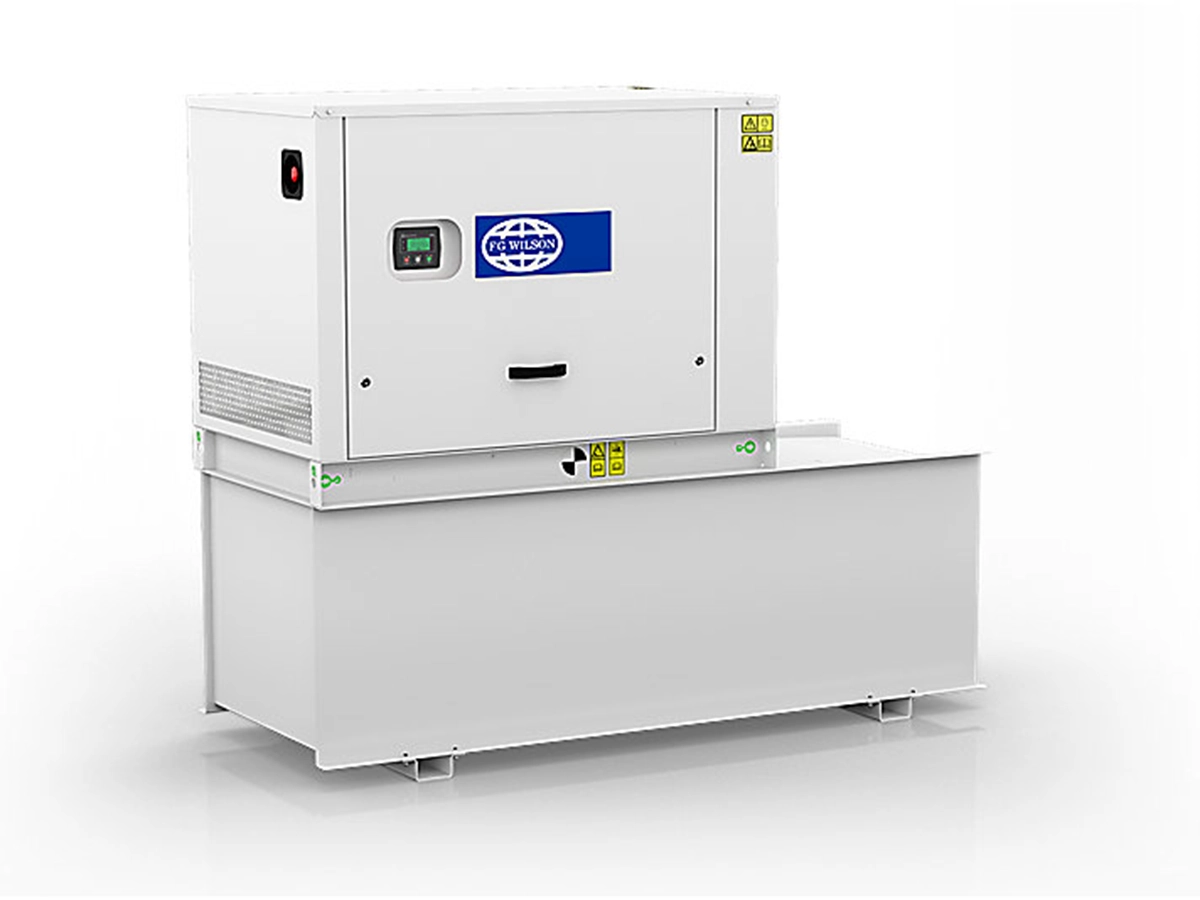

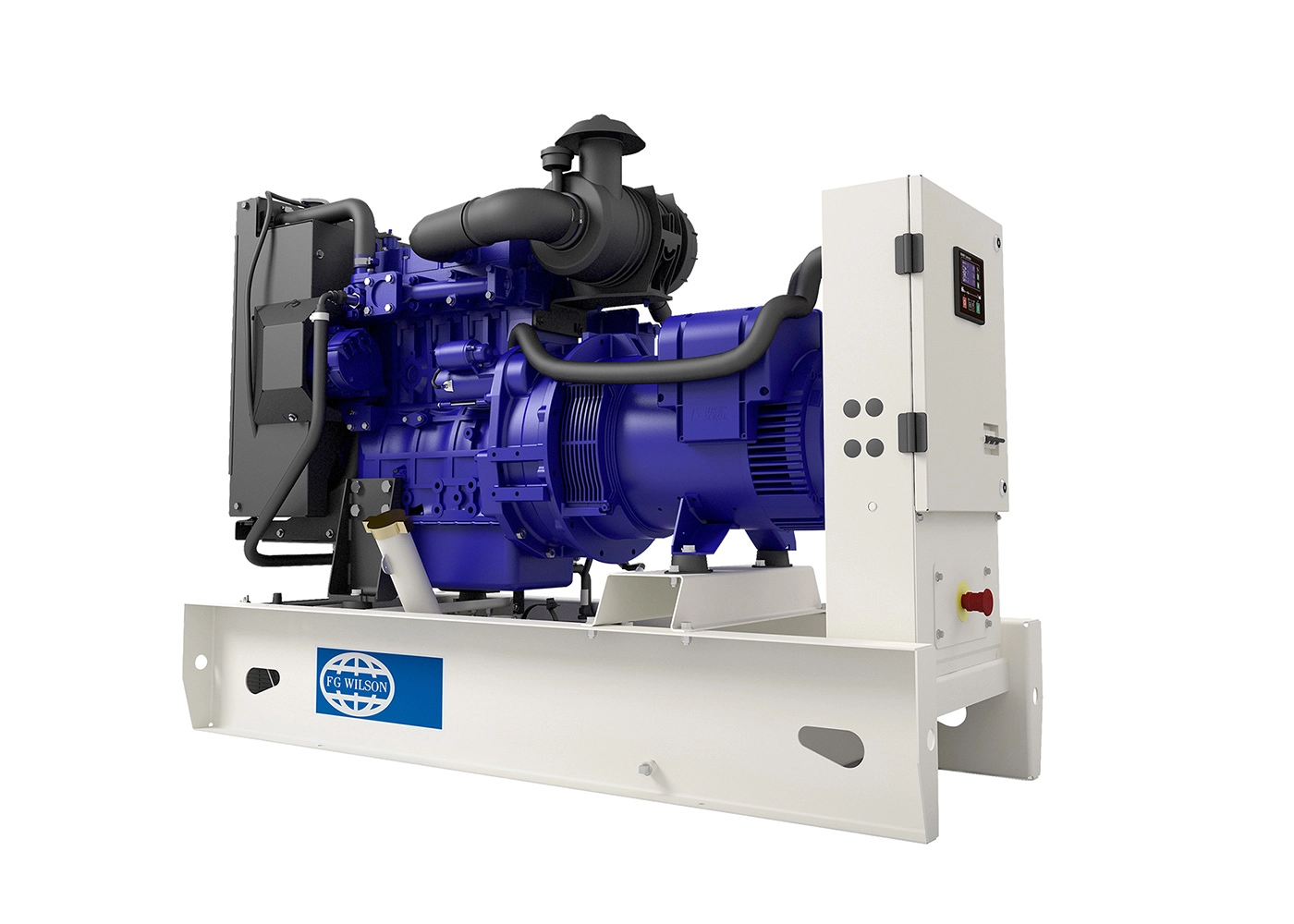

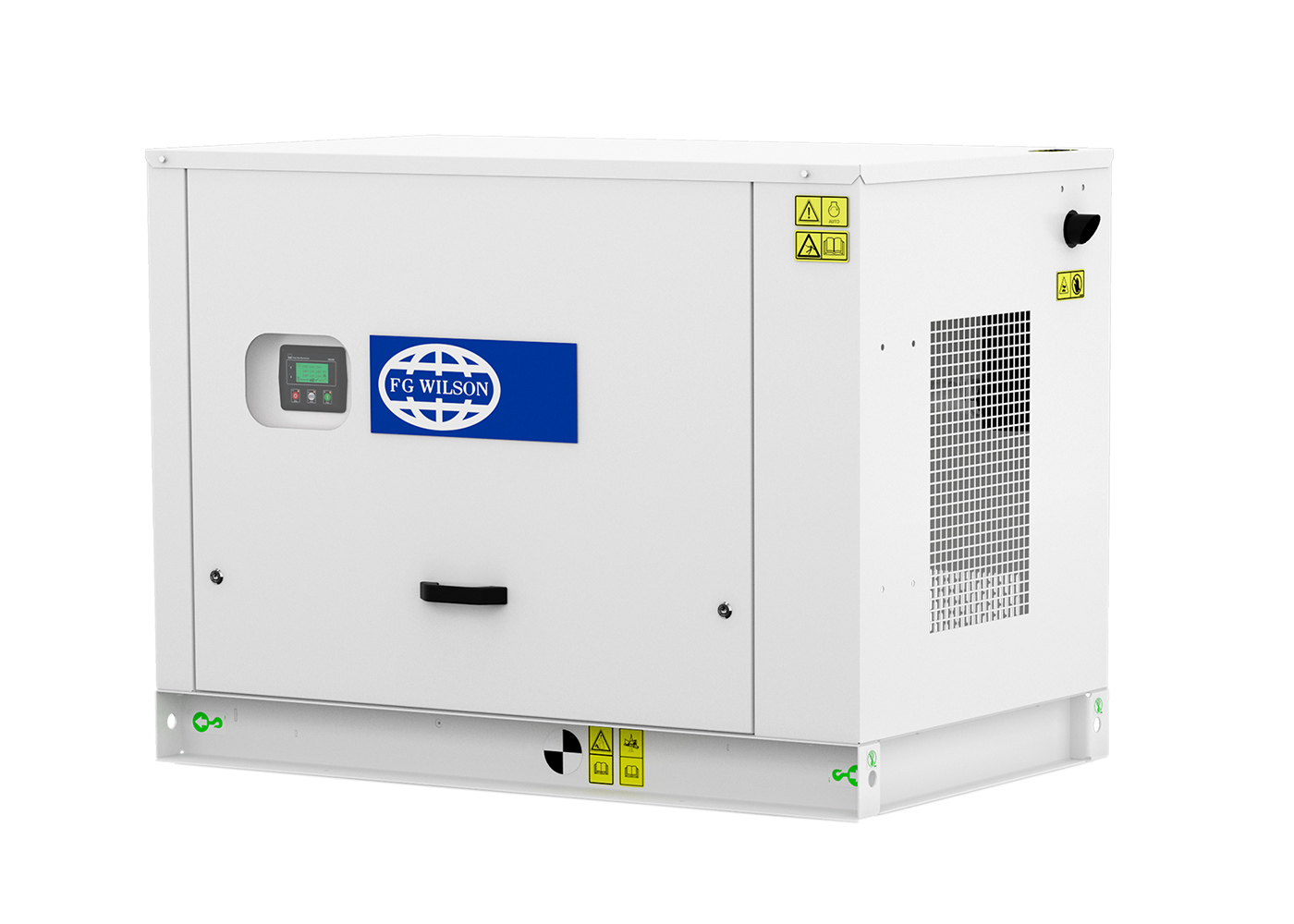

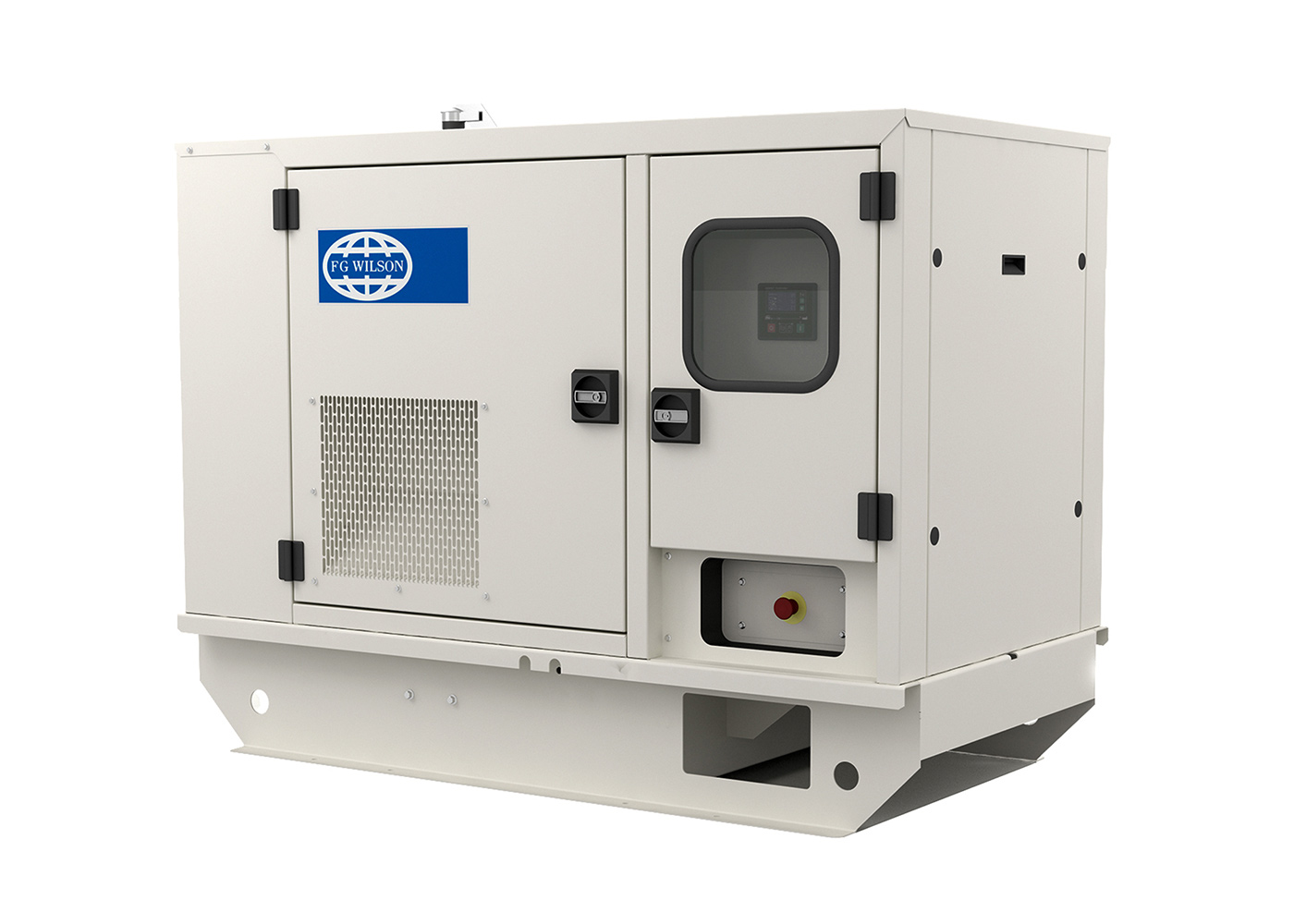

The standard spec P9.5-1 generator is 9.5 kVA, 7.6 kW powered by the ultra-reliable Perkins 403A-11G1 engine and is coupled to a FG Wilson FGL10020 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a FG Wilson FG100 control panel and is available as an open set or with a choice of canopy. Suitable for construction site cabins, residential properties, small retail shops and telecommunications.
The FG Wilson P9.5-1 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
SPARE PARTS | SERVICING | 01953 458976
- Technical Data
Manufacturer FG Wilson Standby 9.5 kVA / 7.6 kW Prime 8.5 kVA / 6.8 kW Engine Perkins - 403A-11G1 Alternator FG Wilson - FGL10020 Voltage 230 V Current 50.0 A Frequency 50 Hz Control Panel FG Wilson - FG100 Emissions Fuel Optimised - Downloadable Documents
Datasheet: Open Set P9.5-1 Datasheet Datasheet: Enclosures Datasheet: FG Wilson FGL10020 Alternator Datasheet Datasheet: Perkins 403A-11G1 Engine Datasheet Datasheet: FG Wilson FG100 Control Panel Datasheet Manual: Operators Manual Manual: Technical Manual Manual: FGL10020 Alternator Manual Manual: Engine Manual Manual: FG100 Control Panel Manual Stuart Group Brochure
