FG Wilson EU Stage V PRO20-4 Diesel Generator
- Price From: £11,985.00 Excl. VAT
- Condition: New
- Stock: 20 Unit/s in Stock
- Stock Number: PRO20-4
FG Wilson EU Stage V PRO20-4 Diesel Generator

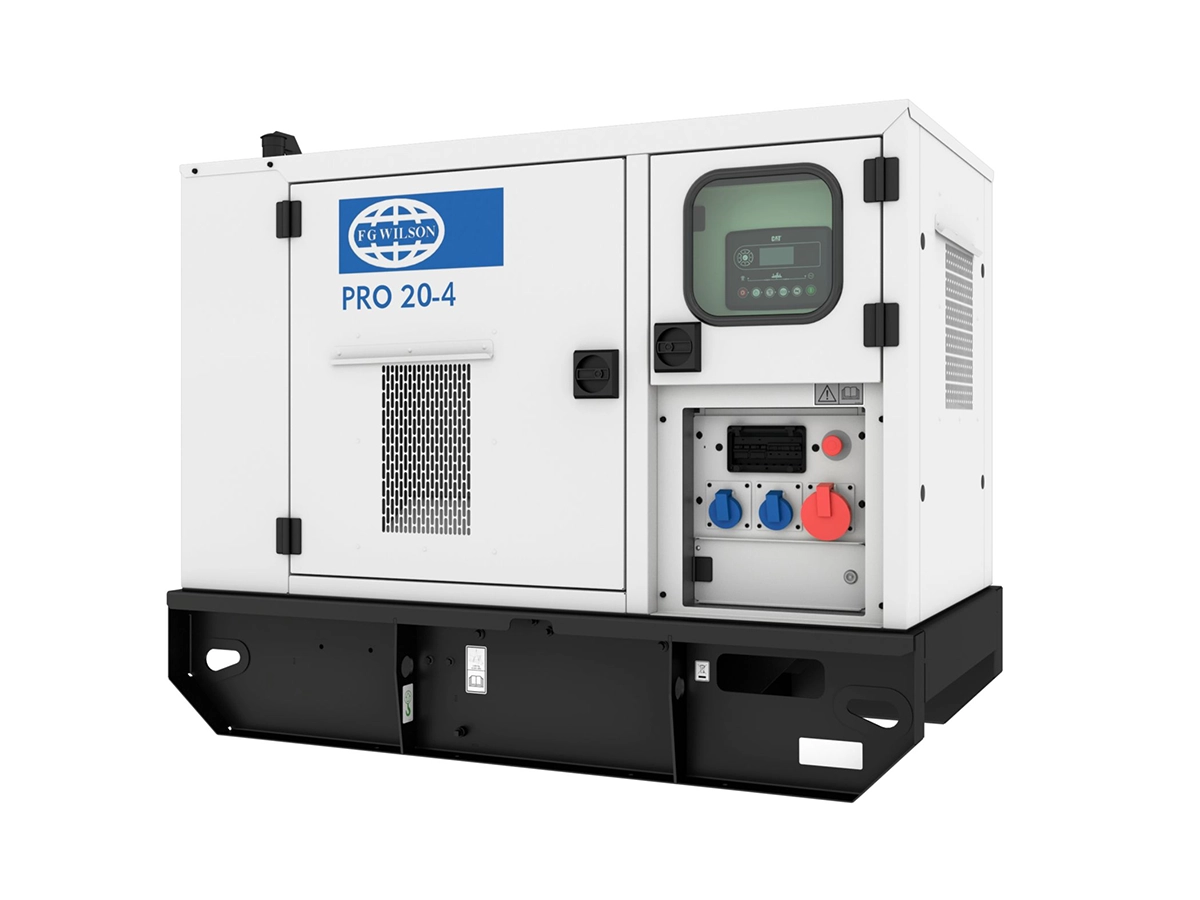

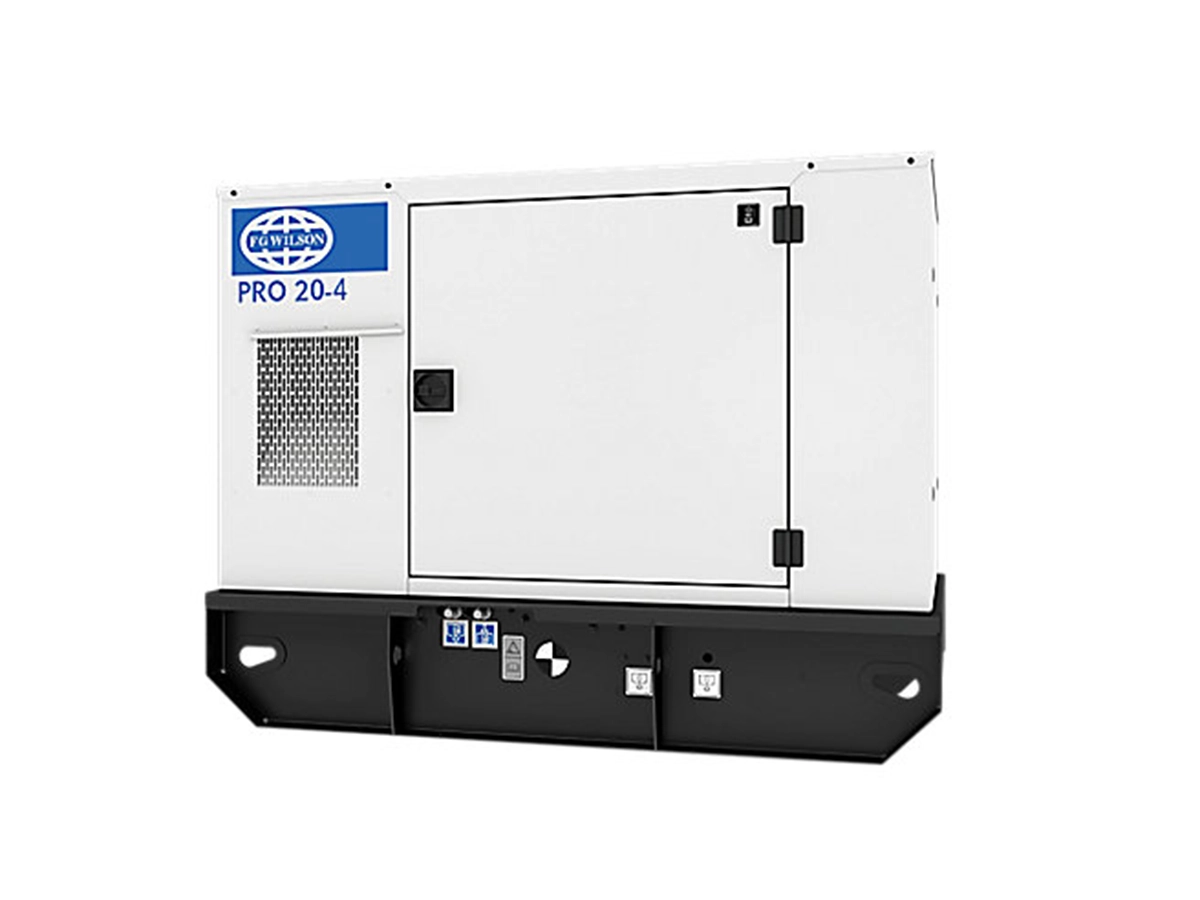

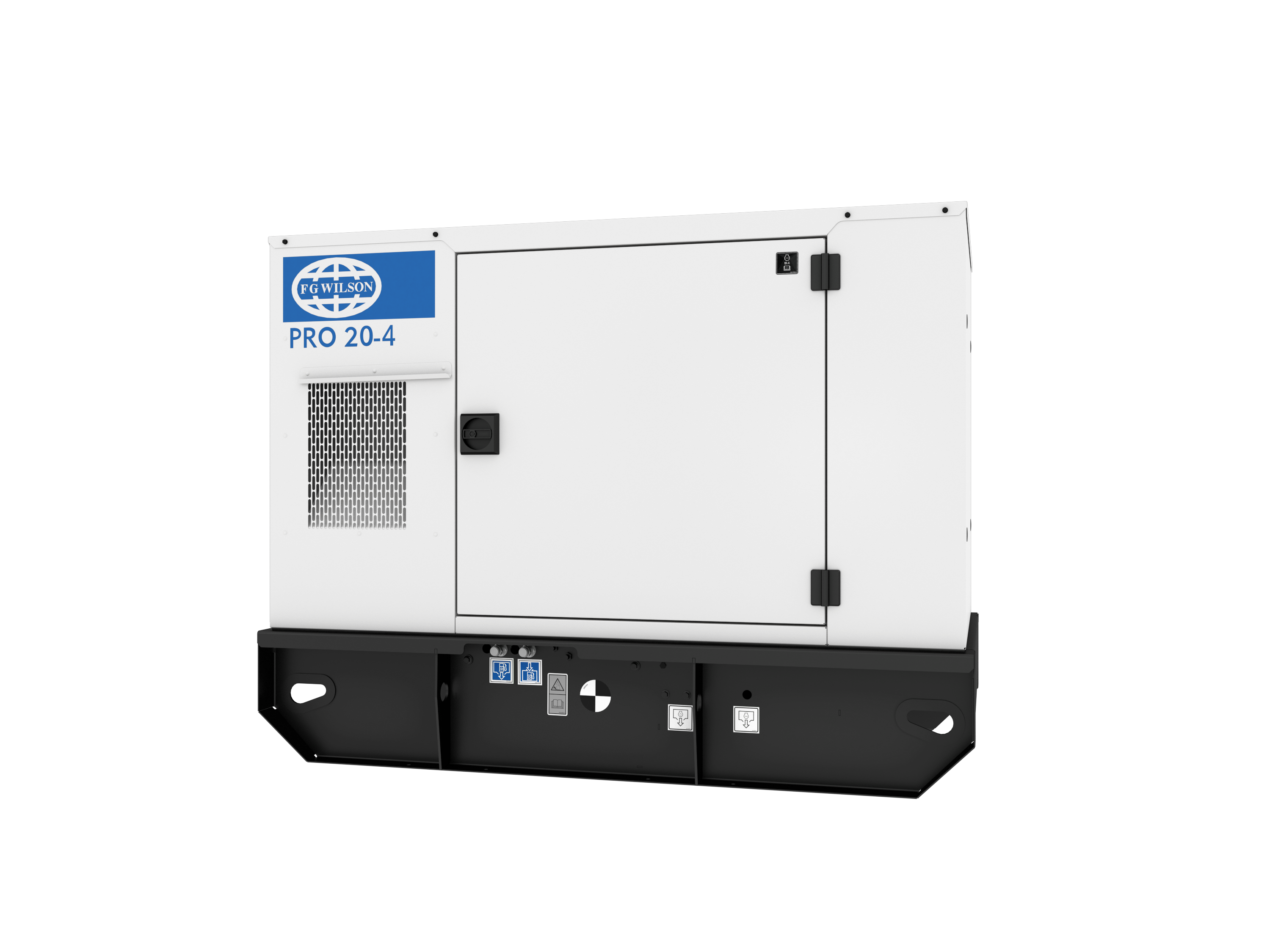

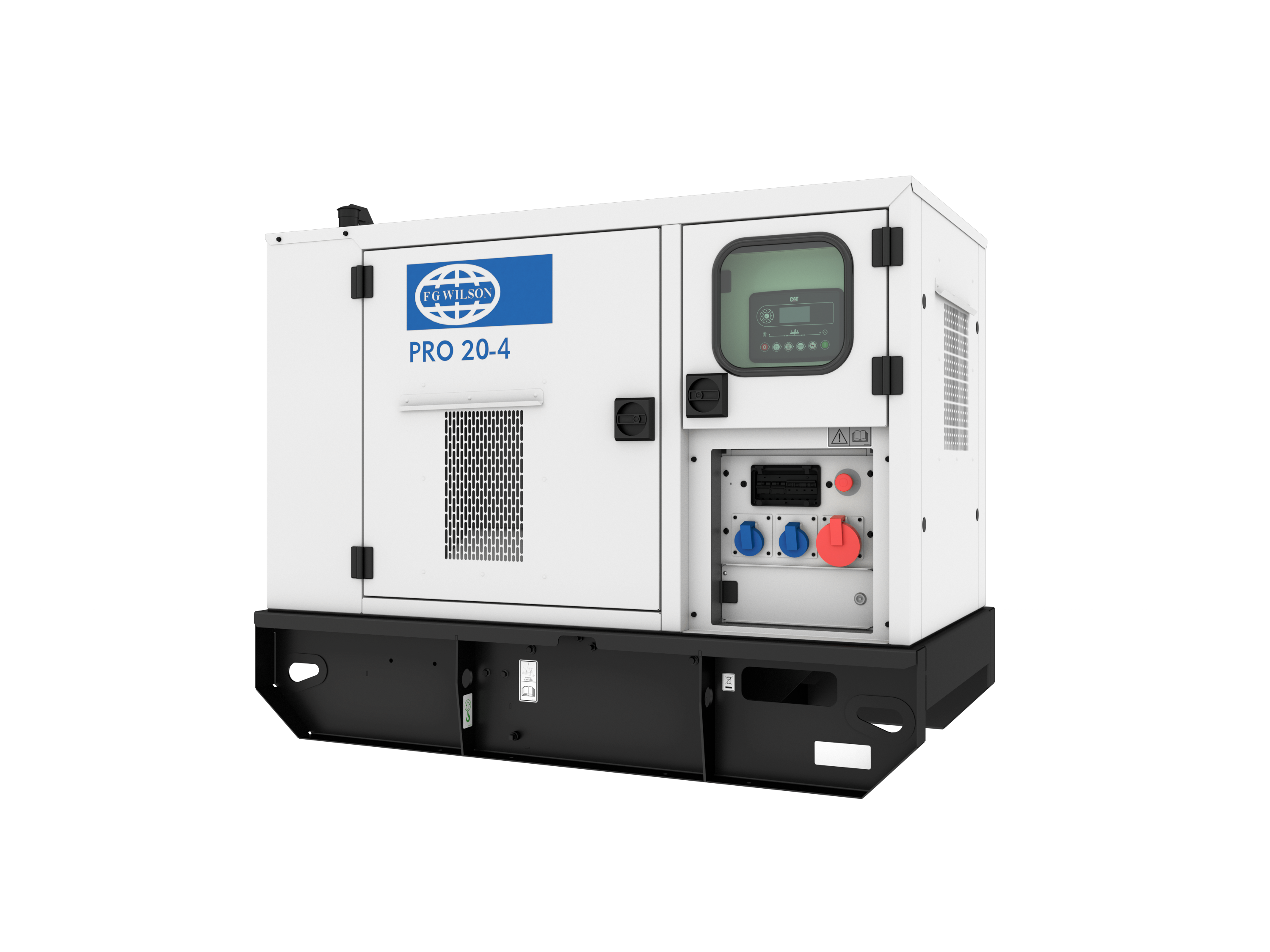

The standard spec PRO20-4 generator is 20 kVA, 16 kW powered by the ultra-reliable Perkins 404J-22G engine and is coupled to a Leroy Somer LL1114M 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea 6320 control panel. Stage V FG Wilson PRO are reduced emission generators that comply with EU Stage V Emissions Regulations.
The FG Wilson PRO20-4 diesel generator is complete with 1 year warranty on prime units and 2 year warranty on standby.
SPARE PARTS | ACCESSORIES | SERVICING | 01953 458976
- Technical Data
Manufacturer FG Wilson - PRO20-4 Standby 20.0 kVA / 16.0 kW Prime 20.0 kVA / 16.0 kW Phase Three-Phase Engine Perkins - 404J-22G Alternator Leroy Somer - LL1114M Voltage 400/230 V Frequency 50 Hz Enclosure PRO Canopy Control Panel Deep Sea - DSE 6320 Emissions EU Stage V Compliant - Dimensions
Length 1,718 mm Width 918 mm Height 1,300 mm Weight 745.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: PRO 20 Open Set Datasheet: Leroy Somer LL1114M Alternator Datasheet: Perkins 404J-22G Engine Manual: Operators Manual Manual: Technical Manual Manual: Leroy Somer LL1114M Alternator Manual Manual: Perkins 404J-22G Engine Stuart Group Brochure
