FG Wilson P13.5-6 Diesel Generator
3 Images
- Price From: £6,510.00 Excl. VAT
- Condition: New
- Stock: 1 Unit/s in Stock
- Stock Number: P13.5-6-CALGL2H

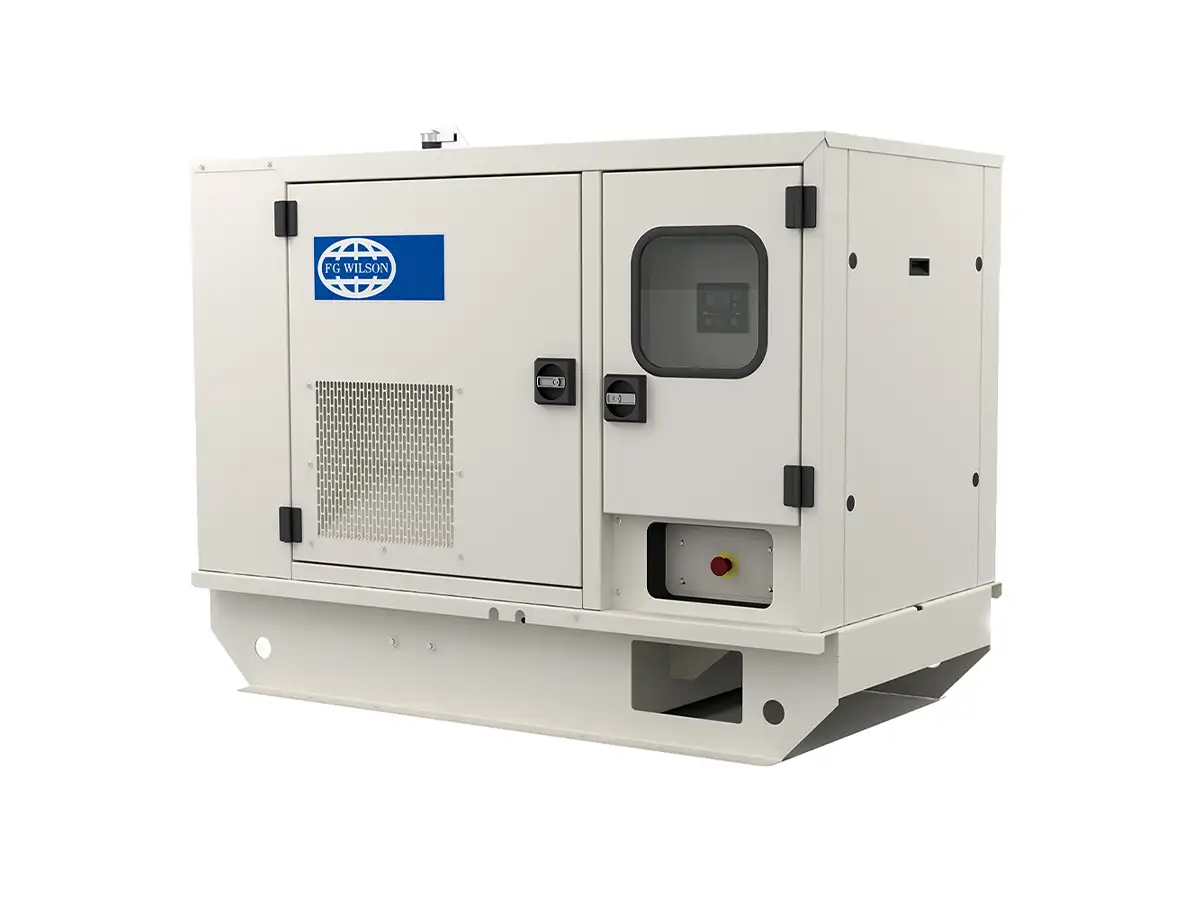

FG Wilson P13.5-6 Diesel Generator
The FG Wilson P13.5-6 generator 13.5 kVA, 10.8 kW is powered by the ultra-reliable Perkins 403D-15G engine and is coupled to a Leroy Somer LL1114D 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea 4520 control panel and has a CALGL2H enclosure for reduced sound levels with a standard non-bunded fuel tank. Suitable for construction site cabins, residential properties, small retail shops and telecommunications.
The FG Wilson P13.5-6 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
SPARE PARTS | ACCESSORIES | SERVICING | 01953 458976
- Technical Data
Manufacturer FG Wilson - P13.5-6 Standby 13.5 kVA / 10.8 kW Prime 12.4 kVA / 9.9 kW Phase Three-Phase Engine Perkins - 403D-15G Alternator Leroy Somer - LL1114D Voltage 400/230 V Frequency 50 Hz Enclosure CALGL2H Control Panel Deep Sea - DSE4520 Emissions EUIIIA Compliant - Dimensions
Length 1,755 mm Width 935 mm Height 1,055 mm Weight 468.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P13.5-6 Datasheet: CALGL2H Enclosure Datasheet: Leroy Somer LL1114D Alternator Datasheet: Perkins 403D-15G Engine Datasheet: Deep Sea 4520 Control Panel Manual: Perkins 403D-15G Engine Manual: FG Wilson P13.5-6 Operators Manual: FG Wilson P13.5-6 Technical Stuart Group Brochure
