- Price From: £7,857.00 Excl. VAT
- Condition: New
- Stock: 3 Unit/s in Stock
- Stock Number: P33-3U-CALGL2H LSA BFT CON

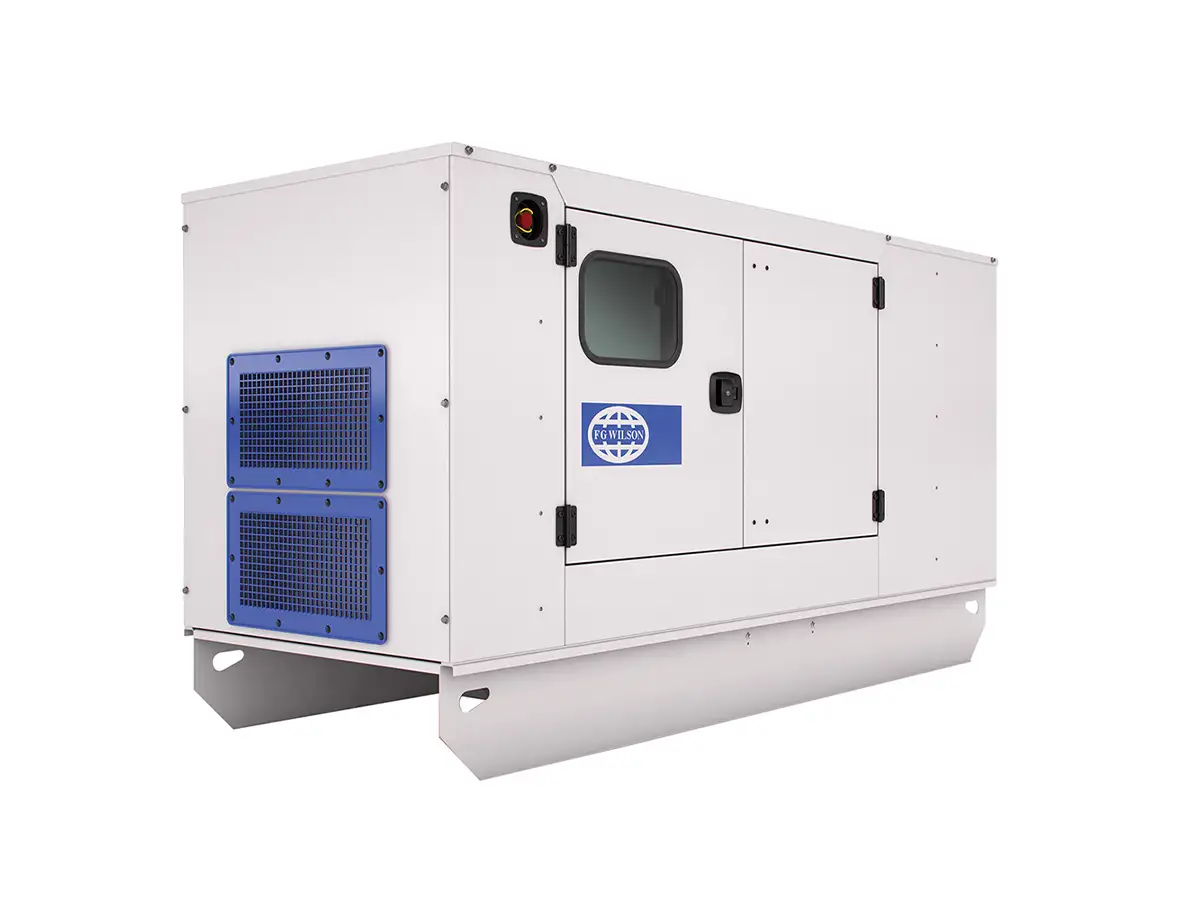

FG Wilson P33-3U Diesel Generator LSA Bund Connect
The FG Wilson P33-3U generator 33 kVA, 26.4 kW is coupled to a Leroy Somer LL1514F 400/230 volts, 50 Hz alternator and is powered by the ultra-reliable Perkins 1103A-33G1 engine to provide prime or standby power. The generator is controlled by a Deep Sea 4520 control panel and has a CALGL2H enclosure for reduced sound levels. This unit also features a bunded fuel tank and FG Wilson Connect which enables remote monitoring and control of the generator set. The P33-3U is suitable for construction site cabins, residential properties, small retail shops and telecommunications.
The FG Wilson P33-3U diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
- Technical Data
Manufacturer FG Wilson - P33-3U Standby 33.0 kVA / 26.4 kW Prime 30.0 kVA / 24.0 kW Phase Three-Phase Engine Perkins - 1103A-33G1 Alternator Leroy Somer - LL1514F Voltage 400/230 V Frequency 50 Hz Enclosure CALGL2H Control Panel Deep Sea - DSE 4520 Emissions Fuel Optimised - Dimensions
Length 1,864 mm Width 932 mm Height 1,236 mm Weight 789.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P33-3U Datasheet: CALGL2H Enclosure Datasheet: Leroy Somer LL1514F Alternator Datasheet: Perkins 1103A-33G1 Engine Datasheet: Deep Sea 4520 Control Panel Manual: Perkins 1103A-33G1 Engine Manual: FG Wilson P33-3 Operators Manual: FG Wilson P33-3 Technical Stuart Group Brochure
