FG Wilson P250-5 Diesel Generator
- Price: On Request
- Condition: New
- Stock: Contact us for Availability.
- Stock Number: P250-5
FG Wilson P250-5 Diesel Generator

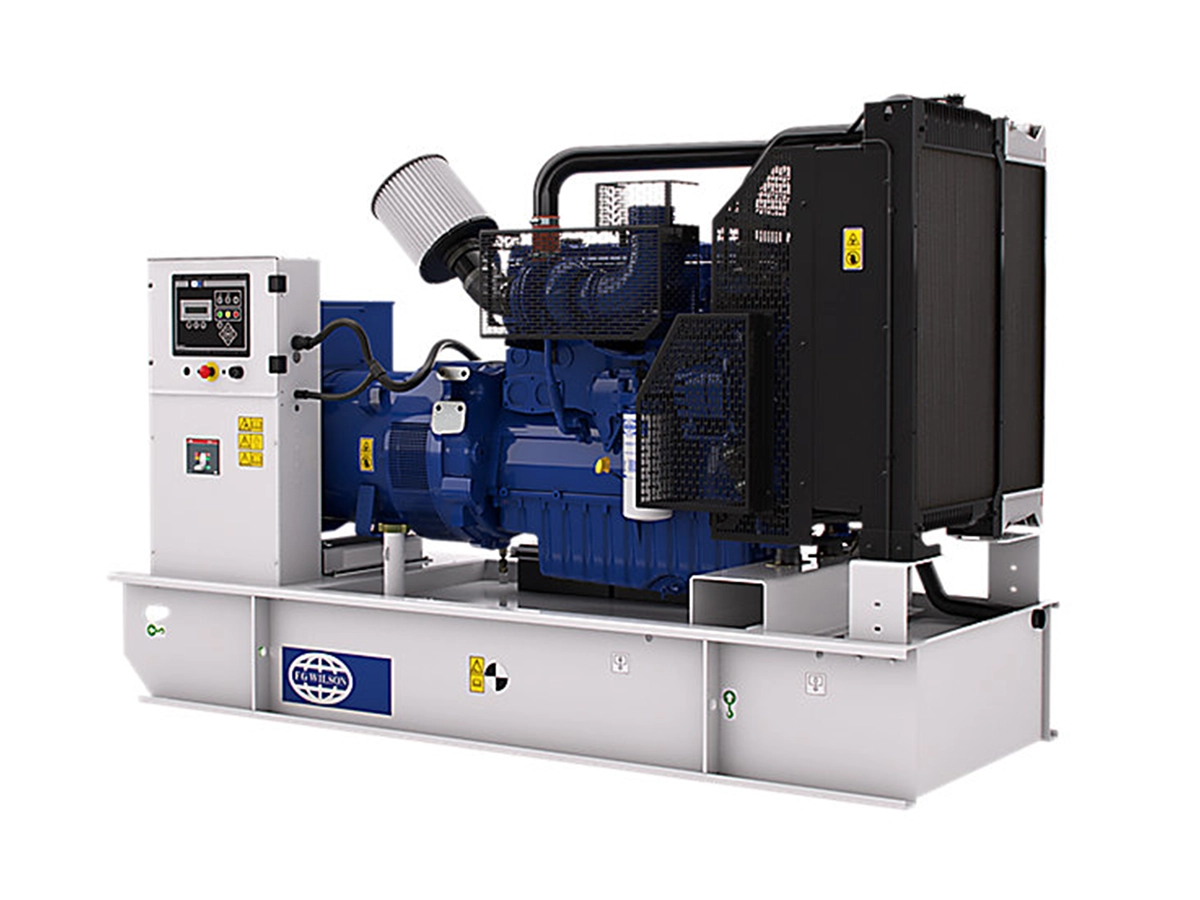

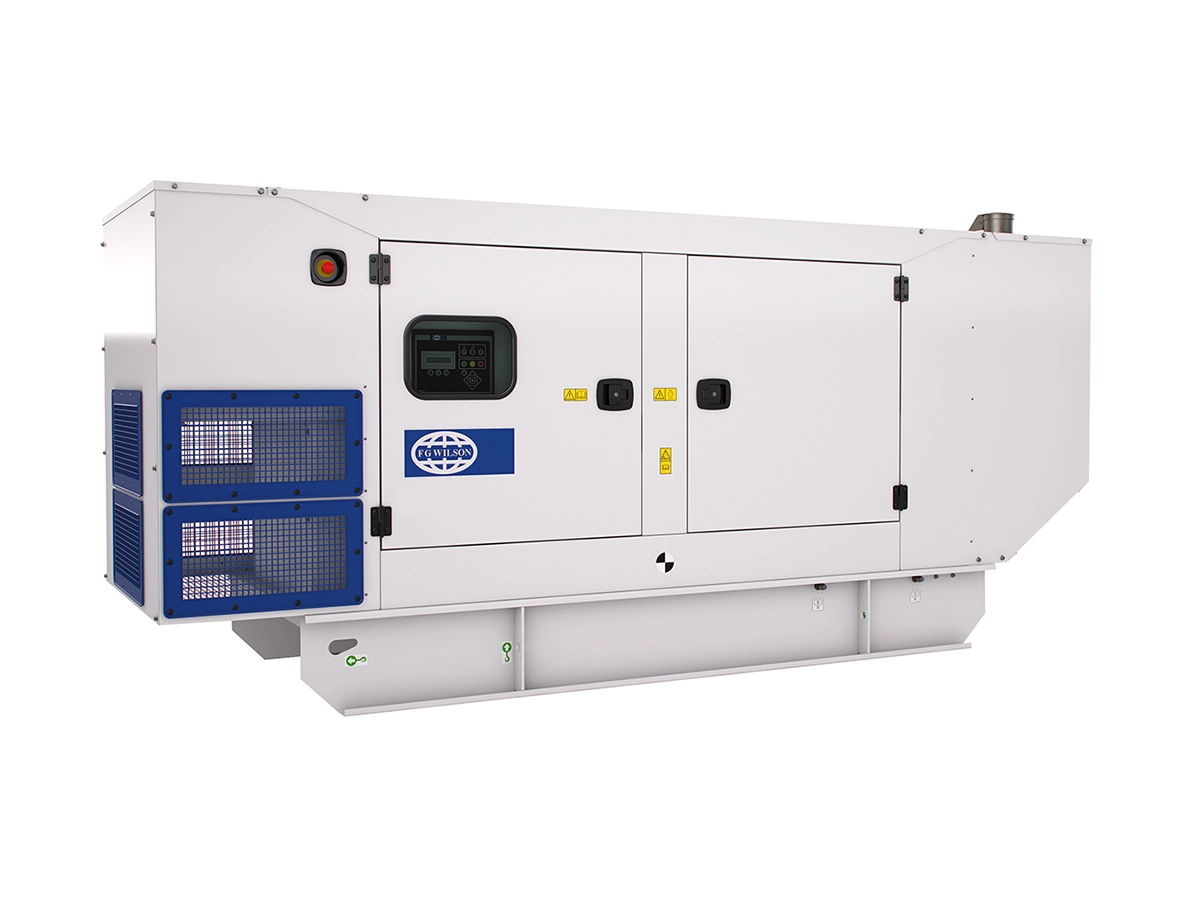

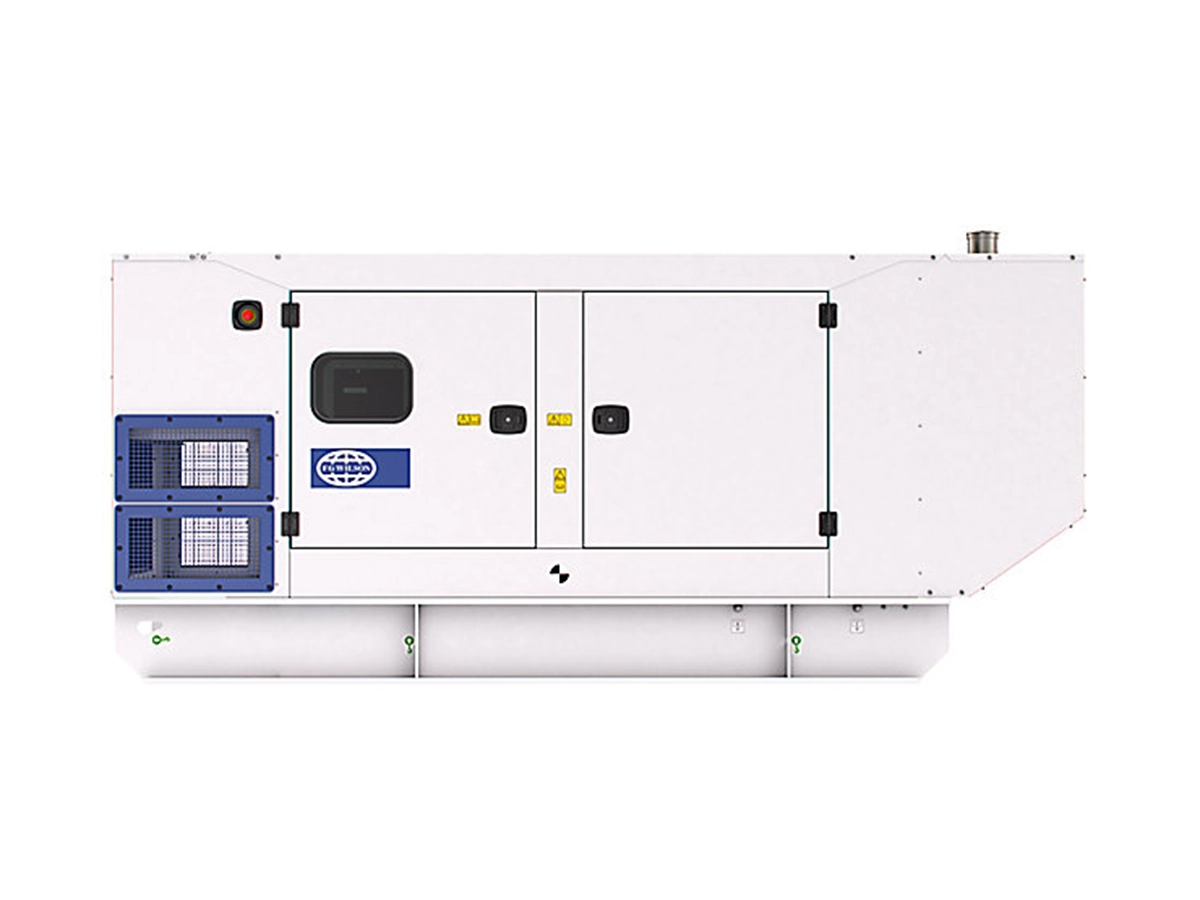

The standard spec P250-5 generator is 250 kVA, 200 kW powered by the ultra-reliable Perkins 1506A-E88TAG2 engine and is coupled to a Leroy Somer LL5114H 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a DSE7410 control panel and is available as an open set or with a choice of canopy. Suitable for outdoor events, agricultural companies and remote industrial facilities.
The FG Wilson P250-5 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
SPARE PARTS | SERVICING | 01953 458976
- Technical Data
Manufacturer FG Wilson Standby 250.0 kVA / 200.0 kW Prime 230.0 kVA / 184.0 kW Engine Perkins - 1506A-E88TAG2 Alternator Leroy Somer - LL5114H Voltage 230 V Frequency 50 Hz Control Panel Deep Sea - DSE7410 Emissions Fuel Optimised - Downloadable Documents
Datasheet: Open Set P250-5 Datasheet Datasheet: FG Wilson P250-5 Enclosure Datasheet Datasheet: Leroy Somer LL5114H Alternator Datasheet Datasheet: Perkins 1506A-E88TAG2 Engine Datasheet Datasheet: Deep Sea DSE7410 Control Panel Datasheet Manual: Operators Manual Manual: Technical Manual Manual: Engine Manual Manual: Leroy Somer L5114H Alternator Manual Manual: DSE7410MKII Control Panel Manual Stuart Group Brochure
