- Price From: £6,806.00 Excl. VAT
- Condition: New
- Stock: Contact us for Availability.
- Incoming Stock: 2 Unit/s Due In Jun 2026
- Stock Number: P16-1-CALGL2H CON

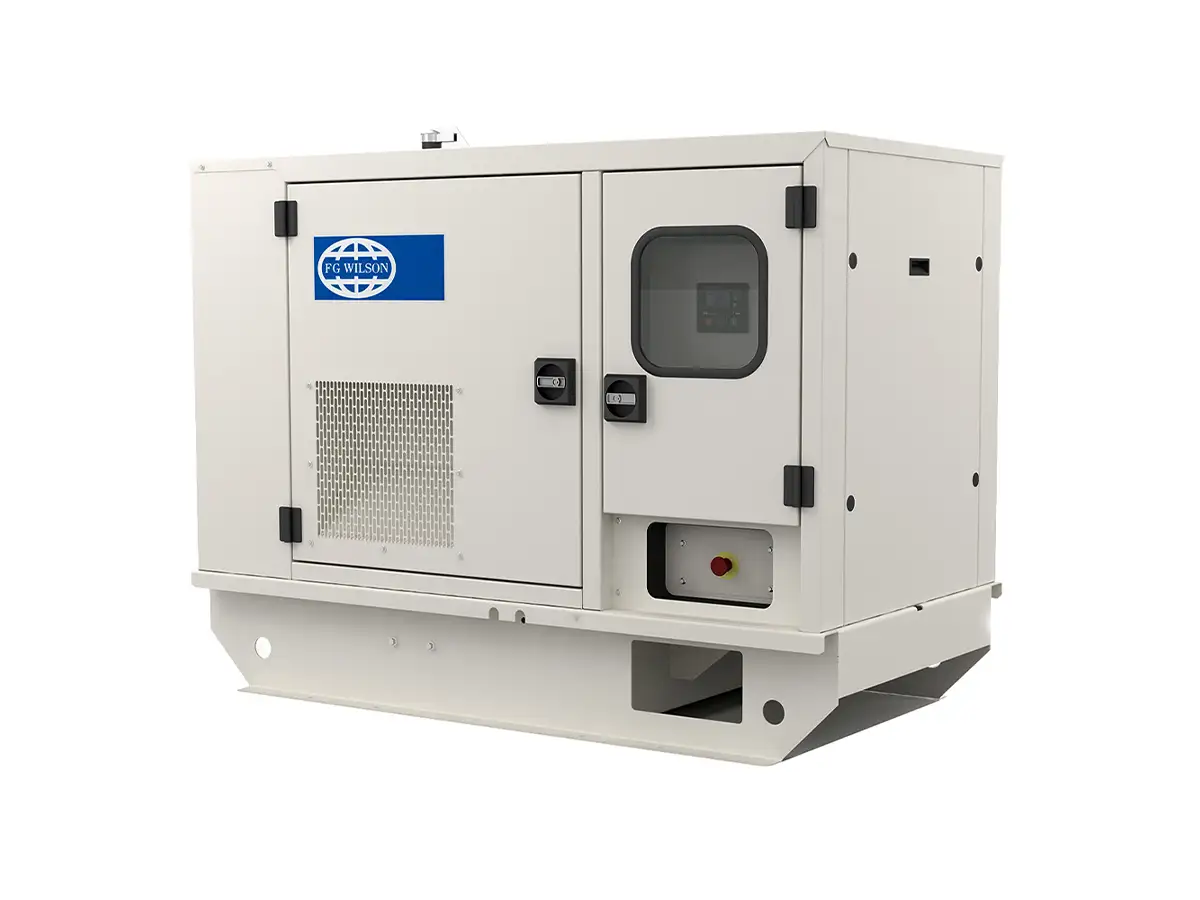

FG Wilson P16-1 Diesel Generator Connect
The FG Wilson P16-1 generator 16 kVA, 12.8 kW is powered by the ultra-reliable Perkins 403A-15G2 engine and is coupled to a Leroy Somer LL1114M 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea 4520 control panel and has a CALGL2H enclosure for reduced sound levels with a standard non-bunded fuel tank. Complete with the FG Wilson Connect which enables remote monitoring and control of the generator set. Suitable for construction site cabins, residential properties, small retail shops and telecommunications.
The FG Wilson P16-1 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
- Technical Data
Manufacturer FG Wilson - P16-1 Standby 16.0 kVA / 12.8 kW Prime 14.5 kVA / 11.6 kW Phase Three-Phase Engine Perkins - 403A-15G2 Alternator Leroy Somer - LL1114M Voltage 400/230 V Frequency 50 Hz Enclosure CALGL2H Control Panel Deep Sea - DSE 4520 Emissions Fuel Optimised - Dimensions
Length 1,755 mm Width 935 mm Height 1,055 mm Weight 495.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P16-1 Datasheet: CALGL2H Enclosure Datasheet: Leroy Somer LL1114M Alternator Datasheet: Perkins 403A-15G2 Engine Datasheet: Deep Sea 4520 Control Panel Manual: Perkins 403A-15G2 Engine Manual: FG Wilson P16-1 Operators Manual: FG Wilson P16-1 Technical Stuart Group Brochure
