Used Godwin HL125M Pump XSP9755
Used Godwin HL125M high head pump complete with 150mm female Bauer suction and 100mm flanged delivery branches.
Close coupled to a Perkins engine, water cooled, key start diesel engine, mounted on a skid frame with sound attenuated enclosure.
It has a fuel capacity of 255 litres (approx) and solids handling to 35 mm.
The Godwin HL125M pump has flow capabilities to 250 m³/hr and discharge heads to 95 metres.
Warranty: 30 days or 250 hours, whichever first
Disclaimer:

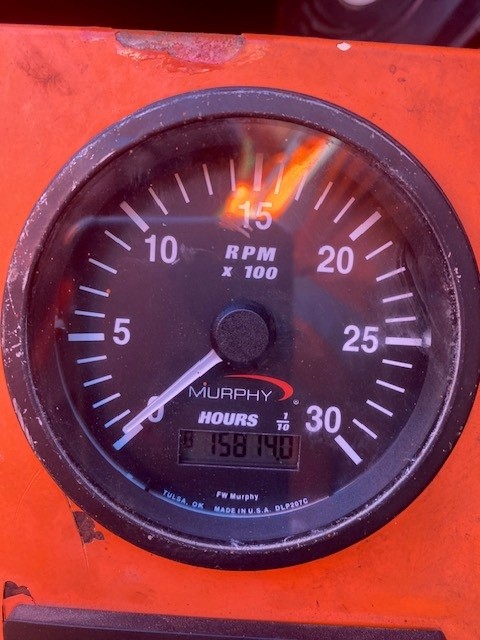

Hour meter readings are shown for guidance only and cannot be guaranteed.
Purchasers should satisfy themselves as to the condition, usage and suitability of pre-owned equipment prior to purchase
- Technical Data
Condition Used Manufacturer Godwin Model / Part HL125M Max Flow 250.00 m³/hr Max Head 95.00 m Suction Size 6 inch (150 mm) Discharge Size 4 inch (100 mm) Solids Handling 35 mm Drive Perkins 1104D-E44TA Diesel Engine Hours 15,814 hrs Voltage 12 V - Dimensions
Length 2,900 mm Width 1,300 mm Height 1,800 mm Weight (Dry) 2150.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
