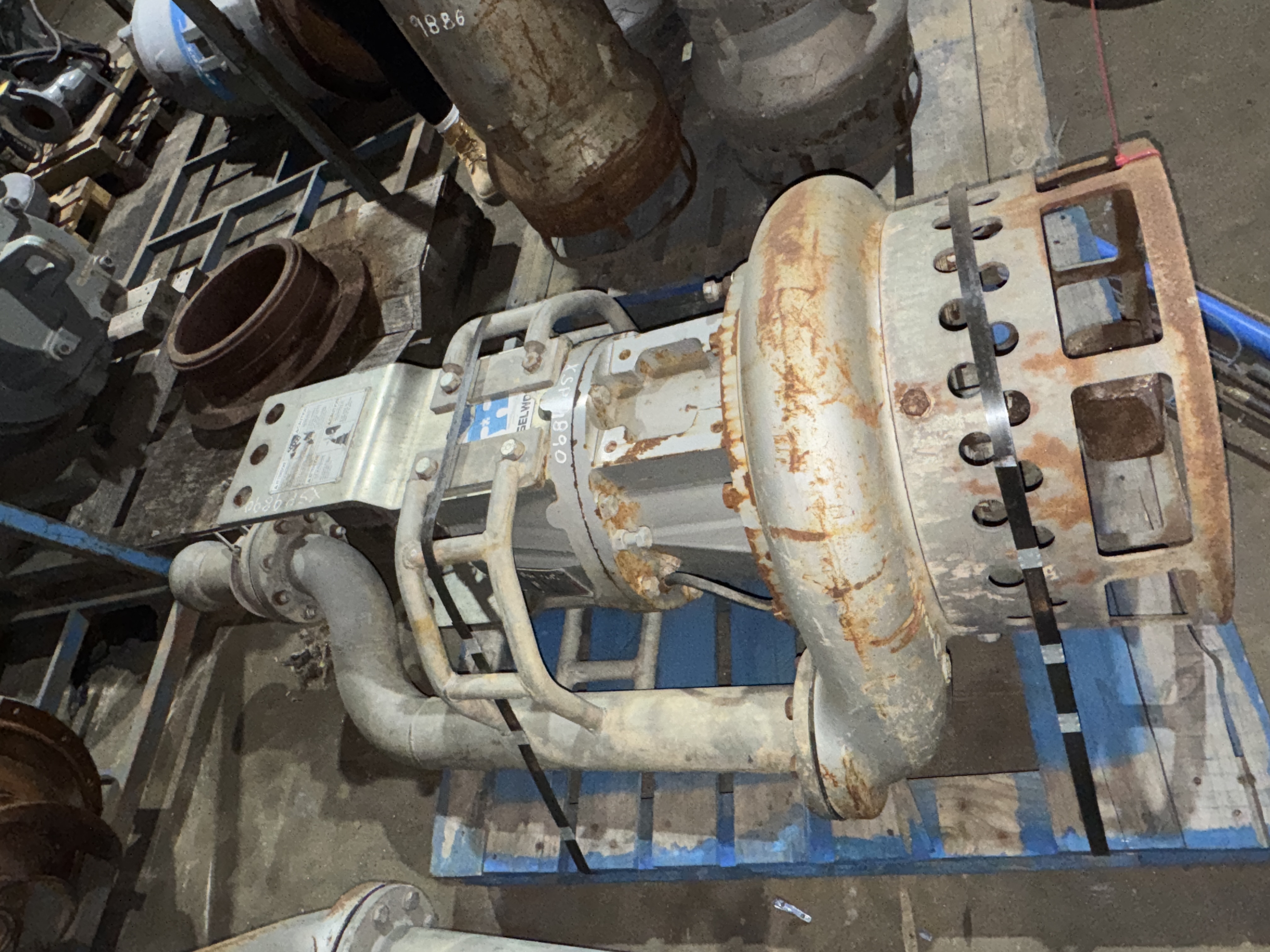

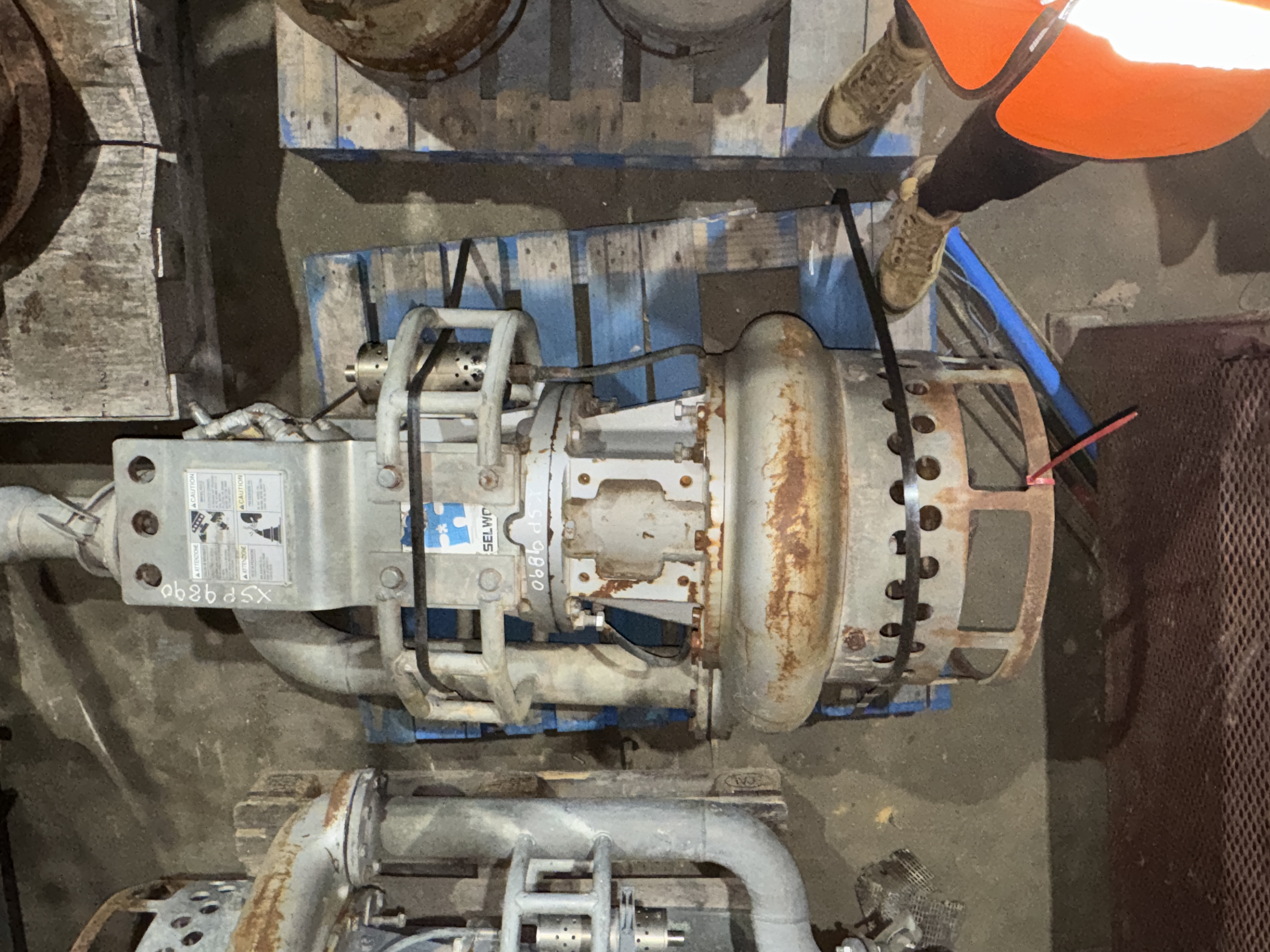

Used Dragflow HY35M-6HD Submersible Pump XSP9890

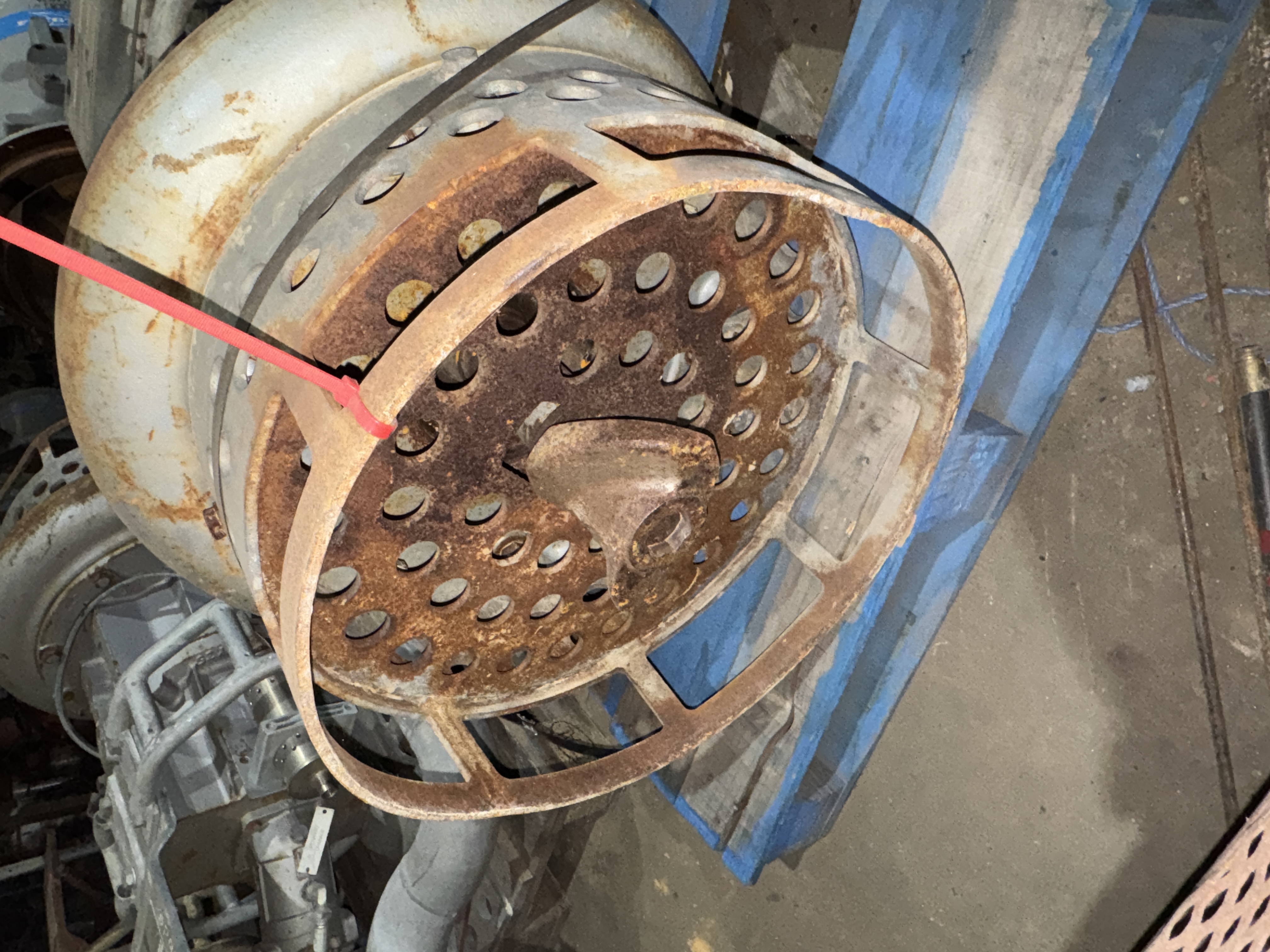

Used Dragflow HY35M-6HD Submersible Pump with 100mm outlet and steel impeller. Flow capabilities to 120 m³/hr and a max head to 30 metres. The pump is complete with a 50 Hz, 33 kW motor, 1180rpm and solids handling to 32mm

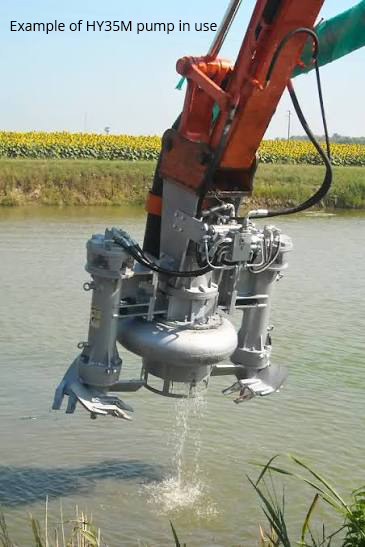

The HY35M is fitted to an excavator and is powered by the hammer circuit of the excavator. Therefore no hydraulic power pack and hoses are needed. (see attached photo of pump in use)
In stock - delivered nationwide from your nearest depot
Disclaimer:
Hour meter readings are shown for guidance only and cannot be guaranteed.
Purchasers should satisfy themselves as to the condition, usage and suitability of pre-owned equipment prior to purchase
- Technical Data
Condition Used Manufacturer Dragflow Model / Part HY35M-6HD Year of Manufacture 2017 Max Flow 120.00 m³/hr Max Head 30.00 m Discharge Size 4 inch (100 mm) Solids Handling 32 mm Drive Electric Motor Kilowatts 33.00 kW - Dimensions
Width 800 mm Height 1,450 mm Weight (Dry) 500.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
