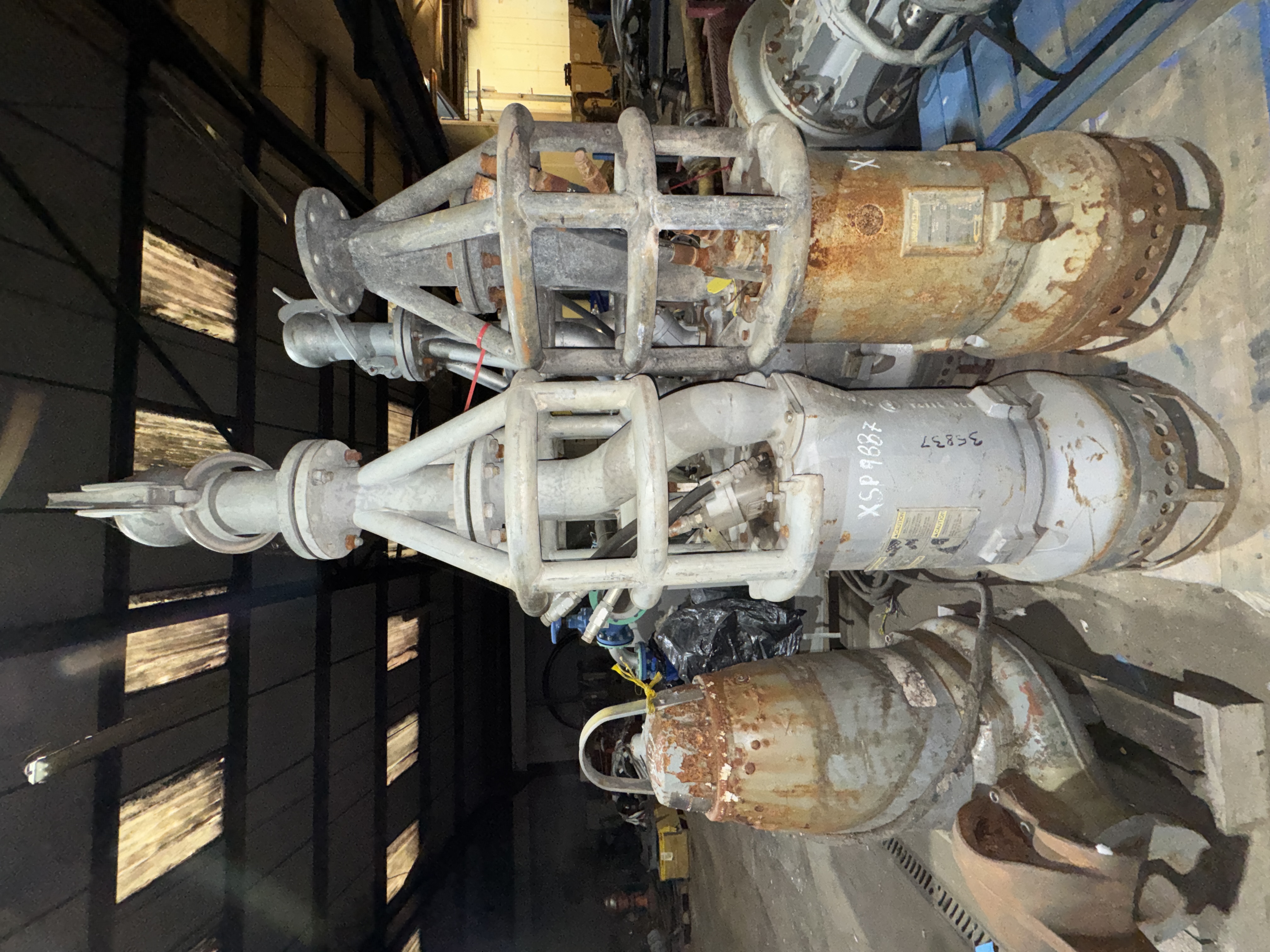

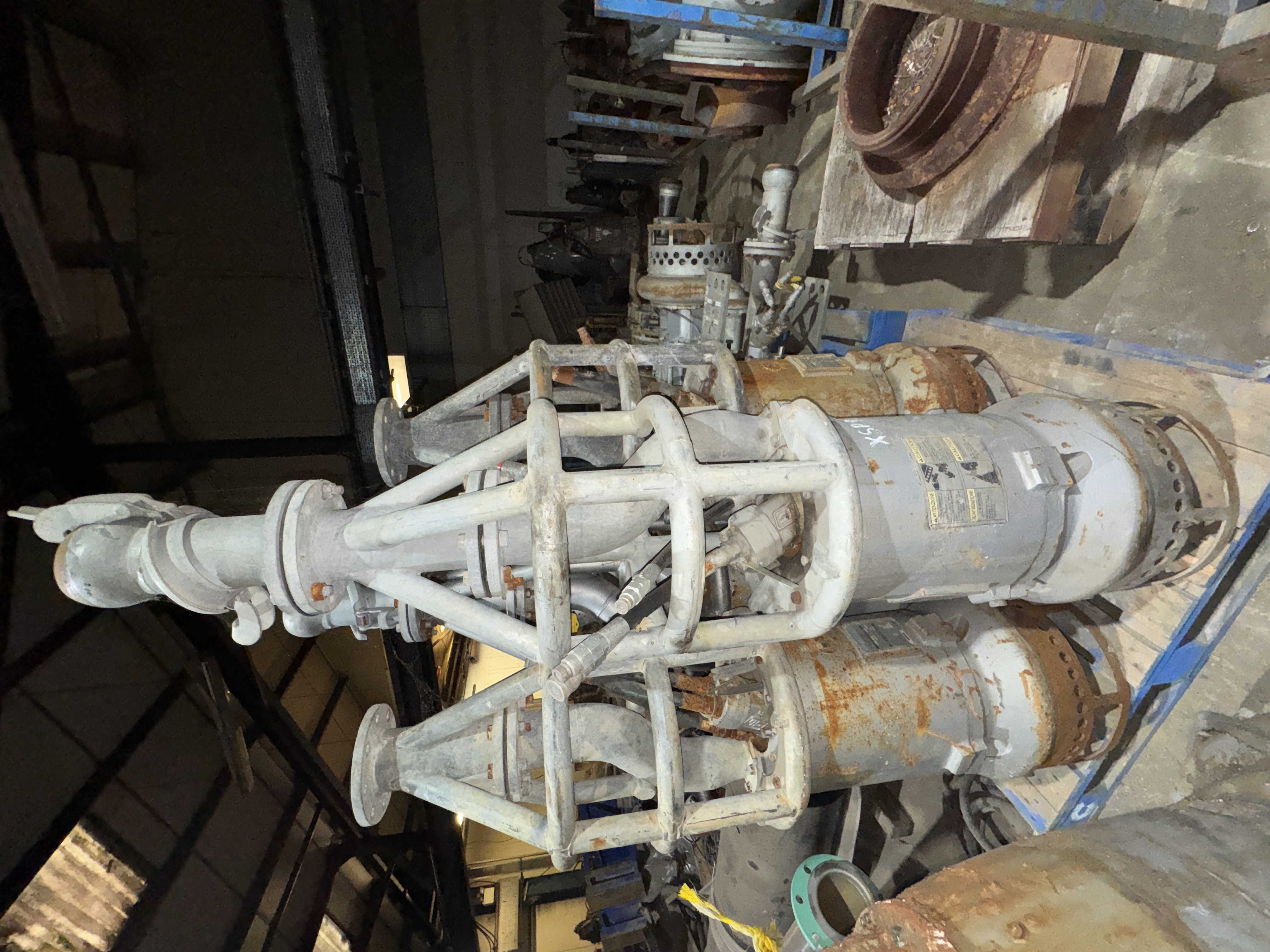

Used Dragflow HY24-30HD Submersible Pump XSP9887
Used Dragflow HY24-30HD Submersible Pump XSP9887
Used Dragflow HY24-30HD Submersible Pump with 100mm outlet and cast iron impeller. Flow capabilities to 80 m³/hr and a max head to 37 metres. The pump is complete with a 50 Hz, 20 kW motor, 2000rpm
Disclaimer:
Hour meter readings are shown for guidance only and cannot be guaranteed.
Purchasers should satisfy themselves as to the condition, usage and suitability of pre-owned equipment prior to purchase
- Technical Data
Condition Used Manufacturer Dragflow Model / Part HY24-30HD Year of Manufacture 2017 Max Flow 80.00 m³/hr Max Head 37.00 m Discharge Size 4 inch (100 mm) Solids Handling 20 mm Drive Electric Motor Kilowatts 20.00 kW - Dimensions
Width 500 mm Height 1,650 mm Weight (Dry) 220.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
