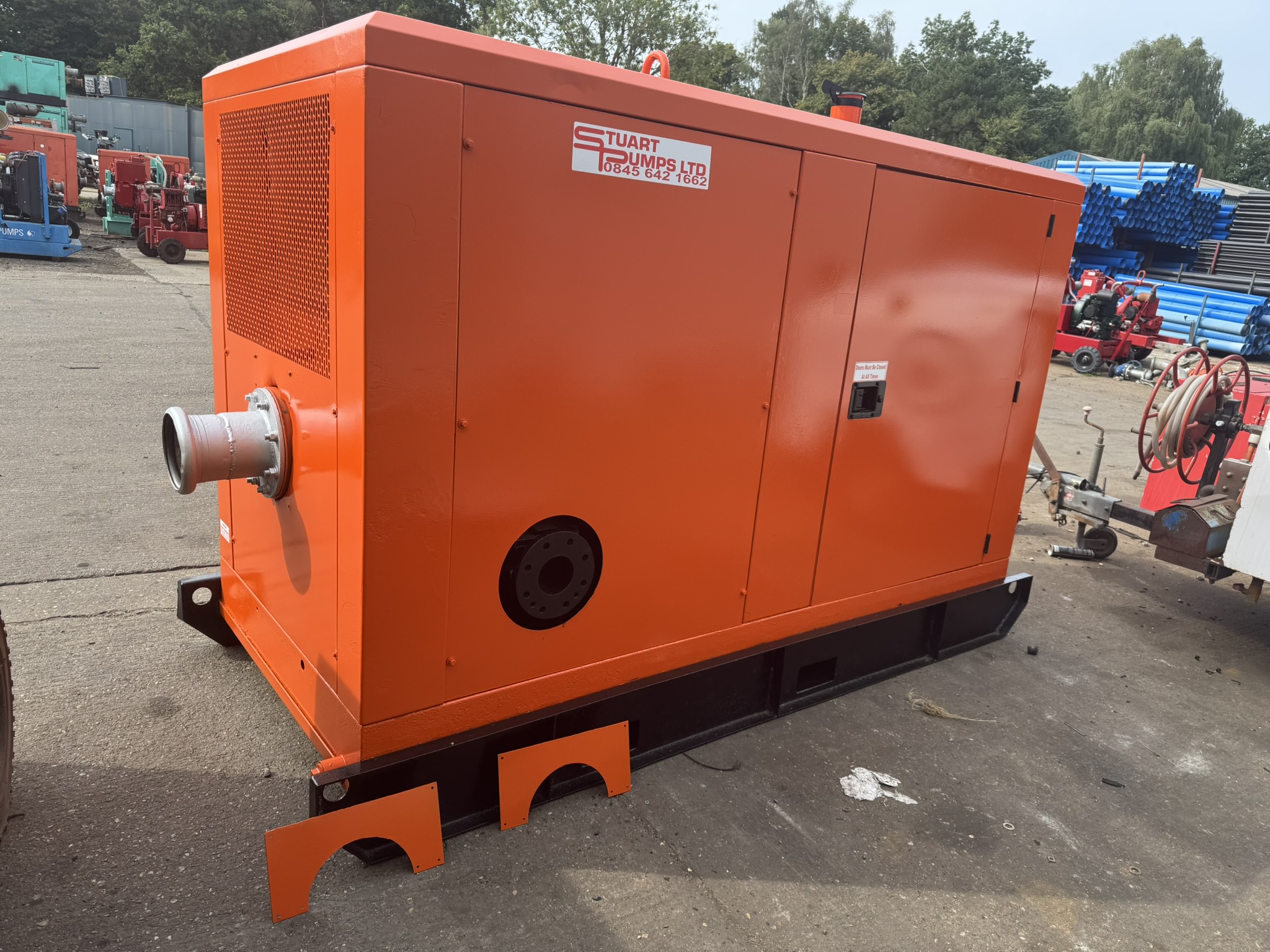

Used Godwin HL125 Pump XSP9755

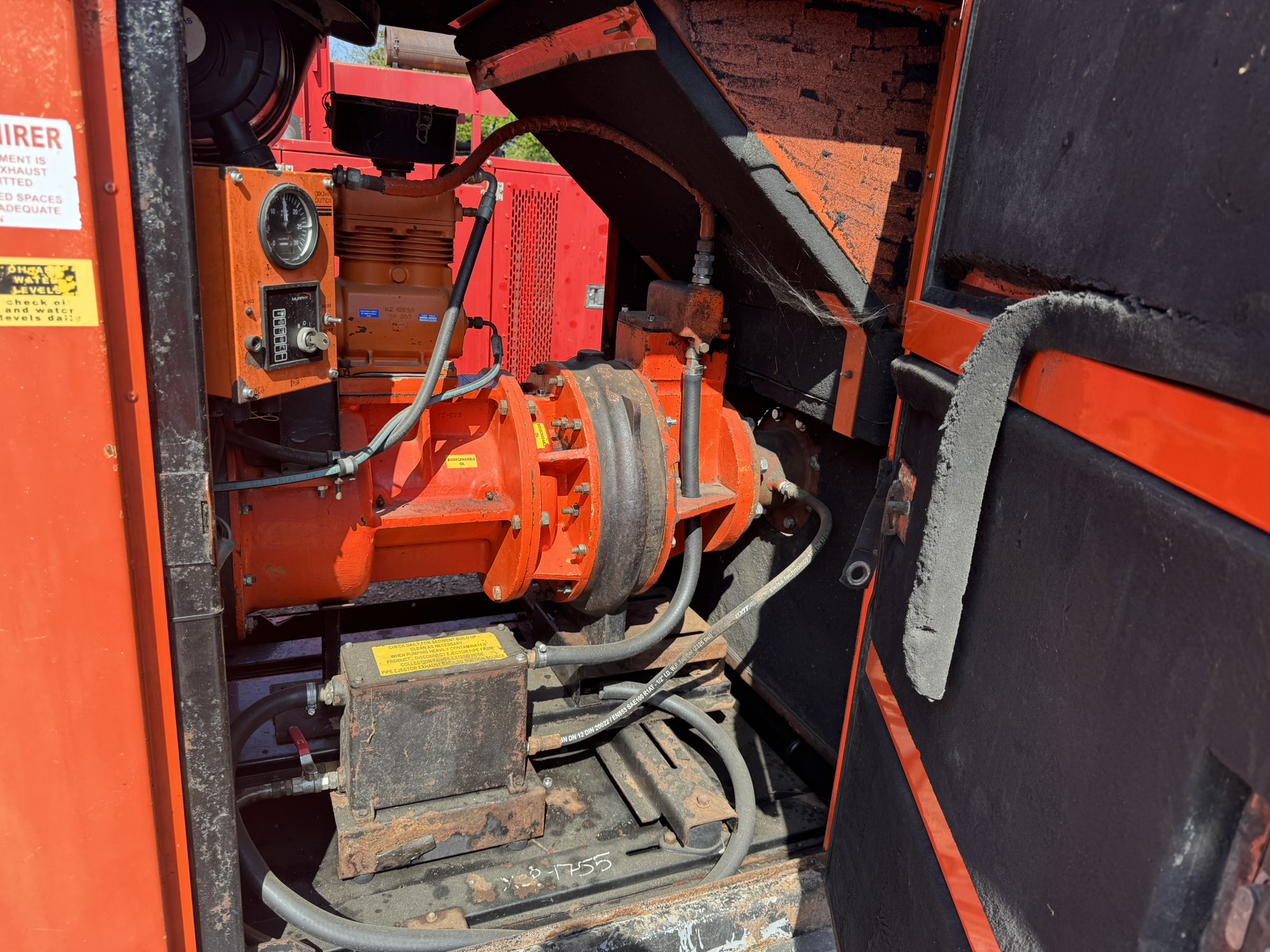

Used Godwin HL125 pump, with 150 mm suction and 100 mm discharge. It is powered by a Perkins 1104D water radiator diesel engine with key start. It has a fuel capacity of 225 litres and solids handling to 35 mm.
The Godwin HL125 pump is an powerful pump with flow capabilities to 250 m³/hr and discharge heads to 95 metres.
Warranty
Offered with a returned to base warranty of 30 days or 250 hours whichever is first.
- Technical Data
Condition Used Manufacturer Godwin Model / Part HL125 Max Flow 250.00 m³/hr Max Head 95.00 m Suction Size 6 inch (150 mm) Discharge Size 4 inch (100 mm) Solids Handling 35 mm Drive Perkins 1104D Diesel Engine Hours 15,732 hrs - Dimensions
Length 290 mm Width 130 mm Height 180 mm Weight (Dry) 2150.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
