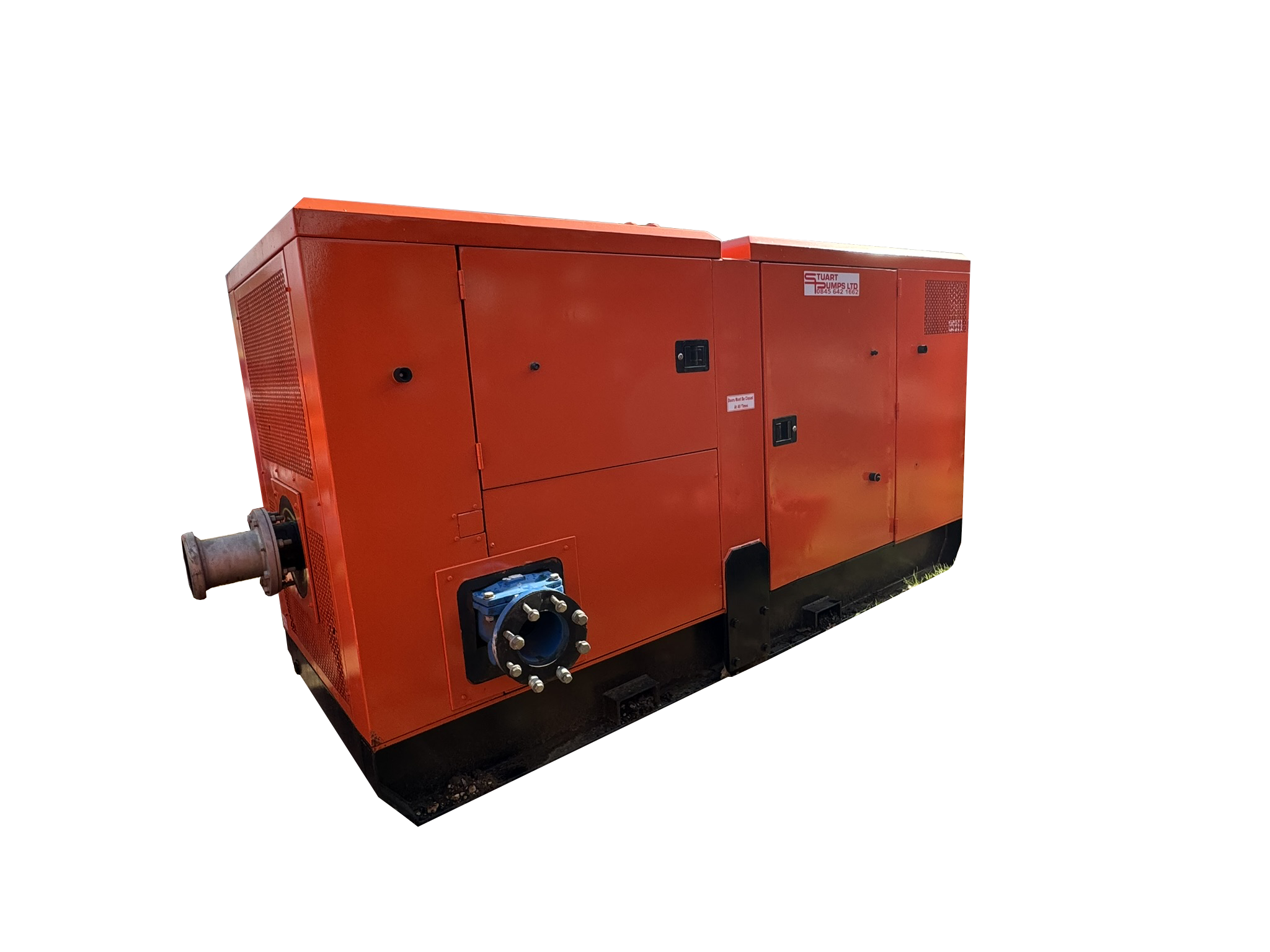

Used Godwin CD160M 6 inch Pump XSP9780
Used Godwin CD160M contractor pump complete with 150mm female Bauer suction and 150mm flange delivery branches.
Close coupled to a Perkins engine, radiator cooled, key start diesel engine and mounted in a hushpac skid
Warranty: 30 days or 250 hours, whichever if first
Disclaimer:
Hour meter readings are shown for guidance only and cannot be guaranteed.
Purchasers should satisfy themselves as to the condition, usage and suitability of pre-owned equipment prior to purchase
- Technical Data
Condition Used Manufacturer Godwin Model / Part XSP9780 Max Flow 427.00 m³/hr Max Head 78.00 m Suction Size 6 inch (150 mm) Discharge Size 6 inch (150 mm) Solids Handling 75 mm Drive Perkins 1106D Diesel Engine Hours 20,619 hrs Voltage 12 V - Dimensions
Length 3,350 mm Width 1,300 mm Height 1,900 mm Weight (Dry) 3167.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
