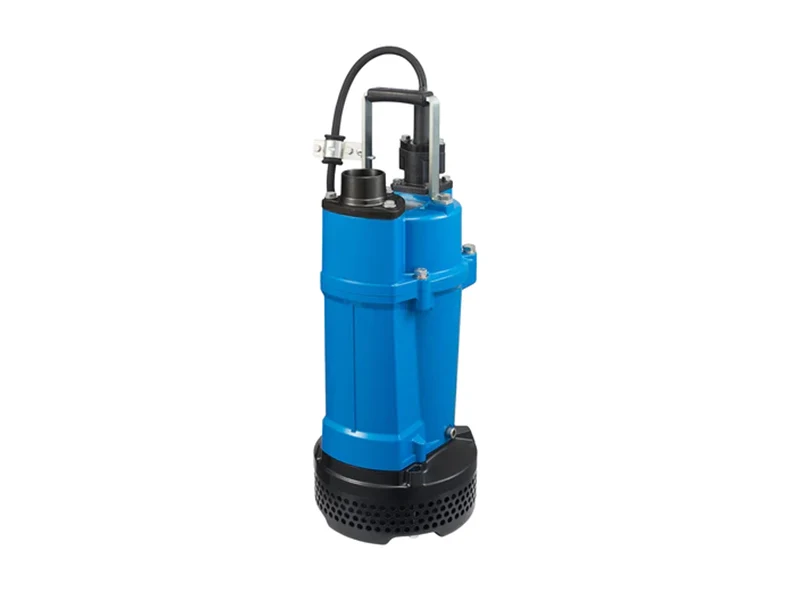

Tsurumi NK High Head Submersible Water Pump
2 Images
- Price: On Request
- Current Stock: Contact us for Availability.
- Stock Number: Non Assigned
Tsurumi NK High Head Submersible Water Pump
The NK Series are single phase drainage pumps capable of large flows at high heads. Constructed in superior grade materials throughout they give exceptional performance in harsh operating conditions. The hydraulic area features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. Each model has an integral starting capacitor.
- Technical Data
Condition New Manufacturer Tsurumi Model / Part NK Outlet (BSPM) 2" - 3" Motor output (kW) 2.2 Phases 1 Max head (m) 18 - 24 Max flow (I/min) 525 - 800 Free passage (mm) 6 - Model Variants

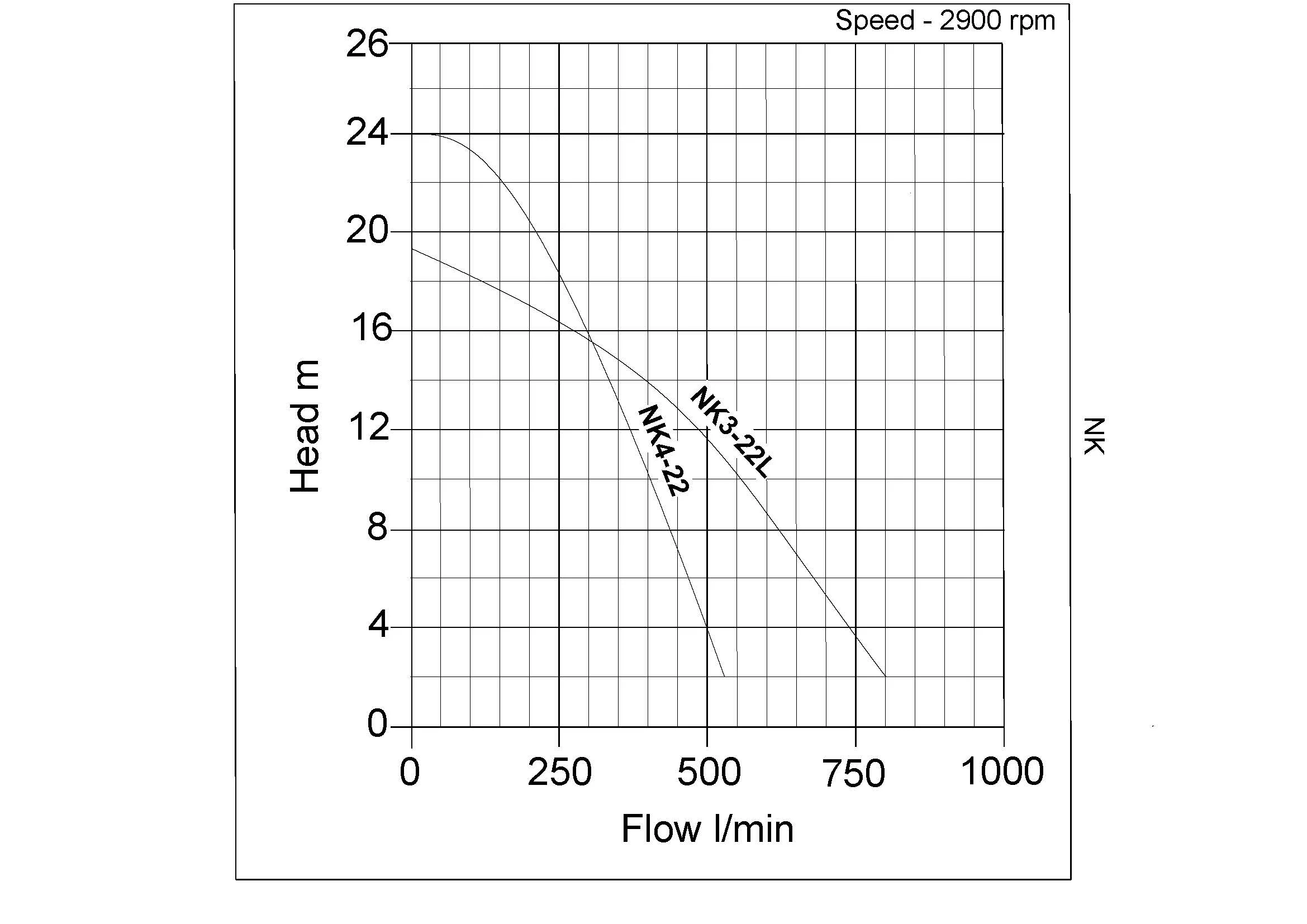

Model Manual/Auto Outlet Volt kW Flow Head Model: NK4-22 Manual/Auto: Manual Outlet: 2 inch Volt: 230 V kW: 2.20 kW Flow: 525.00 l/min Head: 24.00 m Model: NK3-22L Manual/Auto: Manual Outlet: 3 inch Volt: 230 V kW: 2.20 kW Flow: 800.00 l/min Head: 18.00 m - Downloadable Documents
