- Price: £19,950.00 Excl. VAT
- Current Stock: 1 Unit/s in Stock
- Stock Number: XSP9730 XSP9731

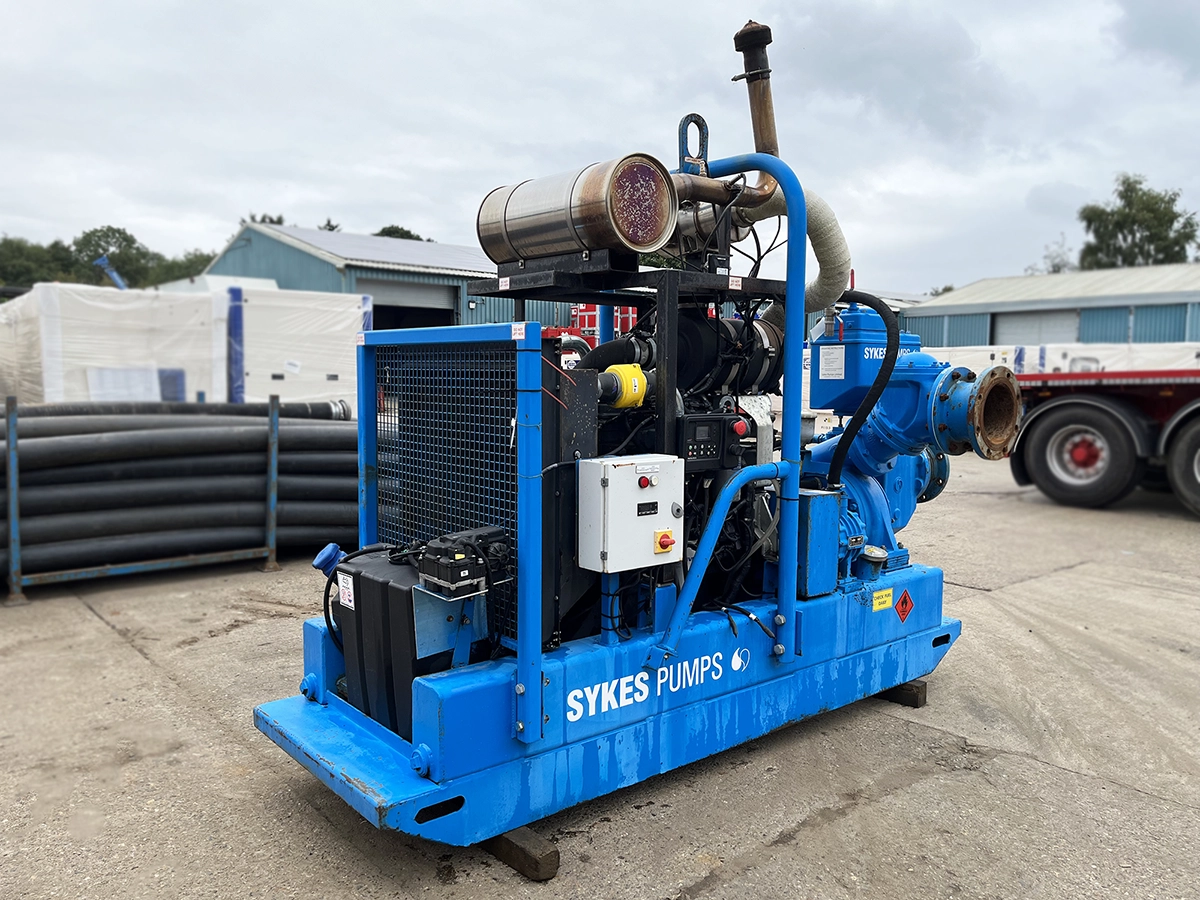

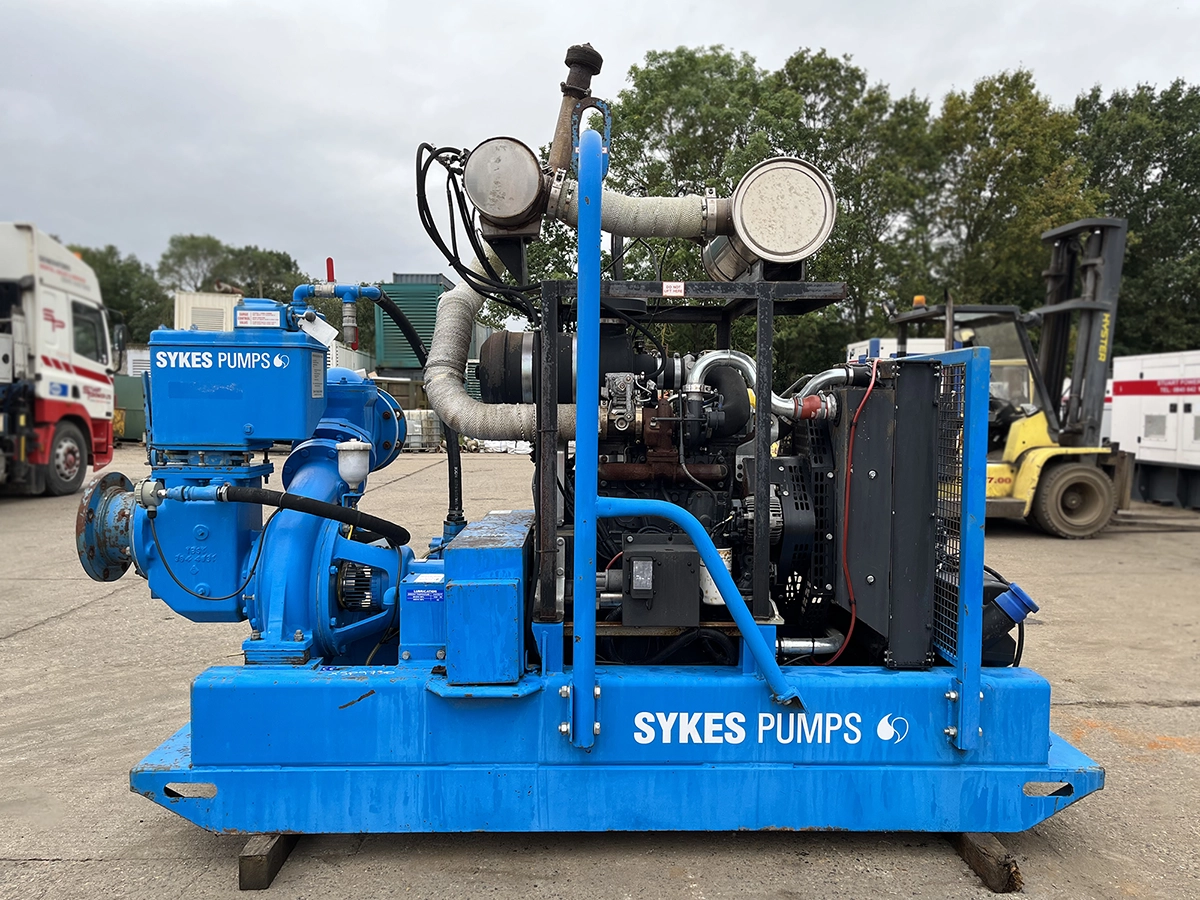

Used 2016 Sykes GP200M Tier 5 8inch Pump XSP9730

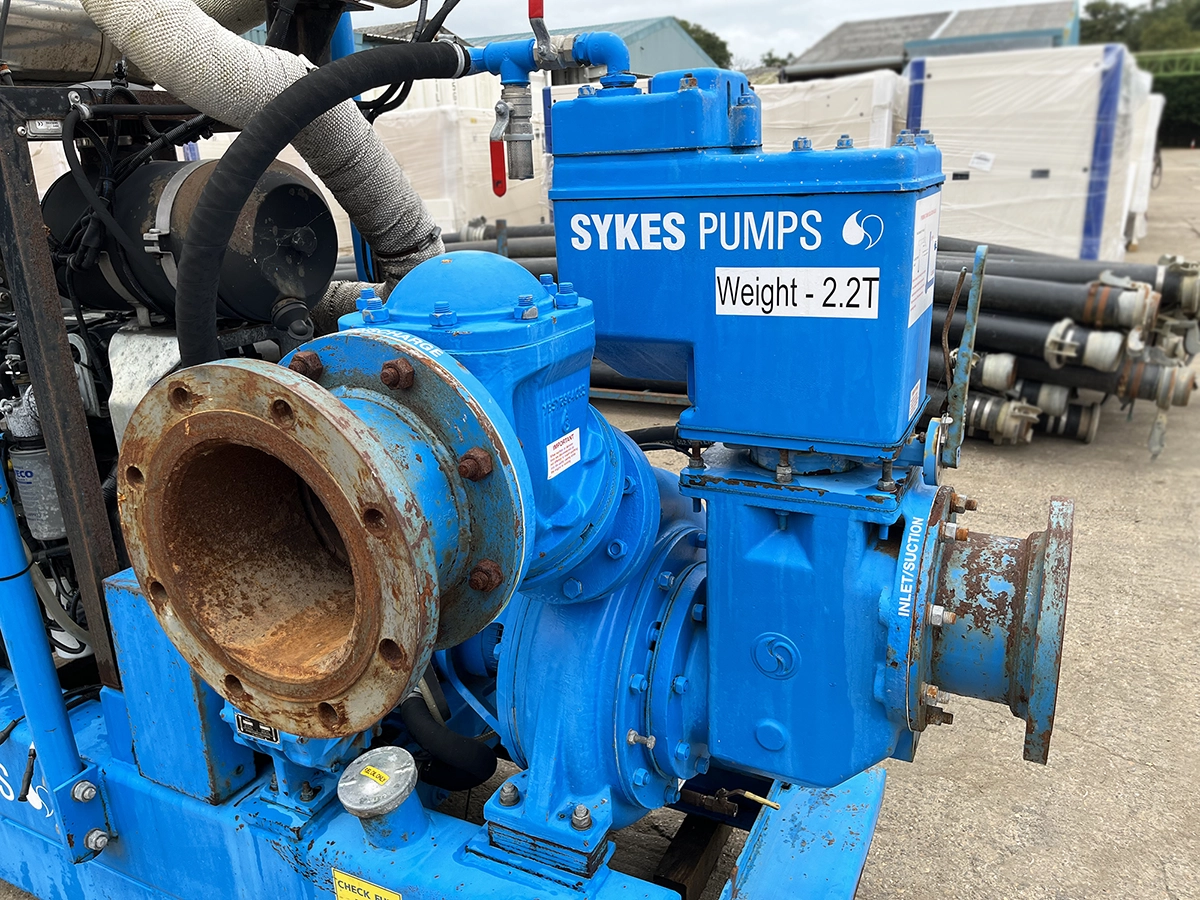

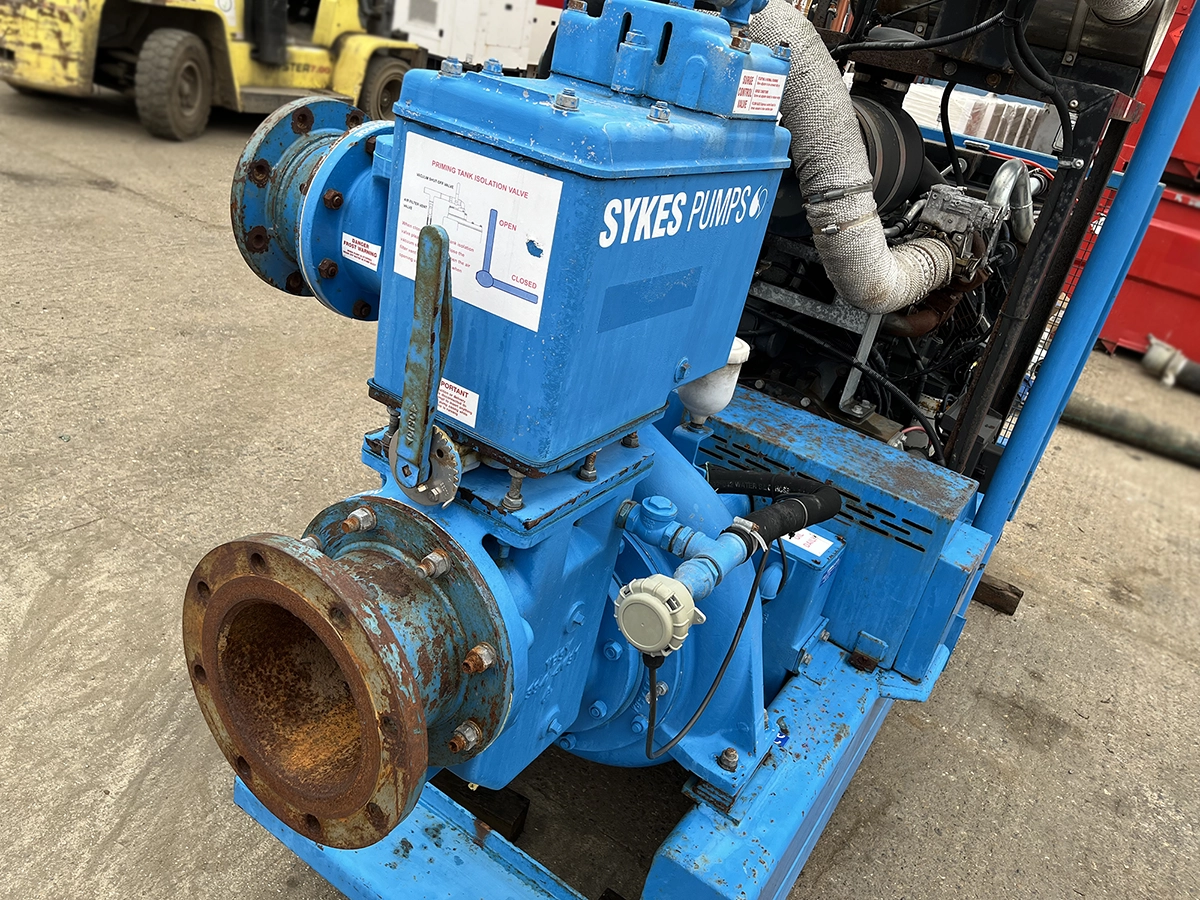

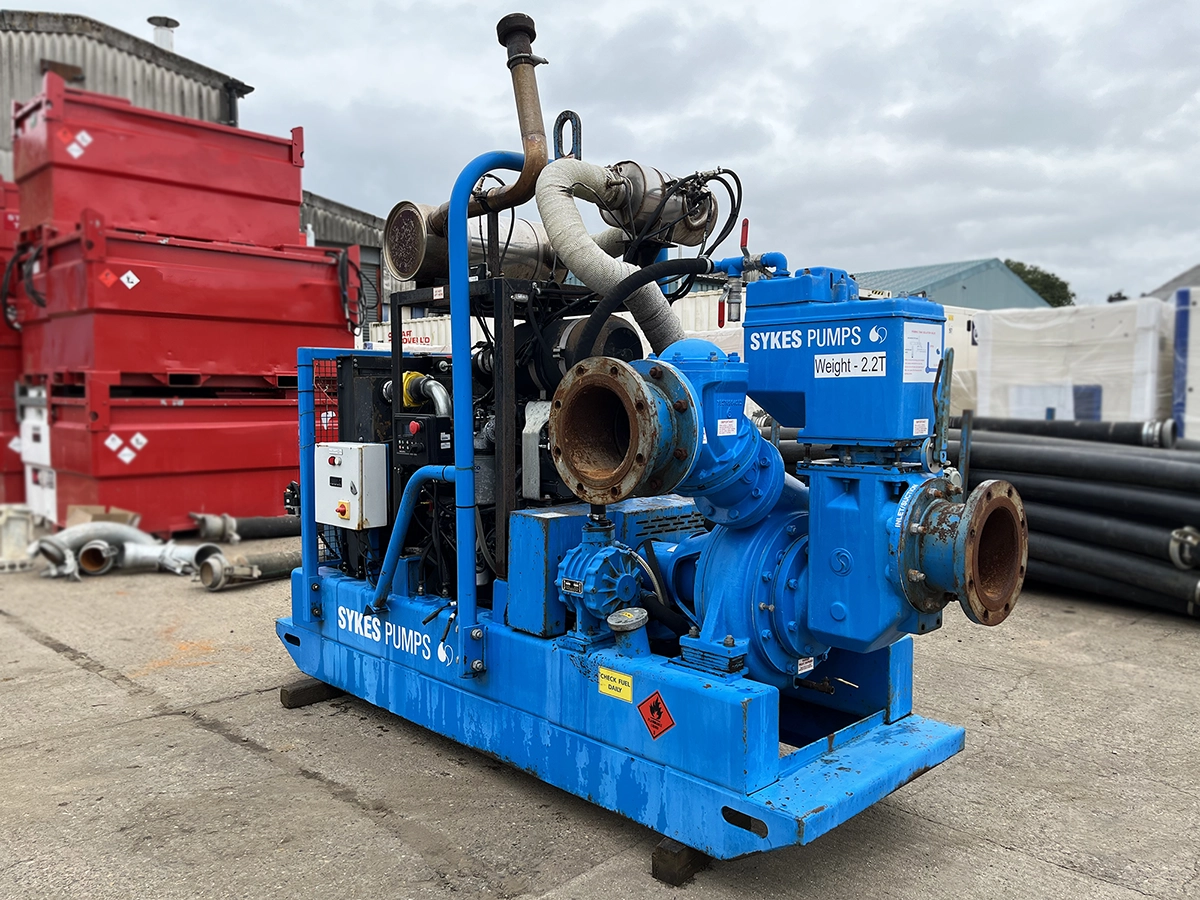

Used 2016Sykes GP200M Tier 5 suction pump with 200mm female Bauer suction and 200mm male Bauer delivery branches.

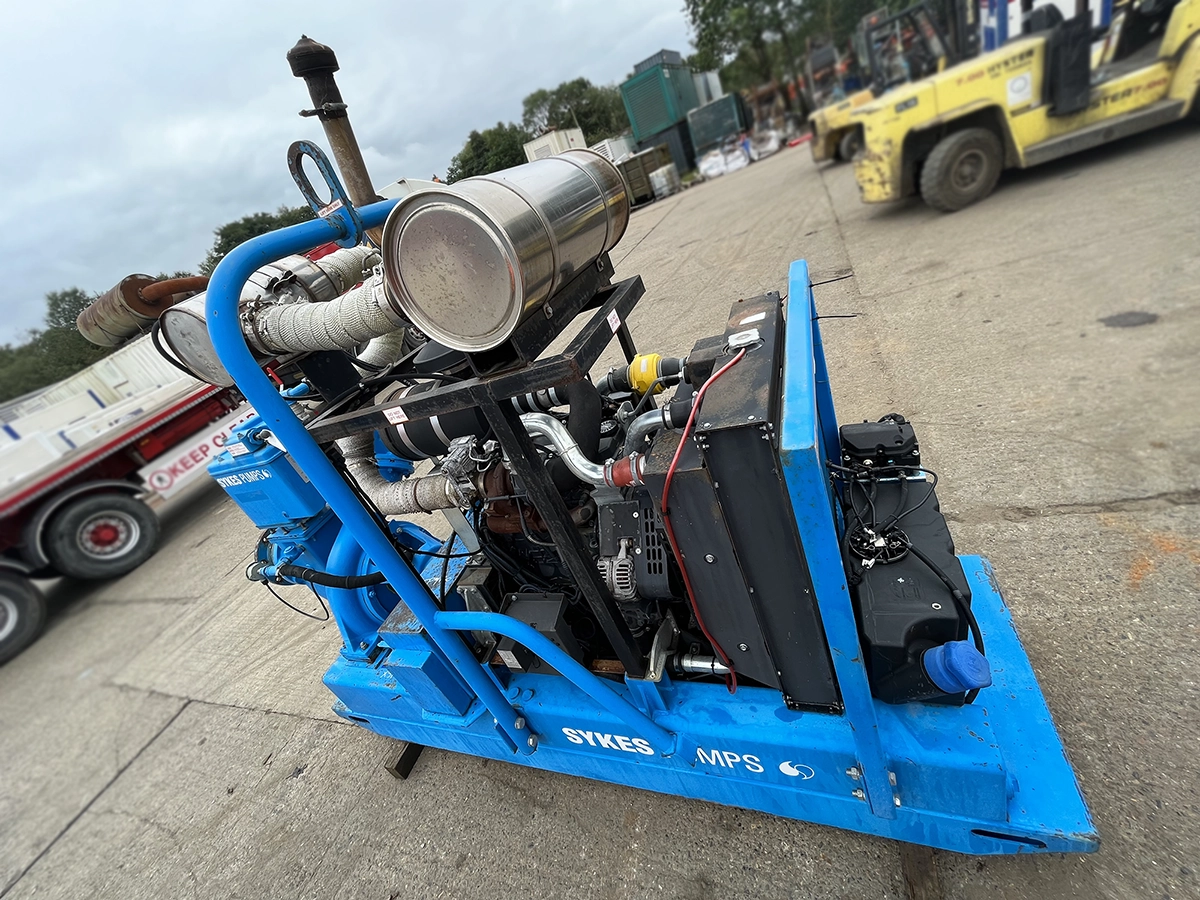

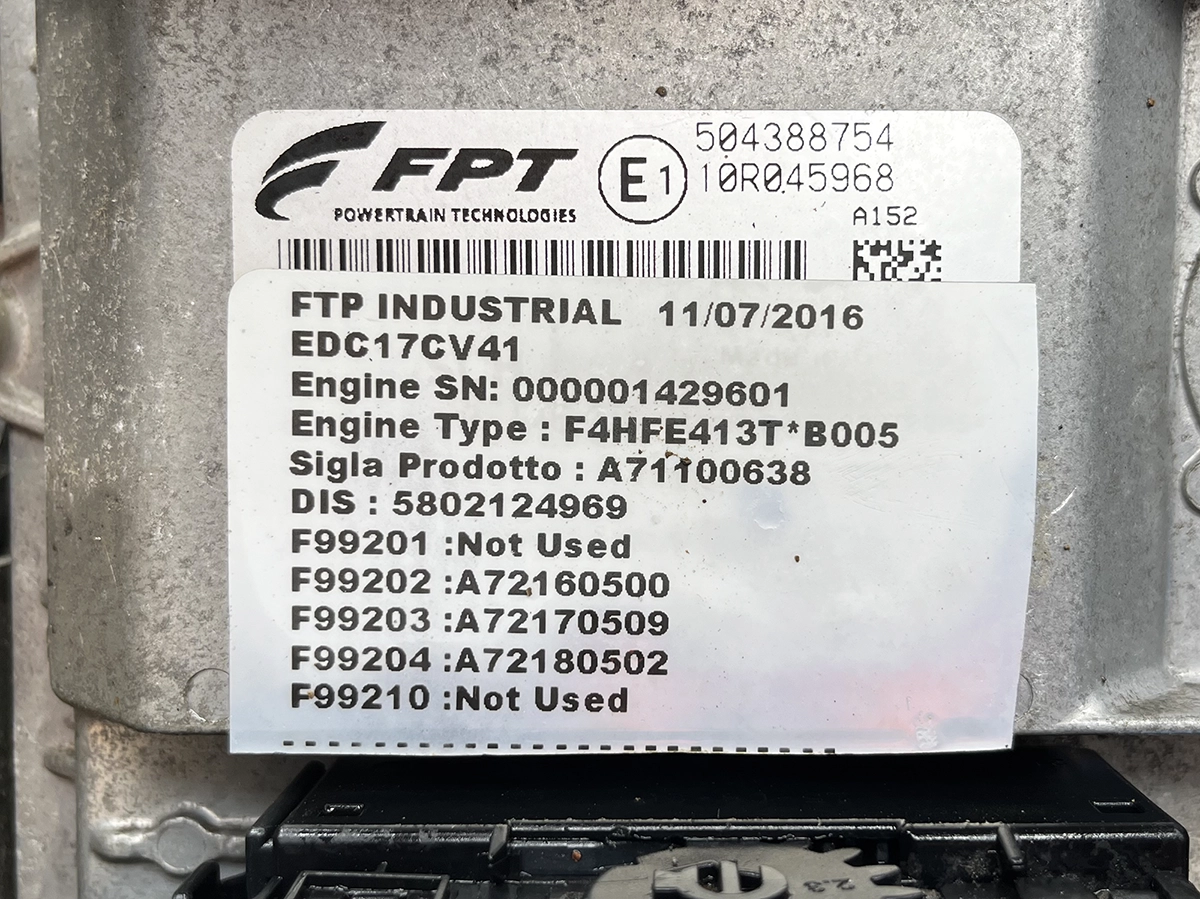

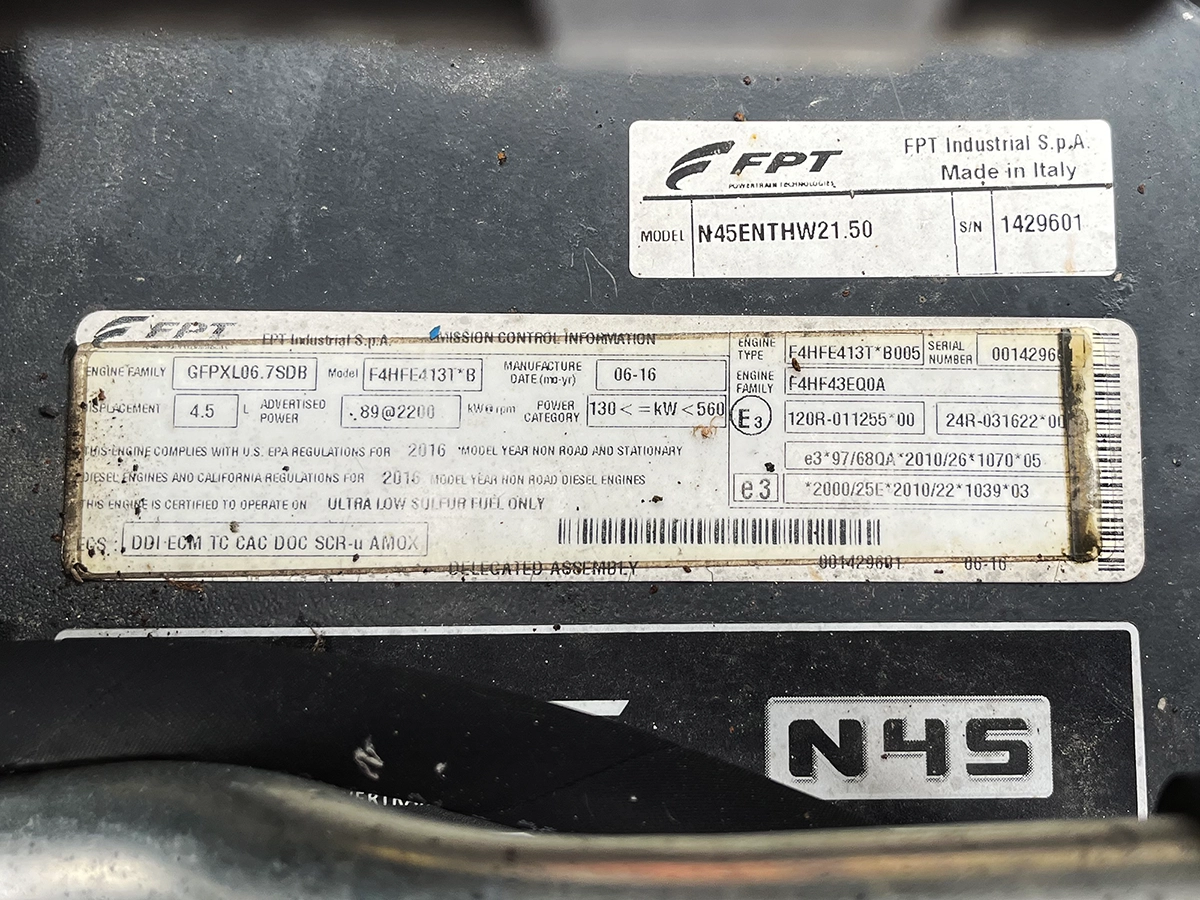

Long coupled to a radiator cooled, electric start, Iveco 4 cylinder, Teir 5 diesel engine all mounted on a skid base with central lifting eye, variable speed throttle and chassis integral fuel tank.

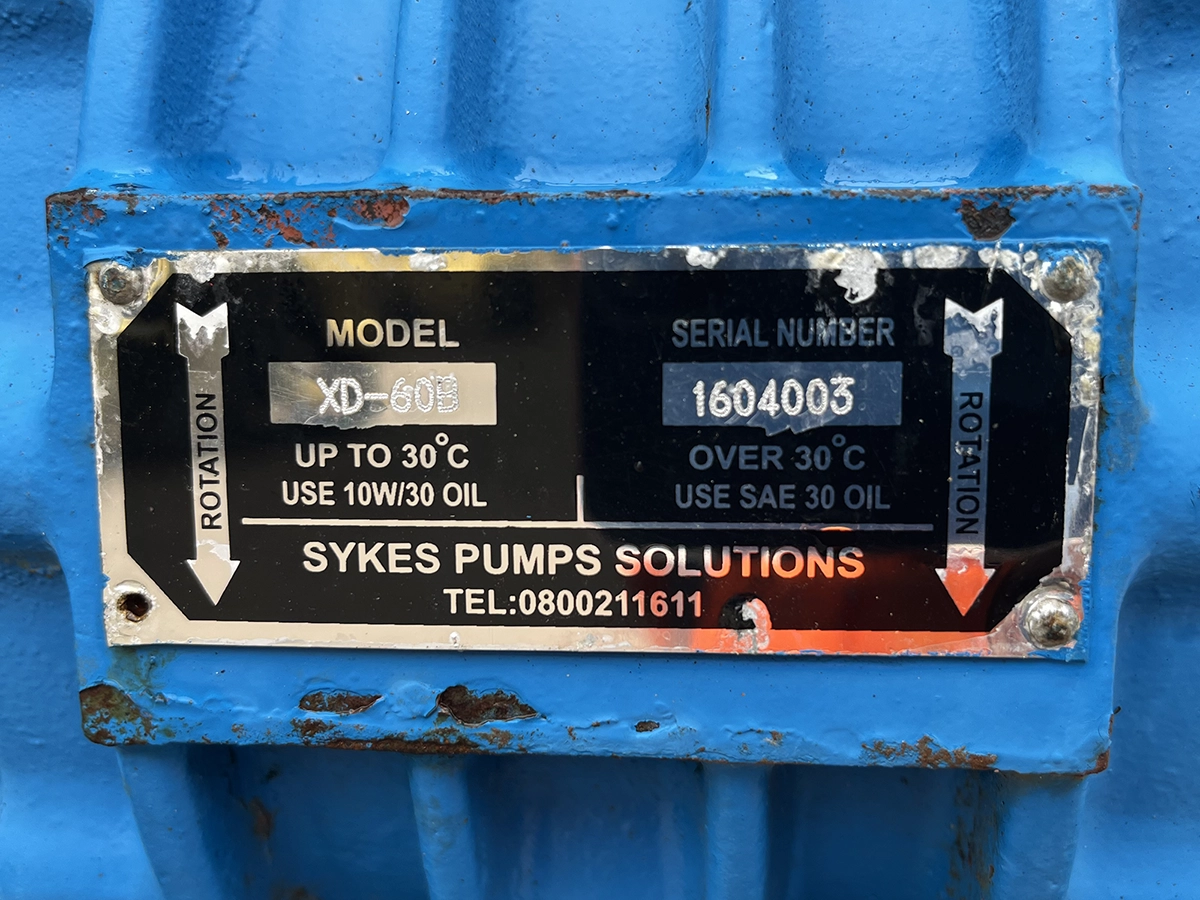

Fitted with a 60cfm vacuum automatic self-priming system. EXP Rated Zone Two.
Fuel 1800RPM = 15.8LPH, 1500RPM = 7.25LPH
1500RPM = 28m x 115LPS Ap
This was used as an ex-standby unit for an oil refinery project.
N.B. All Sykes pumps listed on this website are pre-owned. Stuart Group is not an authorised distributor for Sykes Pumps
Disclaimer:
Hour meter readings are shown for guidance only and cannot be guaranteed.
Purchasers should satisfy themselves as to the condition, usage and suitability of pre-owned equipment prior to purchase
- Technical Data

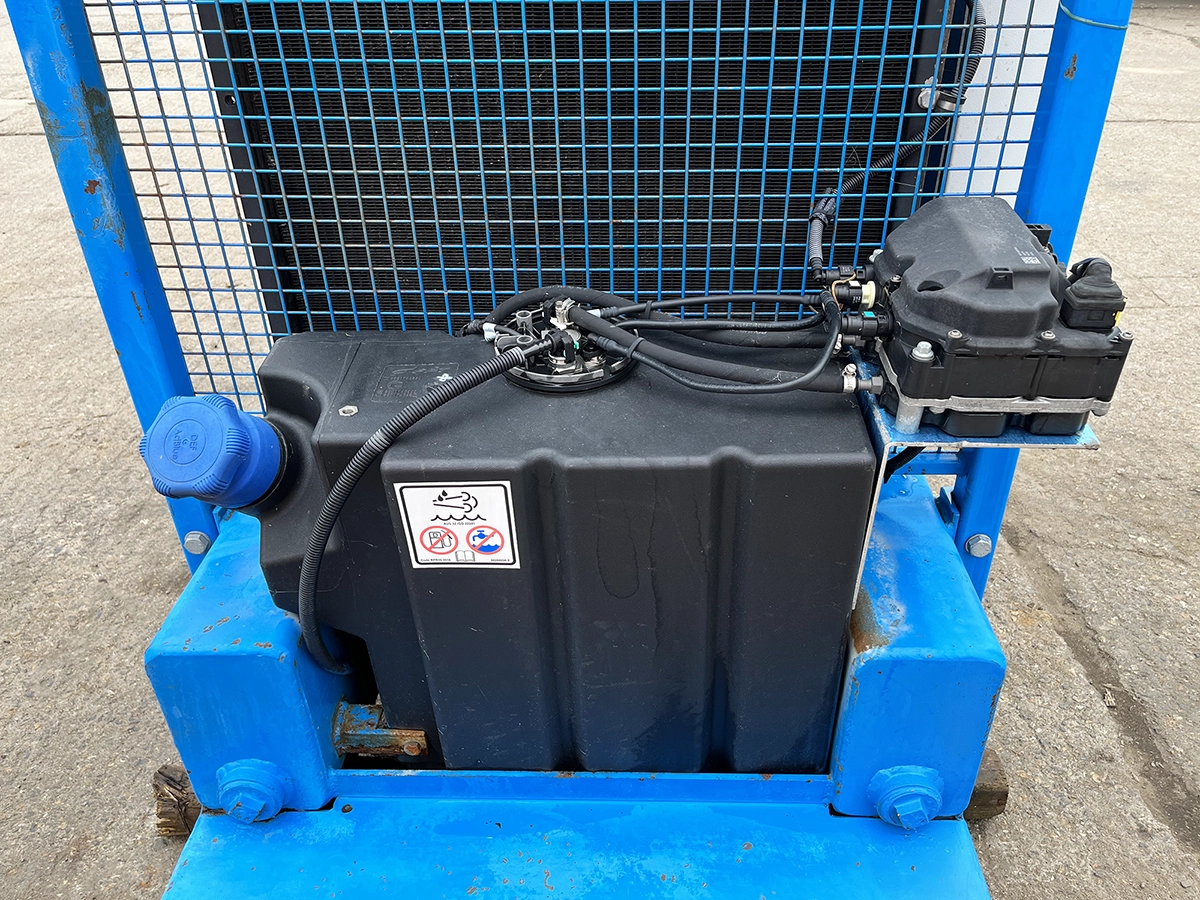

Condition Used (Very Good Condition) Manufacturer Sykes Model / Part GP200M5 Year of Manufacture 2016 Max Flow 576.00 m³/hr Max Head 43.00 m Suction Size 8 inch (200 mm) Discharge Size 8 inch (200 mm) Solids Handling 75 mm Drive Iveco TIER 5 DEF Diesel Engine Hours 109 hrs - Dimensions
Length 2,630 mm Width 1,570 mm Height 1,800 mm Weight (Dry) 2200.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
