- Price: On Request
- Current Stock: Contact us for Availability.
- Stock Number: HL225M

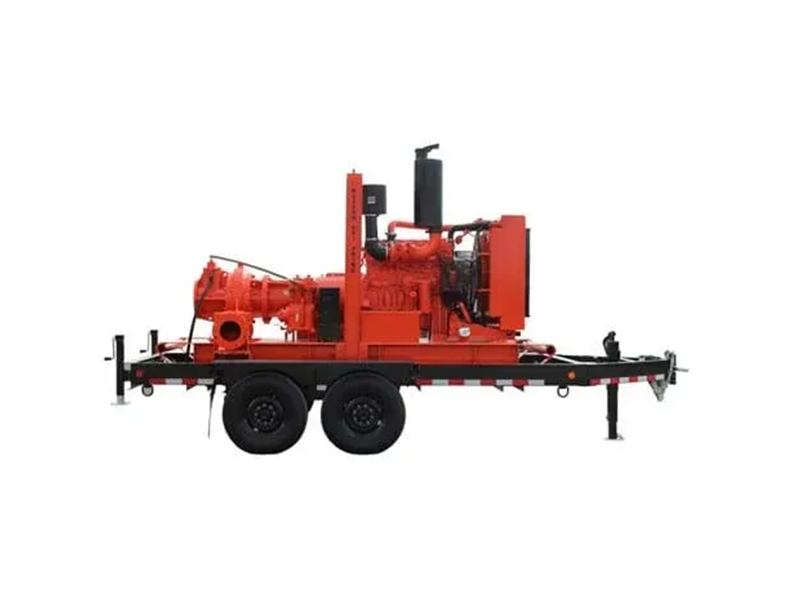

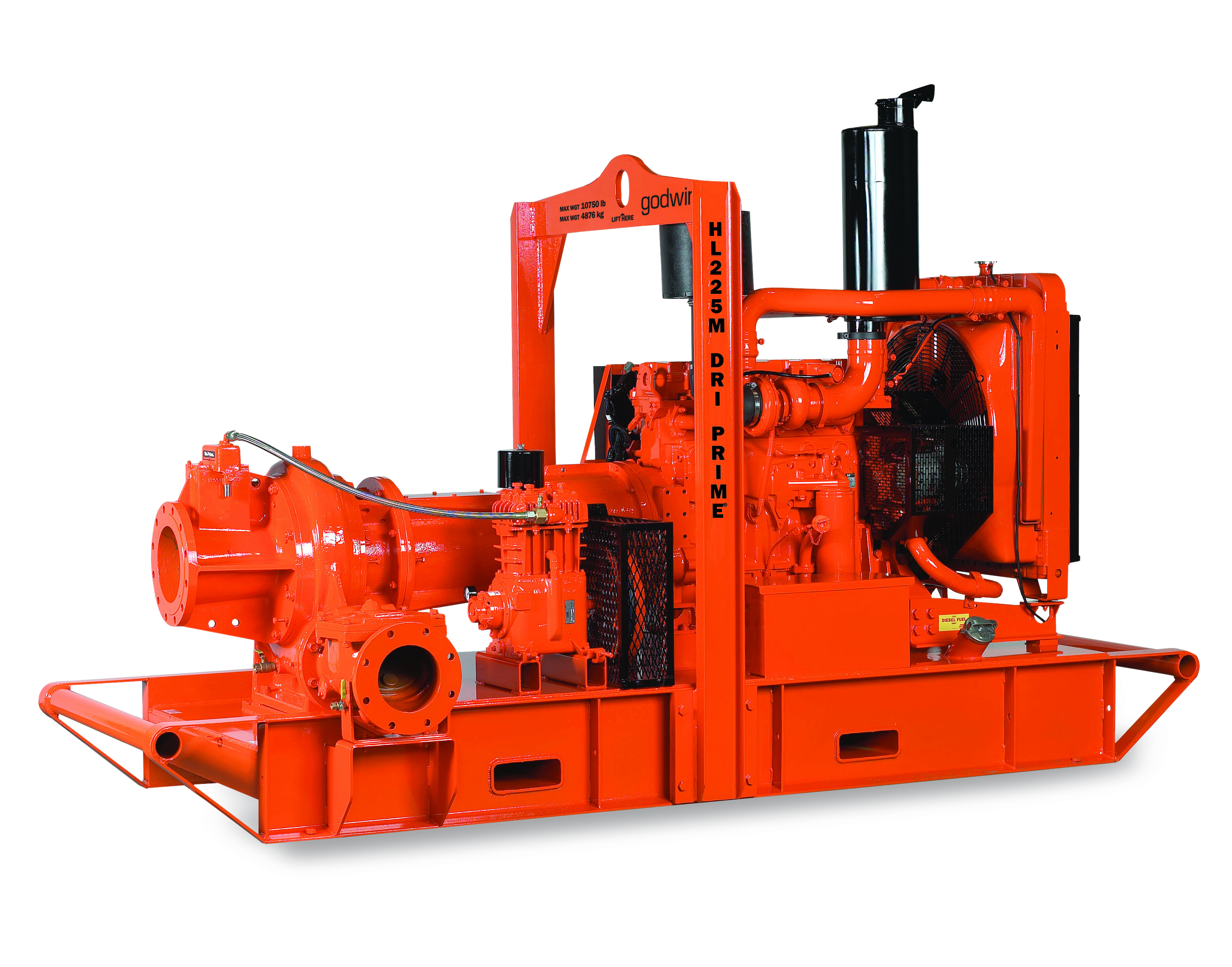

Godwin Dri-Prime HL225M Pump
Godwin HL225M pump, with 250mm suction and 200mm discharge. It is powered by a Caterpillar C15 diesel engine with a fuel capacity of 1198 litres.
The Godwin Dri-Prime HL225M pump is an extremely powerful yet compact pump with flow capabilities to 832 m³/hr and discharge heads to 113 metres. Available as an open set, or in a sound-attenuated enclosure.
The HL225M features the unique Godwin high pressure oil bath mechanical seal design. This allows for dry running for prolonged periods while automatically priming and repriming. Able to perform in the toughest conditions, the HL225M can handle solids up to 65 mm in diameter. This makes it an extremely effective pump, suitable for both slurry and clean water applications. The powerful HL225M has proven itself a pump of choice for mines, quarries and many other high capacity applications.
- Technical Data
Condition New (Brand New) Manufacturer Godwin Model / Part HL225M Max Flow 832.00 m³/hr Max Head 113.00 m Suction Size 10 inch (250 mm) Discharge Size 8 inch (200 mm) Solids Handling 65 mm Drive Caterpillar C15 Diesel Engine dB(A) @7m, 2000 rpm 65 - Downloadable Documents
