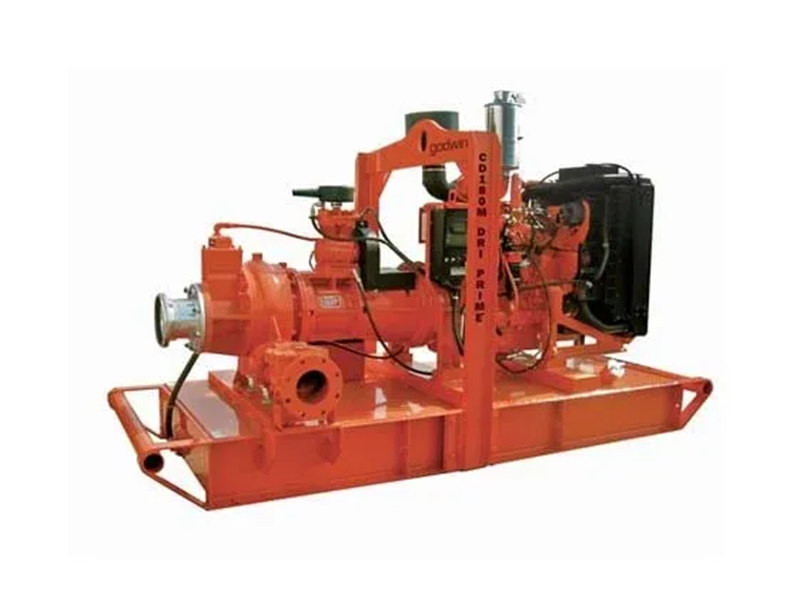

Godwin Dri-Prime CD180M Pump
Godwin CD180M pump, with 200mm suction and 150mm discharge. It is powered by a Perkins 1106D diesel engine with a fuel capacity of 324 litres.
The Godwin Dri-Prime CD180M pump is an extremely powerful yet compact pump with flow capabilities to 476 m³/hr and discharge heads to 77 metres.
The CD180M features the unique Godwin high pressure oil bath mechanical seal design. This allows for dry running for prolonged periods while automatically priming and repriming. Able to perform in the toughest conditions, the CD180M can handle solids up to 75 mm in diameter. This makes it an extremely effective pump, suitable for both slurry and clean water applications. The powerful CD180M has proven itself a pump of choice for mines, quarries and many other high capacity applications.
- Technical Data
Condition New (Brand New) Manufacturer Godwin Model / Part CD180M Max Flow 476.00 m³/hr Max Head 77.00 m Suction Size 8 inch (200 mm) Discharge Size 6 inch (150 mm) Solids Handling 75 mm Drive Perkins 1106D Diesel Engine Kilowatts 106.70 kW dB(A) @7m 68 - Downloadable Documents
