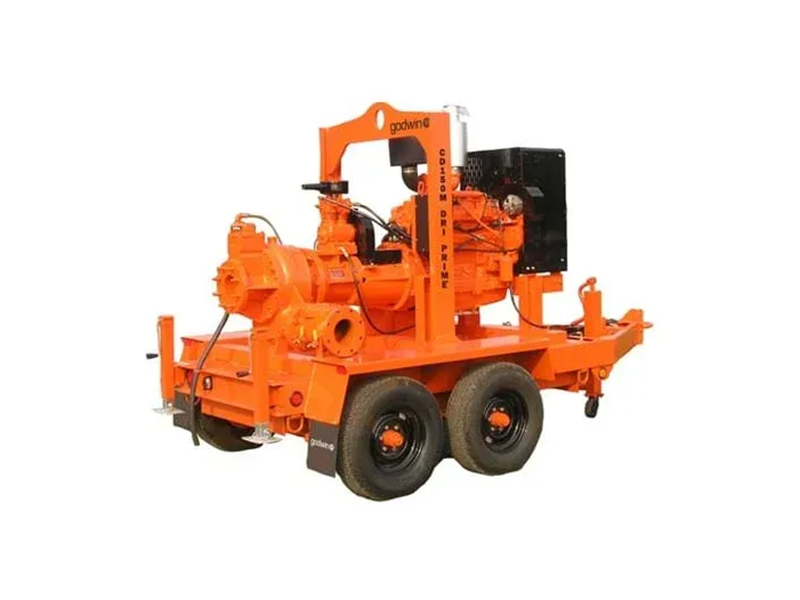

Godwin Dri-Prime CD160M Pump
Godwin CD160M pump, with 150mm suction and 150mm discharge. It is powered by a Perkins 1106D diesel engine with a fuel capacity of 324 litres
The Godwin Dri-Prime CD160M pump is an extremely powerful yet compact pump with flow capabilities to 427 m³/hr and discharge heads to 78 metres.
Available as open set or in a Hush Pac, sound-attenuated enclosure
The CD160M features the unique Godwin high pressure oil bath mechanical seal design. This allows for dry running for prolonged periods while automatically priming and repriming. Able to perform in the toughest conditions, the CD160M can handle solids up to 75 mm in diameter. This makes it an extremely effective pump, suitable for both slurry and clean water applications. The powerful CD160M has proven itself a pump of choice for mines, quarries and many other high capacity applications.
- Technical Data
Condition New (Brand New) Manufacturer Godwin Model / Part CD160M Max Flow 427.00 m³/hr Max Head 78.00 m Suction Size 6 inch (150 mm) Discharge Size 6 inch (150 mm) Solids Handling 75 mm Drive Perkins 1106D Diesel Engine Kilowatts 106.70 kW dB(A) @7m 68 - Dimensions
Length 3,350 mm Width 1,300 mm Height 1,887 mm Weight (Dry) 3167.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
