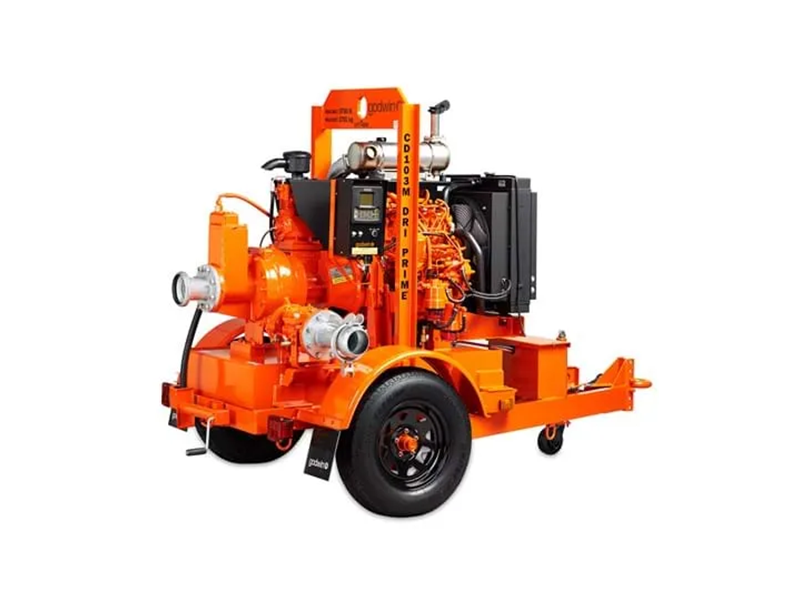

Godwin Dri-Prime CD103M Pump
Godwin CD103M pump with 100mm suction and 100mm discharge. It is powered by a Perkins 404D diesel engine with a fuel capacity of 180 litres.
Available as an open set or a Hush Pac sound-attenuated enclosure.
The Godwin Dri-Prime CD103M pump is an extremely powerful yet compact pump with flow capabilities to 232 m³/hr and discharge heads to 51 metres.
The CD103M features the unique Godwin high pressure oil bath mechanical seal design. This allows for dry running for prolonged periods while automatically priming and repriming. Able to perform in the toughest conditions, the CD103M can handle solids up to 75 mm in diameter. This makes it an extremely effective pump, suitable for both slurry and clean water applications. The powerful CD103M has proven itself a pump of choice for sewage handling, dewatering, local authority usage and many other applications.
- Technical Data
Condition New (Brand New) Manufacturer Godwin Model / Part CD103M Max Flow 232.00 m³/hr Max Head 51.00 m Suction Size 4 inch (100 mm) Discharge Size 4 inch (100 mm) Solids Handling 75 mm Drive Perkins 404D Diesel Engine Tier IV dB(A) @7m 64 - Dimensions
Length 2,190 mm Width 1,050 mm Height 1,500 mm Weight (Dry) 1250.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
