- Price: £56,660.00 Excl. VAT
- Condition: New
- Stock: 12 Unit/s in Stock
- Stock Number: PRO200-4

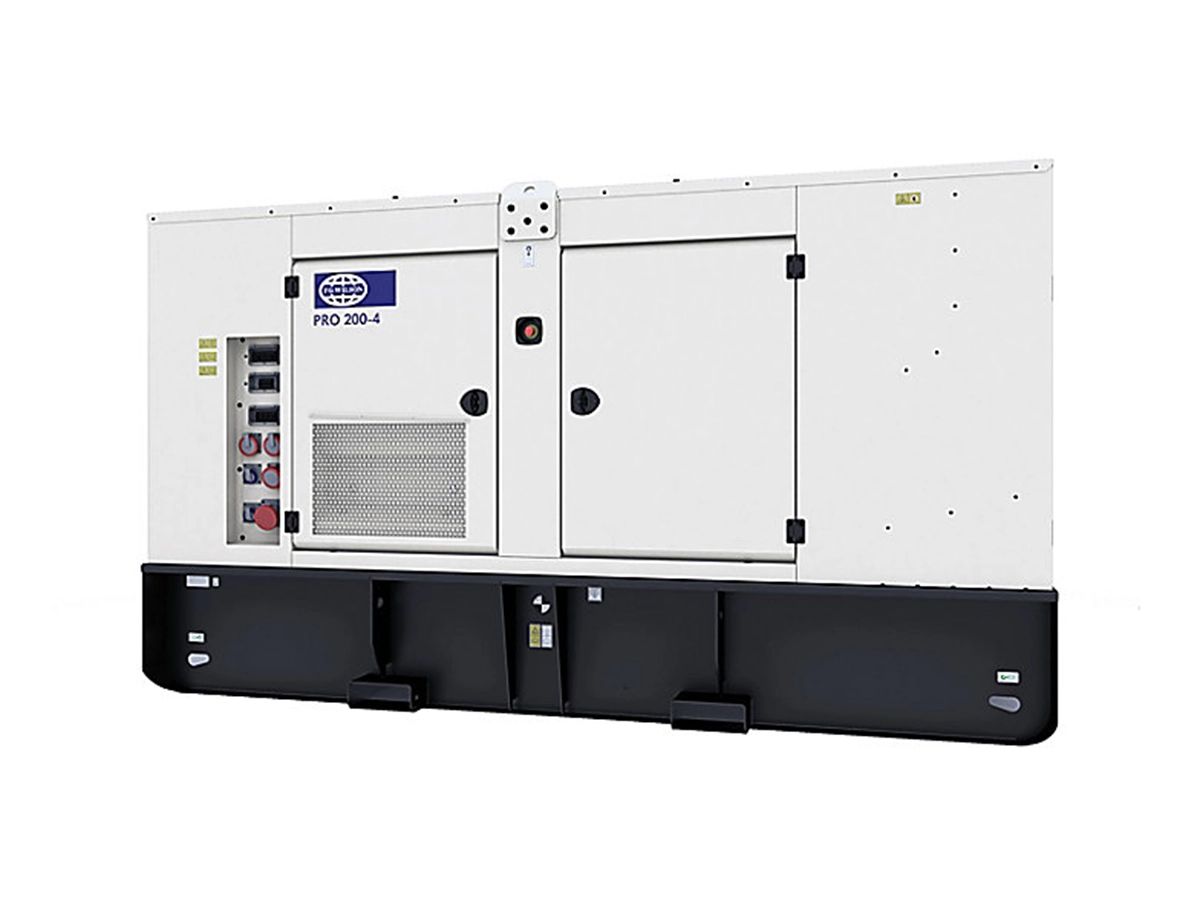

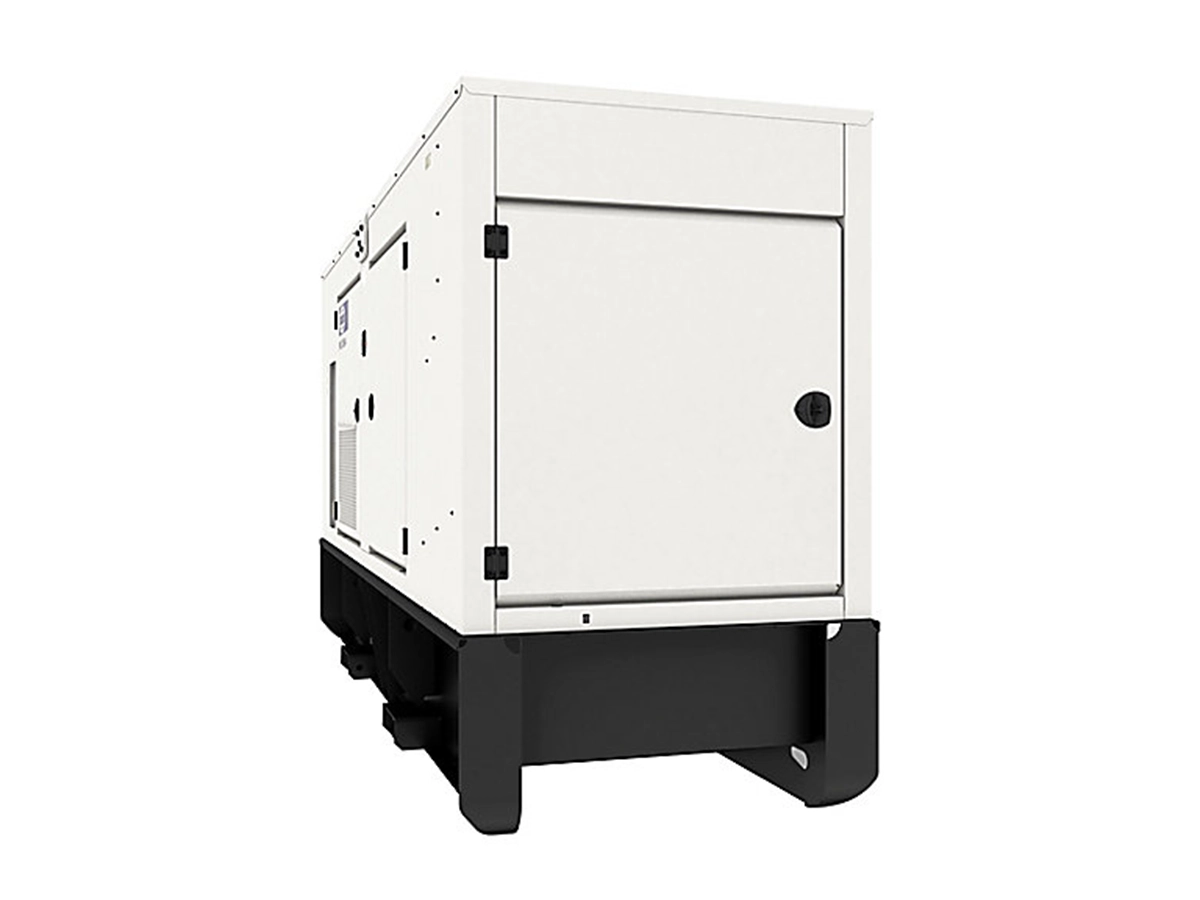

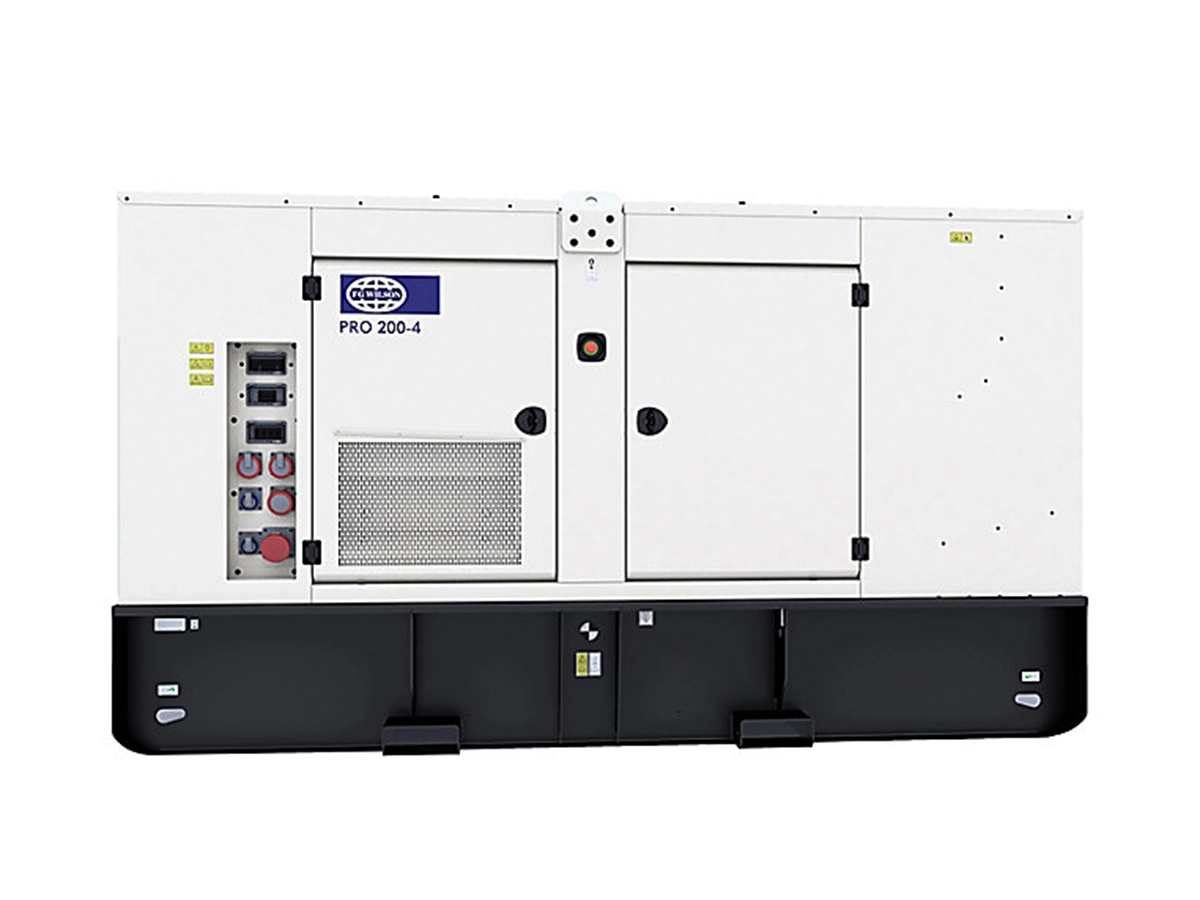

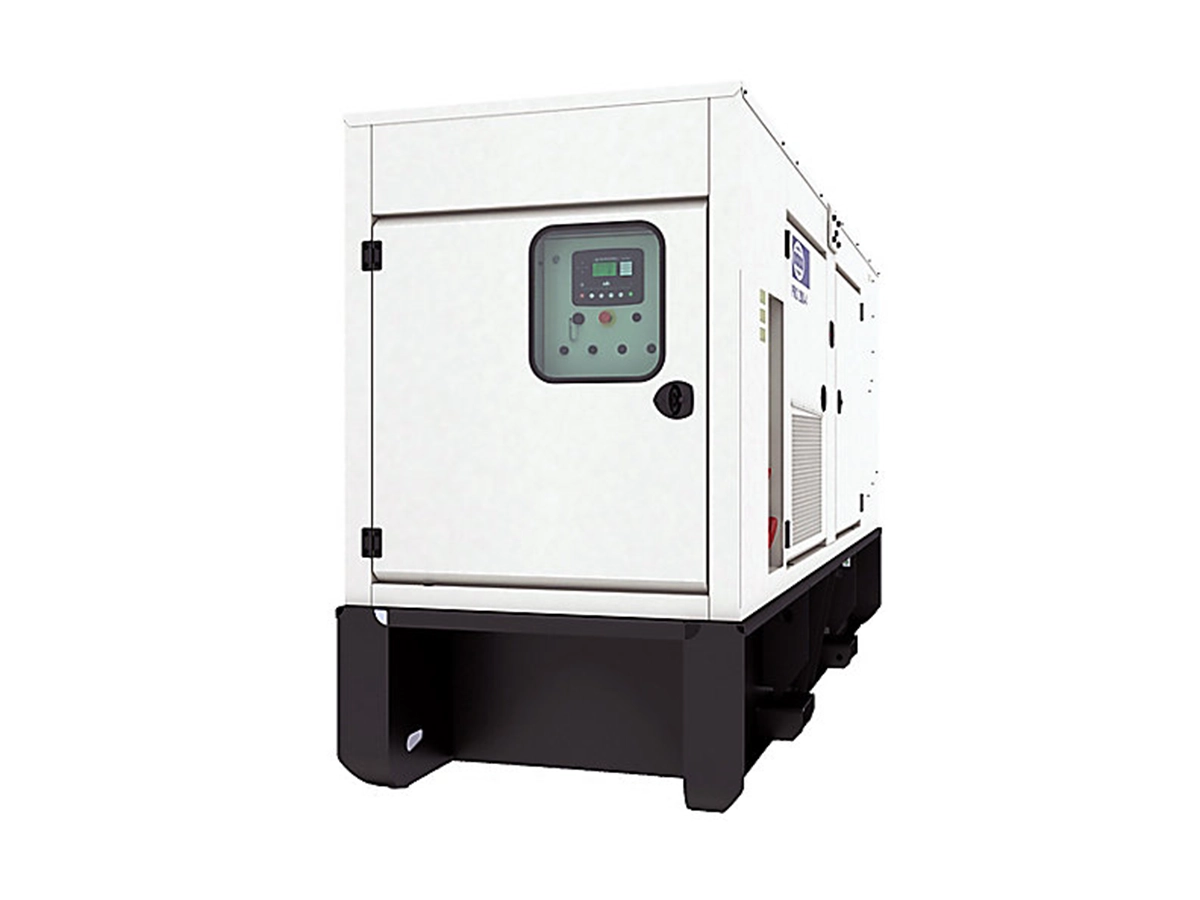

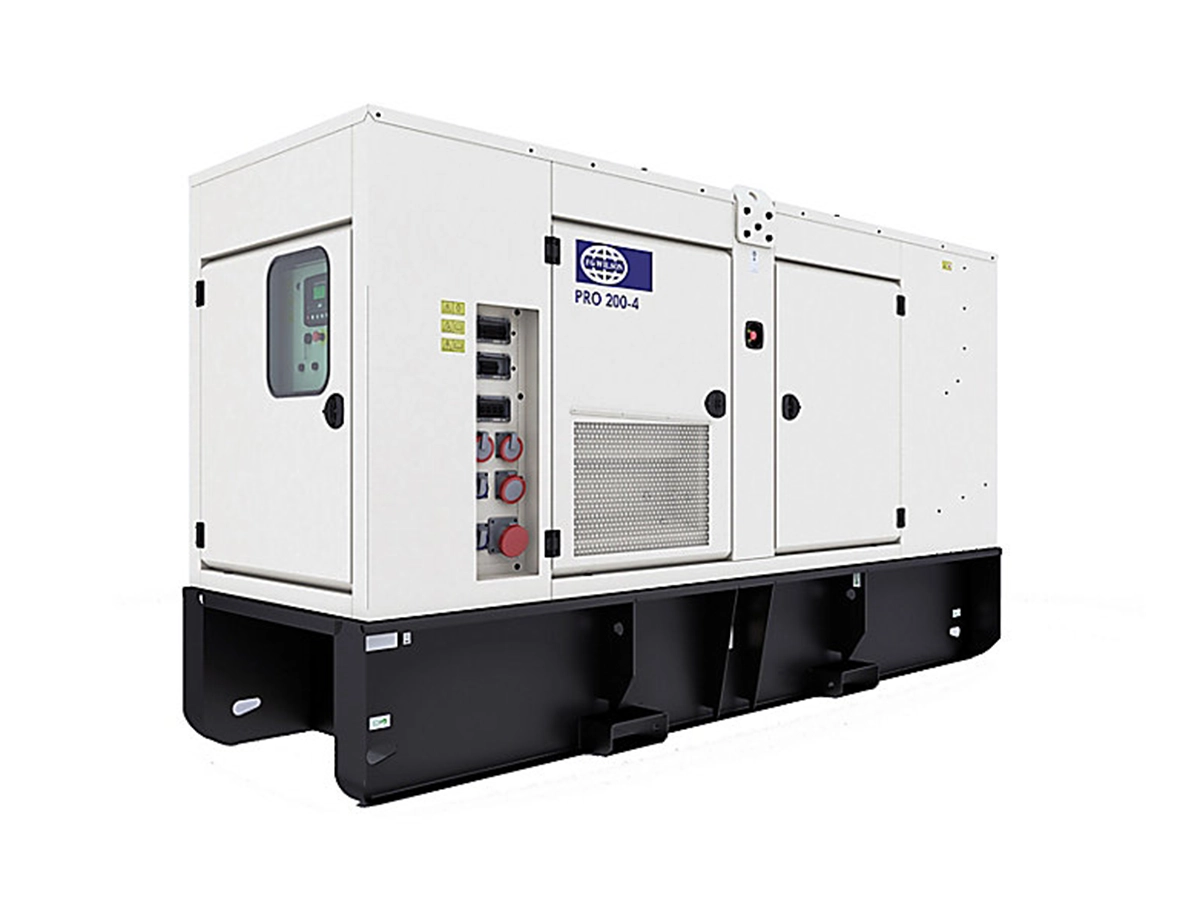

New FG Wilson EU Stage V PRO200-4 Diesel Generator
The standard spec PRO200-4 generator is 200 kVA, 160 kWe powered by the ultra-reliable Perkins 1206J-E70TTAG engine and is coupled to a Leroy Somer LL5114F 220-480 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea 7320 control panel. Stage V FG Wilson PRO are reduced emission generators that comply with EU Stage V Emissions Regulations.
The FG Wilson PRO200-4 diesel generator is complete with 1 year warranty on prime units and 2 year warranty on standby.
Diesel Generator specs in stock:
Diesel Generator 1 - 7: is equipped with a Deep Sea 8620 control panel, a standard calcium battery and isolator switch, distribution sockets, an oil drain pump, an enhanced fuel system, and has earth leakage protection, all housed with an extremely robust sound attenuated galvanised enclosure whilst being able to withstand the harshest on-site conditions, CE/UKCA certified.
Diesel Generator 8 - 12: is equipped with a Comp Inteligen control panel, a standard calcium battery and isolator switch, distribution sockets, an oil drain pump, an enhanced fuel system, and has earth leakage protection, all housed with an extremely robust sound attenuated galvanised enclosure whilst being able to withstand the harshest on-site conditions, CE/UKCA certified.
- Technical Data
Manufacturer FG Wilson - PRO200-4 Standby 200.0 kVA / 160.0 kW Prime 190.0 kVA / 152.0 kW Phase Three-Phase Engine Perkins - 1206J-E70TTAG Voltage 220-480 V Frequency 50 / 60 Hz Switchable Emissions EU Stage V Compliant - Dimensions
Length 4,085 mm Width 1,420 mm Height 2,367 mm Weight 4487.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: FG Wilson PRO200-4 Stage V Datasheet Datasheet: Perkins 1206J-E70TTAG Engine Datasheet Datasheet: DSE8620 Control Panel Datasheet Manual: Engine Manual Manual: Operators Manual Manual: Technical Manual Stuart Group Brochure
