FG Wilson P1500-1 Diesel Generator
- Price: On Request
- Condition: New
- Stock: Contact us for Availability.
- Stock Number: P1500-1
FG Wilson P1500-1 Diesel Generator

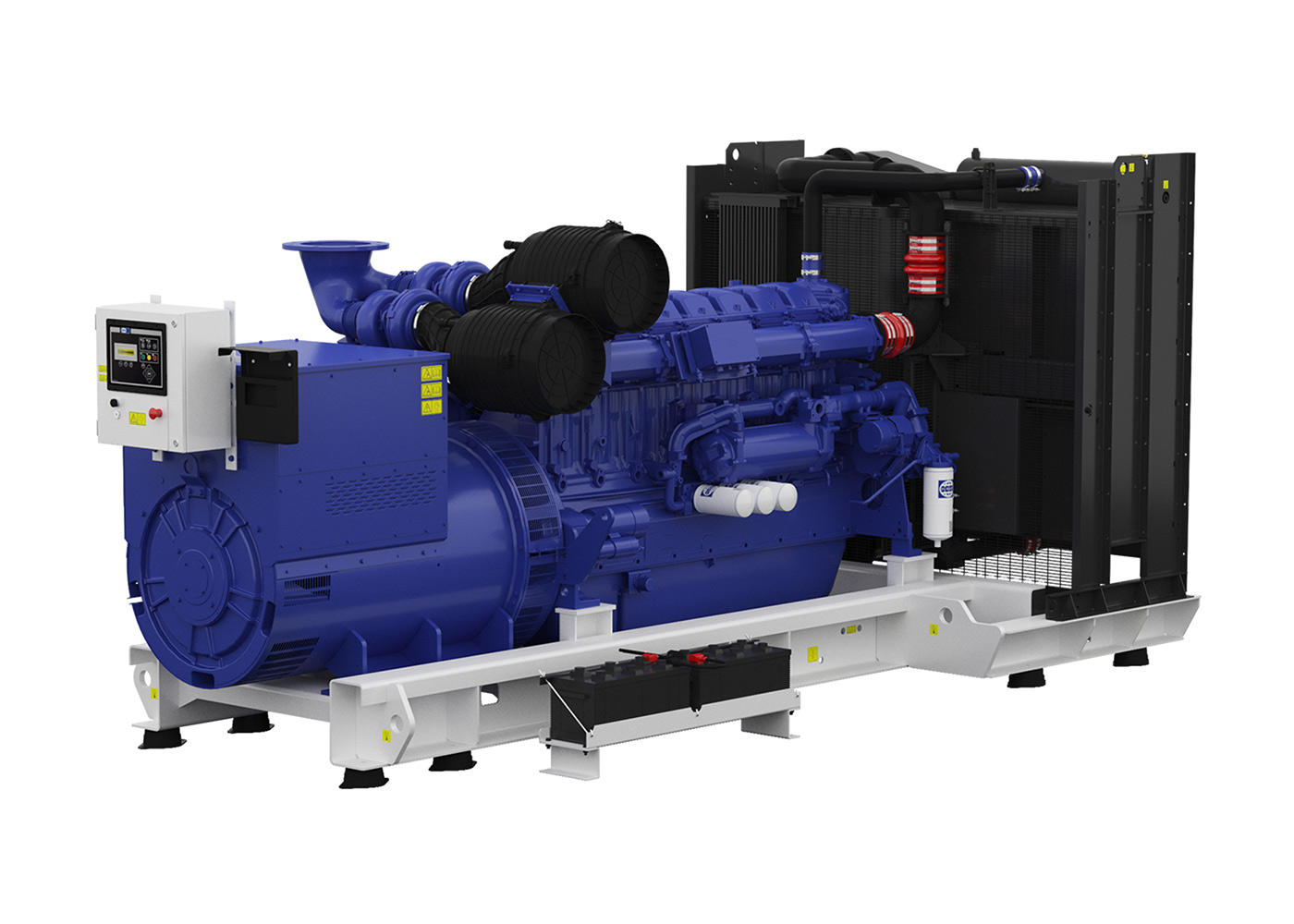

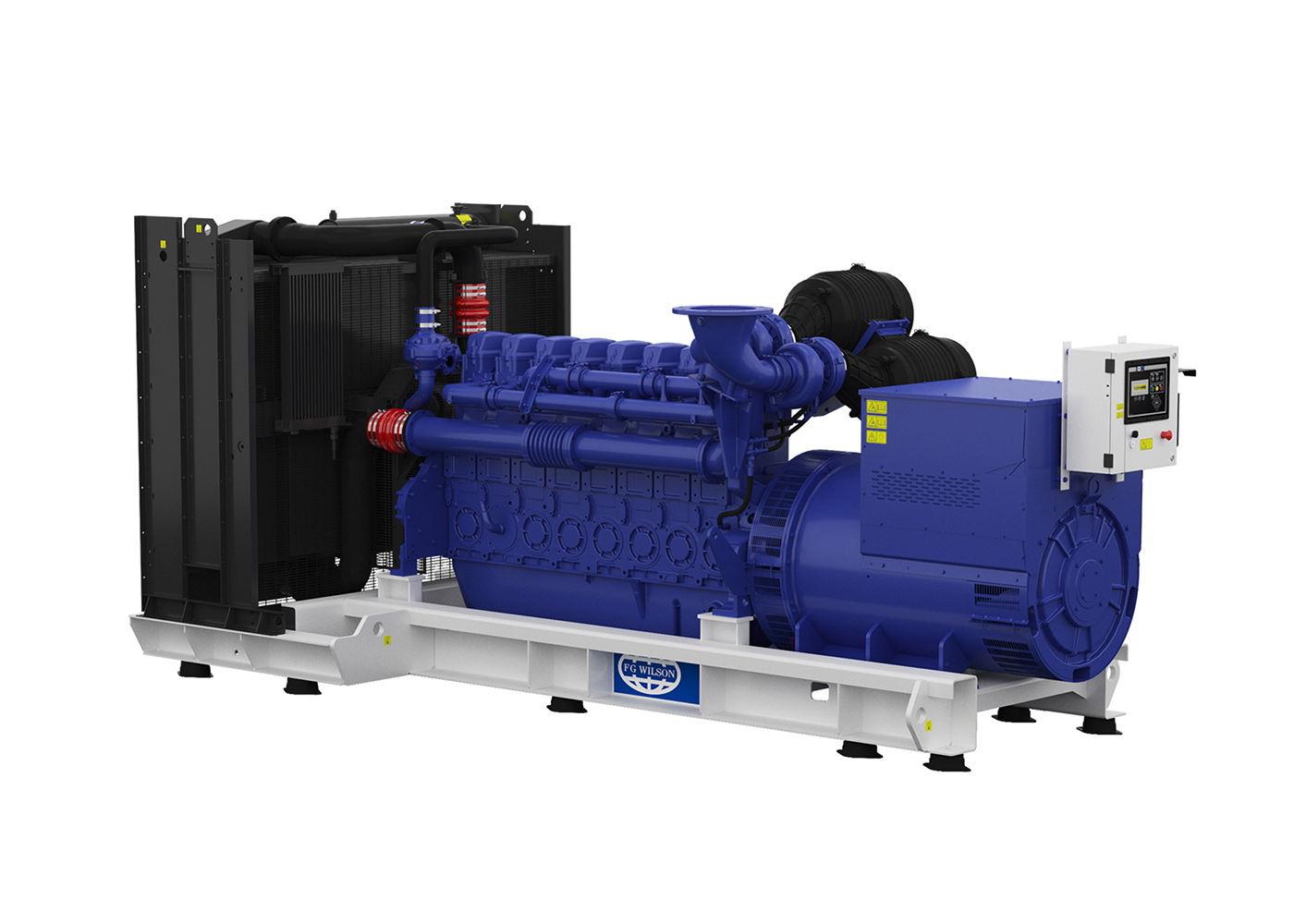

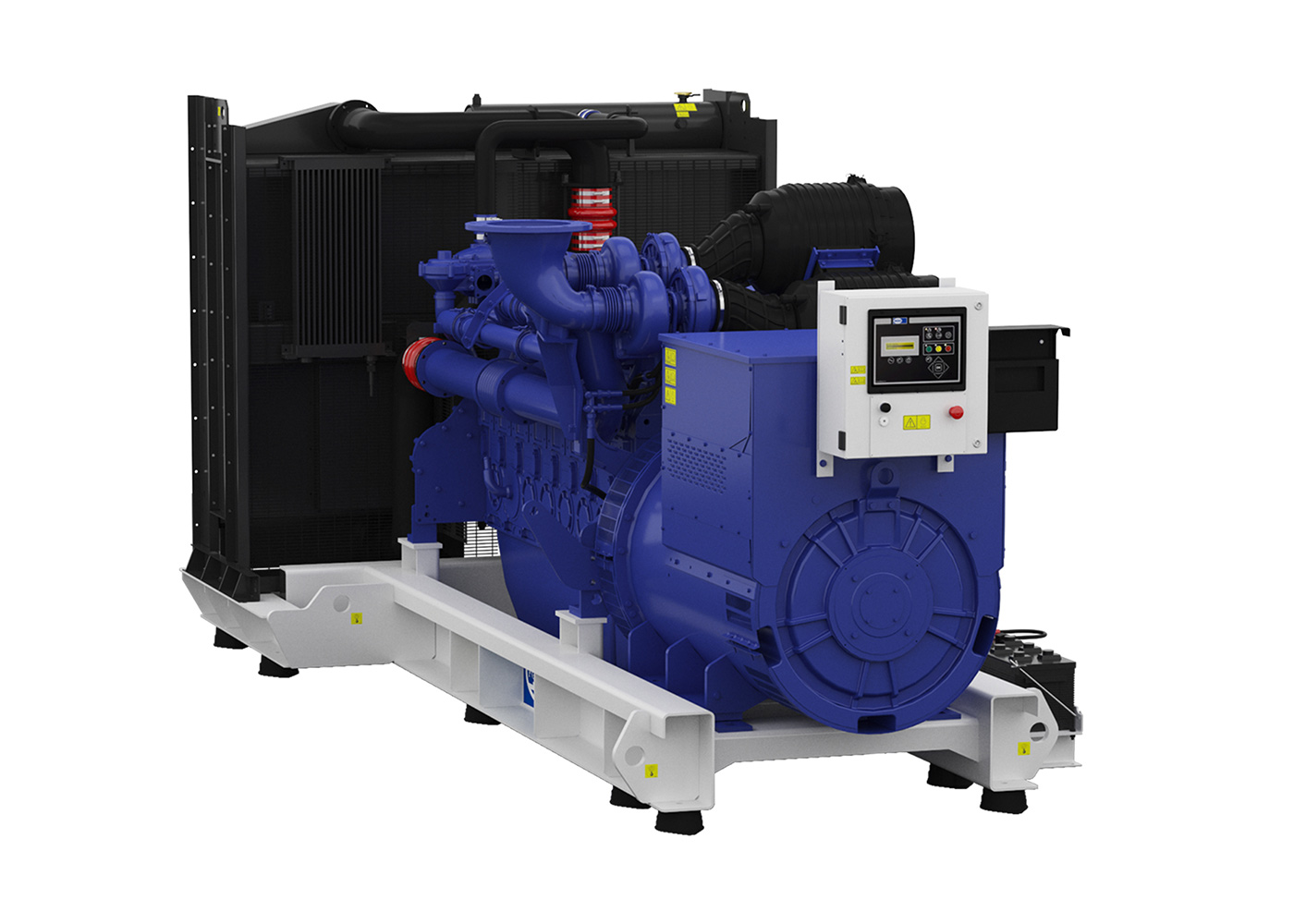

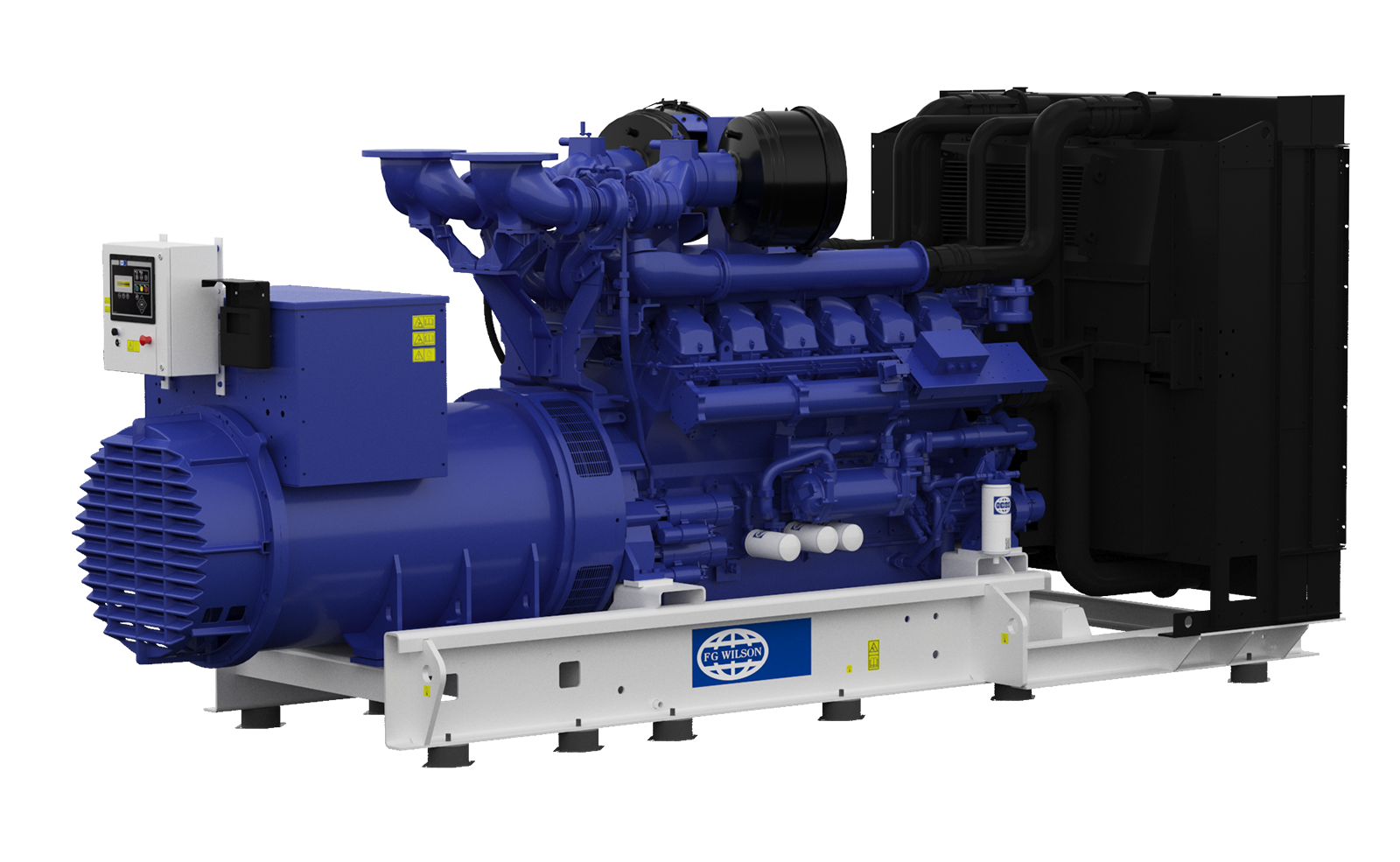

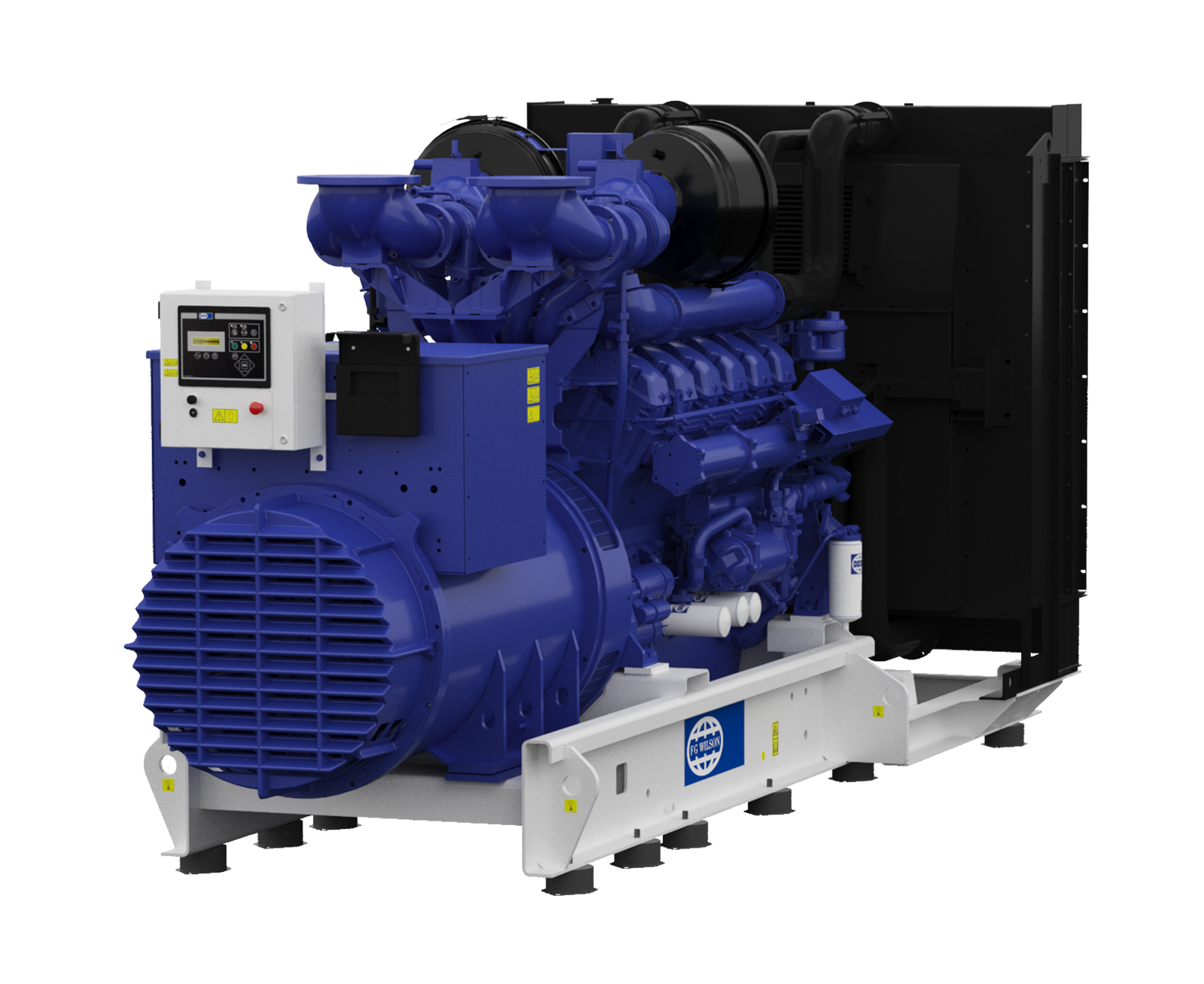

The standard spec P1500-1 generator is 1500 kVA, 1200 kW powered by the ultra-reliable Perkins 4012-46TWG3A engine and is coupled to a Leroy Somer LL8224L 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea DSE7410 control panel and is available as an open set or with a choice of canopy. Suitable for mini power stations, data centres, large factories, airports, hospitals, large retail stores and the financial sector.
The FG Wilson P1500-1 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
SPARE PARTS | SERVICING | 01953 458976
- Technical Data
Manufacturer FG Wilson Standby 1500.0 kVA / 1200.0 kW Prime 1350.0 kVA / 1080.0 kW Engine Perkins - 4012-46TWG3A Alternator Leroy Somer - LL8224L Voltage 230 V Frequency 50 Hz Control Panel Deep Sea - DSE7410 - Downloadable Documents
Datasheet: Open Set P1500-1 Datasheet Datasheet: Leroy Somer LL8224L Alternator Datasheet Datasheet: Perkins 4012-46TWG3A Engine Datasheet Datasheet: Deep Sea DSE7410 Control Panel Datasheet Manual: Operators Manual Manual: Technical Manual Manual: Leroy Somer LL8114L Alternator Manual Manual: Engine Manual Manual: DSE7410MKII Control Panel Manual Stuart Group Brochure
