- Price From: £20,857.00 Excl. VAT
- Condition: New
- Stock: Contact us for Availability.
- Incoming Stock: 3 Unit/s Due In Jul 2026
- Stock Number: P220-CAE DSE

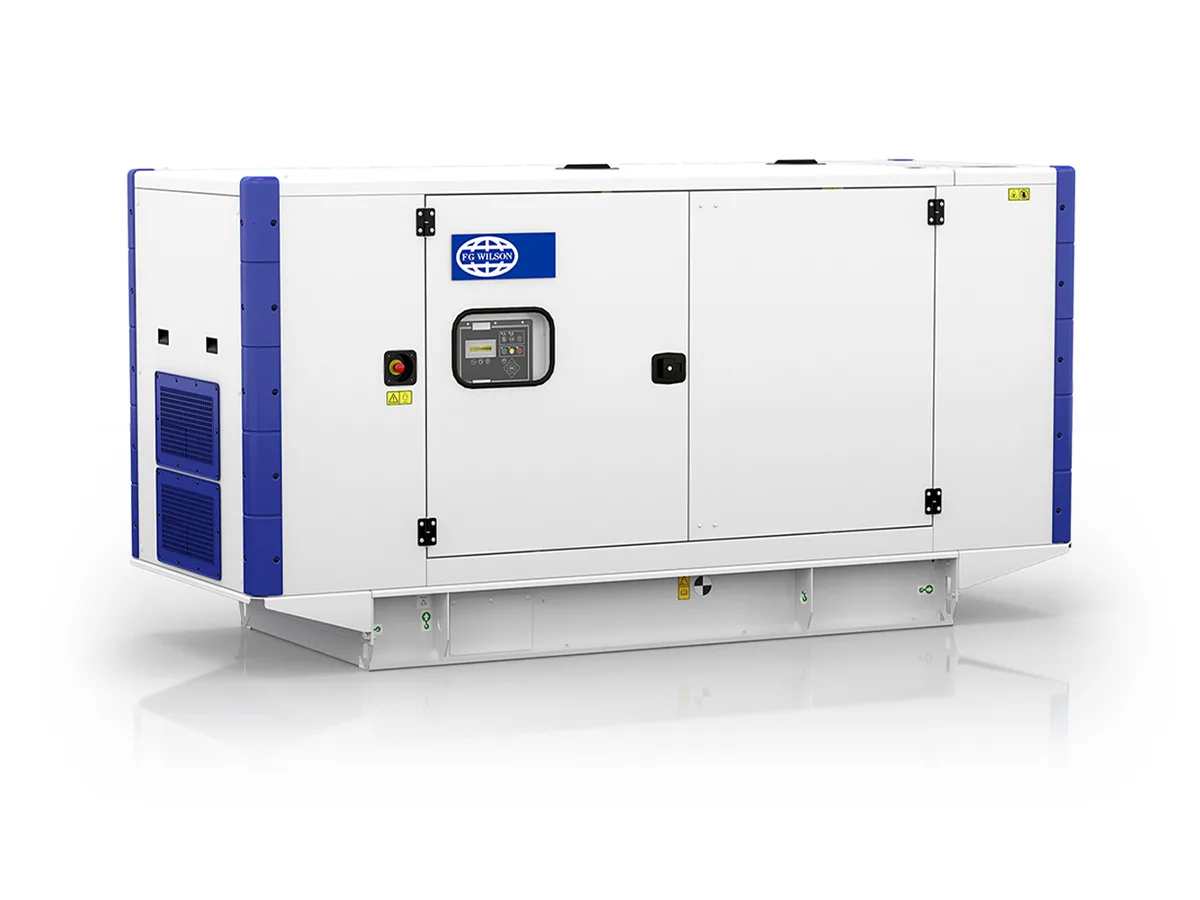

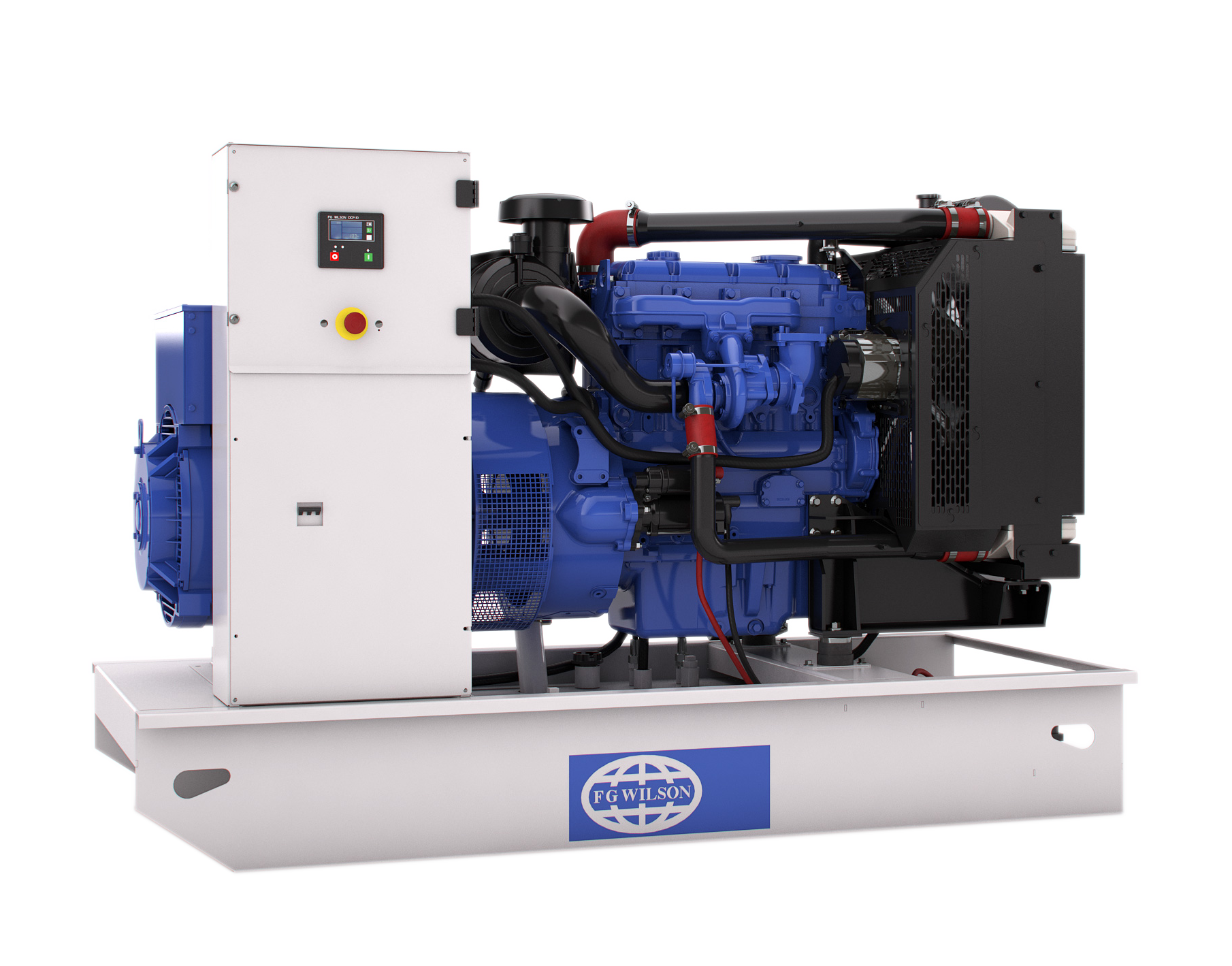

FG Wilson P220-3 Diesel Generator DSE CAE Connect
The FG Wilson P220-3 CAE generator is 220 kVA, 176 kW powered by the ultra-reliable Perkins 1106A-70TAG4 engine and is coupled to a FG Wilson FGL30120 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea 4520 control panel and has a CAE enclosure for reduced sound levels and reinforced corners with a bunded fuel tank. Complete with the FG Wilson Connect which enables remote monitoring and control of the generator set. Suitable for outdoor events, agricultural companies and remote industrial facilities.
The FG Wilson P220-3 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
- Technical Data
Manufacturer FG Wilson - P220-3 Standby 220.0 kVA / 176.0 kW Prime 200.0 kVA / 160.0 kW Phase Three-Phase Engine Perkins - 1106A-70TAG4 Alternator FG Wilson - FGL30120 Voltage 400/230 V Frequency 50 Hz Enclosure CAE Control Panel Deep Sea - 4520 Emissions Fuel Optimised - Dimensions
Length 3,520 mm Width 1,320 mm Height 1,815 mm Weight 2157.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P220-3 Datasheet: CAEEnclosure Datasheet: FG Wilson FGL30120 Alternator Datasheet: Perkins 1106A-70TAG4 Engine Manual: Perkins 1106A-70TAG4 Engine Manual: FG Wilson P220-3 Operators Datasheet: Deep Sea 4520 Control Panel Manual: FG Wilson P220-3 Technical Stuart Group Brochure
