- Price From: £15,451.00 Excl. VAT
- Condition: New
- Stock: Contact us for Availability.
- Incoming Stock: 3 Unit/s Due In Apr 2026
- Stock Number: P150-5-CAE DSE connect

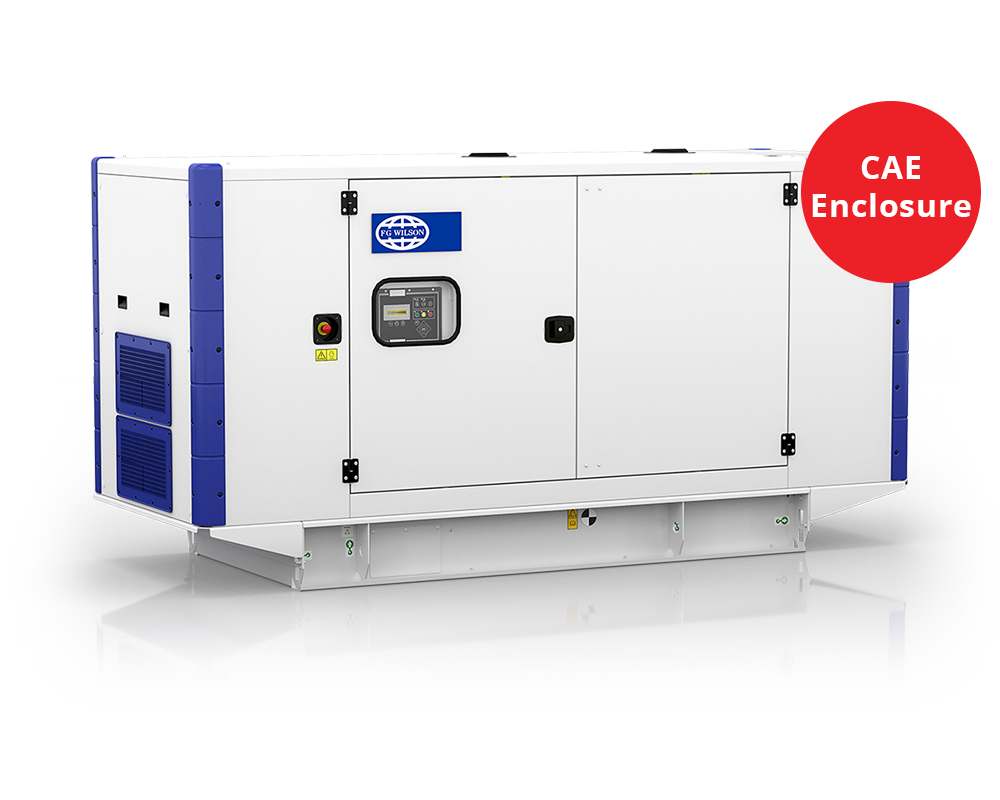

FG Wilson P150-5 Diesel Generator DSE CAE Connect
The FG Wilson P150-5 CAE generator 150 kVA, 120 kW powered by the ultra-reliable Perkins 1106A-70TG1 engine and is coupled to a FG Wilson FGL30080 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea 4520 control panel and has a CAE enclosure for reduced sound levels and reinforced corners with a bunded fuel tank. Complete with the FG Wilson Connect which enables remote monitoring and control of the generator set. Suitable for construction site cabins, residential properties, small retail shops and telecommunications.
The FG Wilson P150-5 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
- Technical Data
Manufacturer FG Wilson - P150-5 Standby 150.0 kVA / 120.0 kW Prime 135.0 kVA / 108.0 kW Phase Three-Phase Engine Perkins - 1106A-70TG1 Alternator FG Wilson - FGL30080 Voltage 400/230 V Frequency 50 Hz Enclosure CAE Control Panel Deep Sea - 4520 Emissions Fuel Optimised - Dimensions
Length 3,520 mm Width 1,120 mm Height 1,815 mm Weight 1888.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P150-5 Datasheet: CAE Enclosure Datasheet: FG Wilson FGL30080 Alternator Datasheet: Perkins 1106A-70TG1 Engine Manual: Perkins 1106A-70TG1 Engine Manual: FG Wilson P150-5 Operators Manual: FG Wilson P150-5 Technical Datasheet: Deep Sea 4520 Control Panel Manual: FG Wilson FGL30080 Alternator Stuart Group Brochure
