- Price From: £8,600.00 Excl. VAT
- Condition: New
- Stock: 7 Unit/s in Stock
- Stock Number: P55-3-CALG

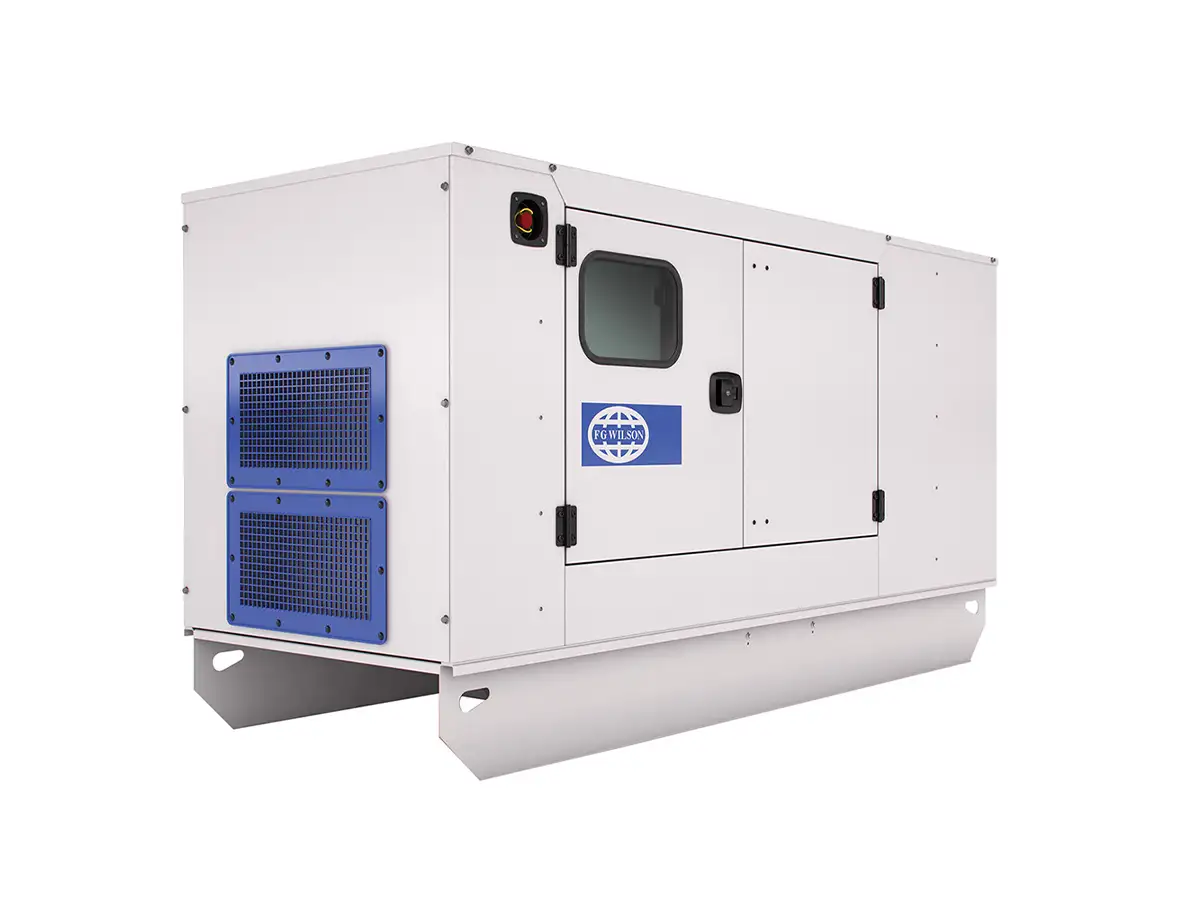

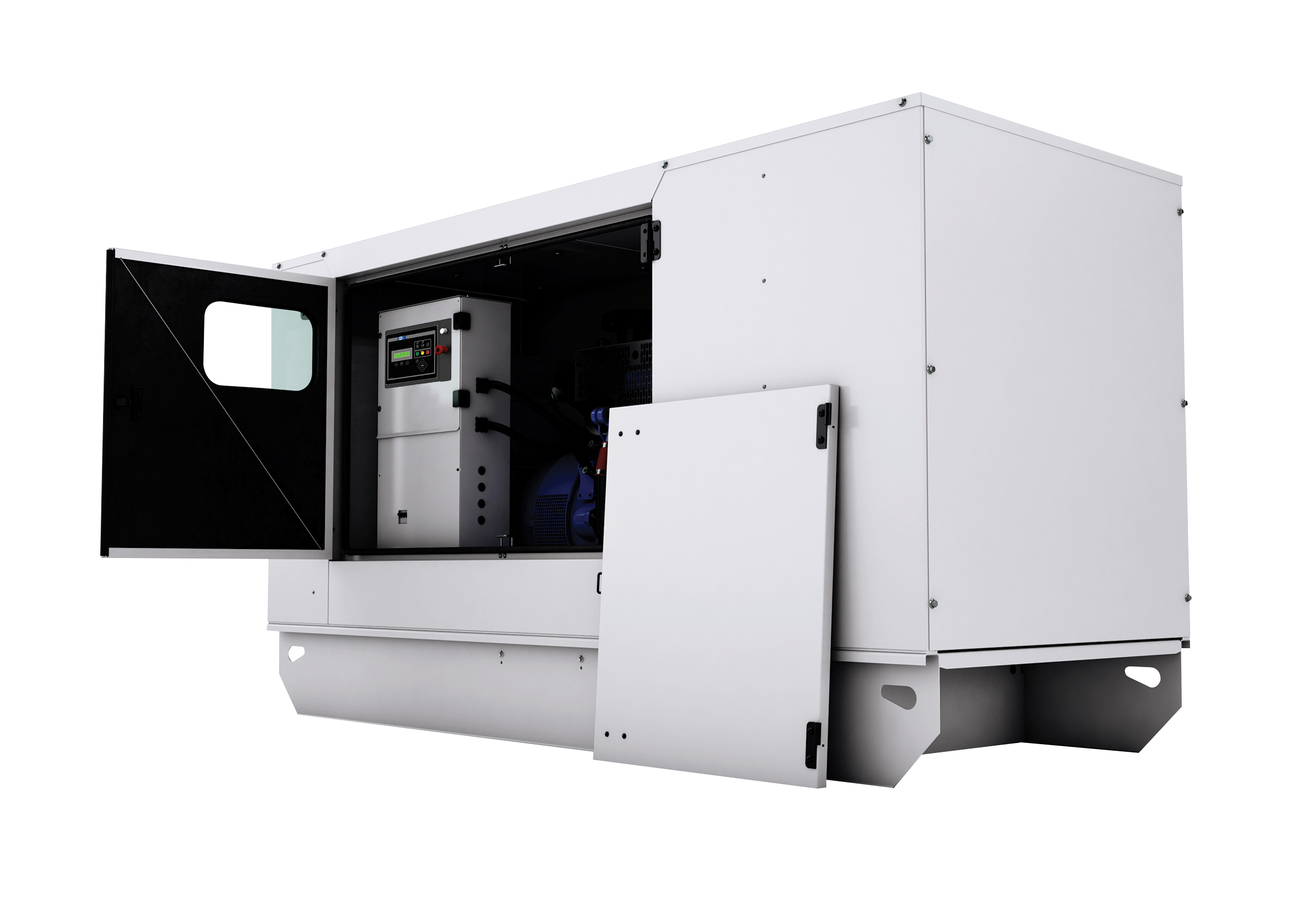

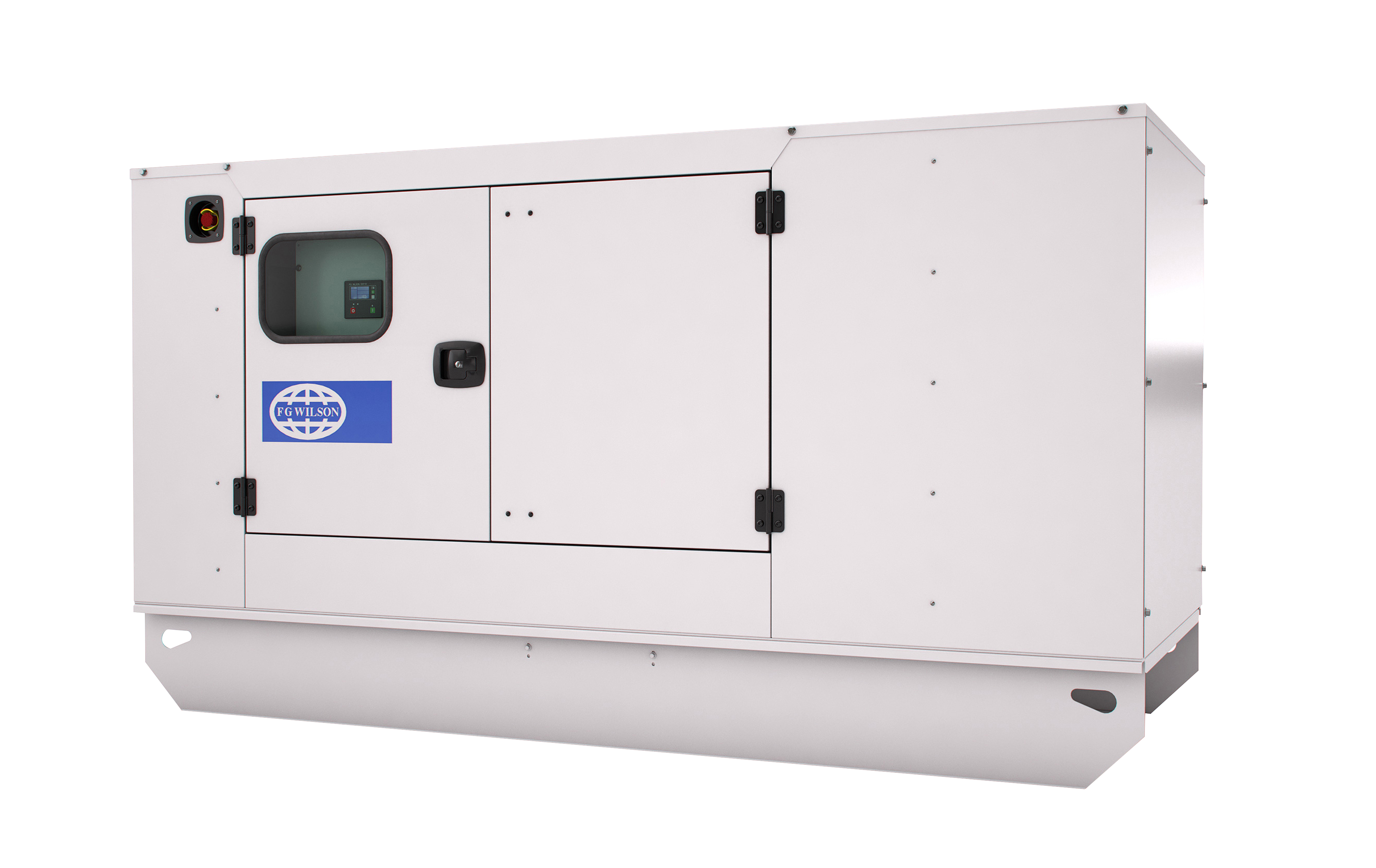

New FG Wilson P55-3 Diesel Generator CALG

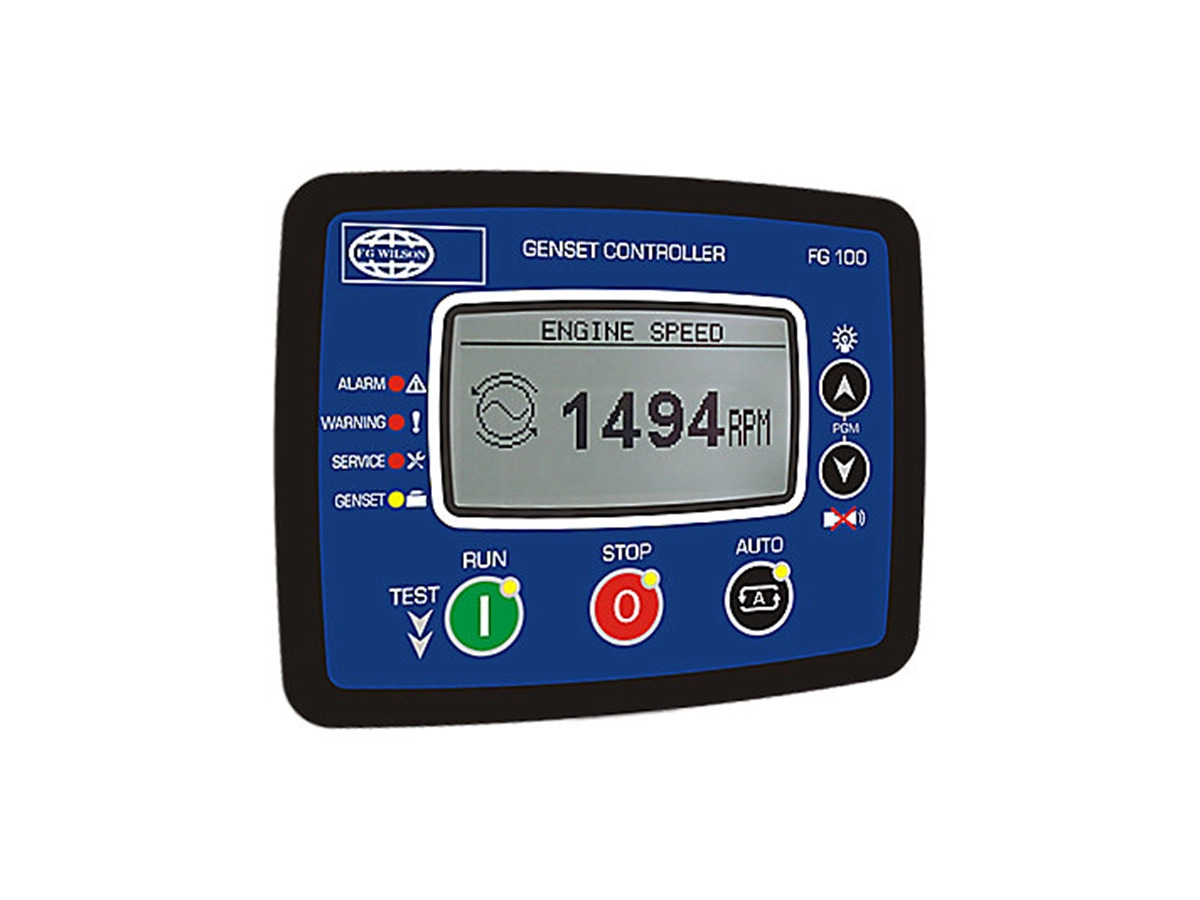

The standard spec P55-3 CALG generator is 55 kVA, 44 kW powered by the ultra-reliable Perkins 1103A-33TG2 engine and is coupled to a FG Wilson FGL20070 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a FG Wilson FG100 control panel. Suitable for construction site cabins, residential properties, small retail shops and telecommications.
The FG Wilson P55-3 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
Diesel Generator specs in stock:
Diesel Generator 1 & 2: is equipped with a Deep Sea 4520 control panel, a Leroy Somer alternator, a neutral earth link, a 3-pole circuit breaker, a water jacket heater, a calcium battery with charger, and a single skin tank to DEFRA bunded tank, all housed within a reduced-sound galvanised steel enclosure protected by a durable powder-coat finish, CE/UKCA certifed.
Diesel Generator 3: is equipped with a Deep Sea 4520 control panel, a neutral earth link, a 3-pole circuit breaker, a water jacket heater, a calcium battery and charger, and a single skin tank to DEFRA bunded tank, all housed within a reduced-sound galvanised steel enclosure protected by a durable powder-coat finish, CE/UKCA certified.
More specs available, contact our sales team.
- Technical Data
Manufacturer FG Wilson - P55-3 Standby 55.0 kVA / 44.0 kW Prime 50.0 kVA / 40.0 kW Engine Perkins - 1103A-33TG2 Voltage 400/230 V Frequency 50 Hz Enclosure CALG Emissions Fuel Optimised - Dimensions
Length 2,291 mm Width 1,026 mm Height 1,426 mm Weight 984.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents

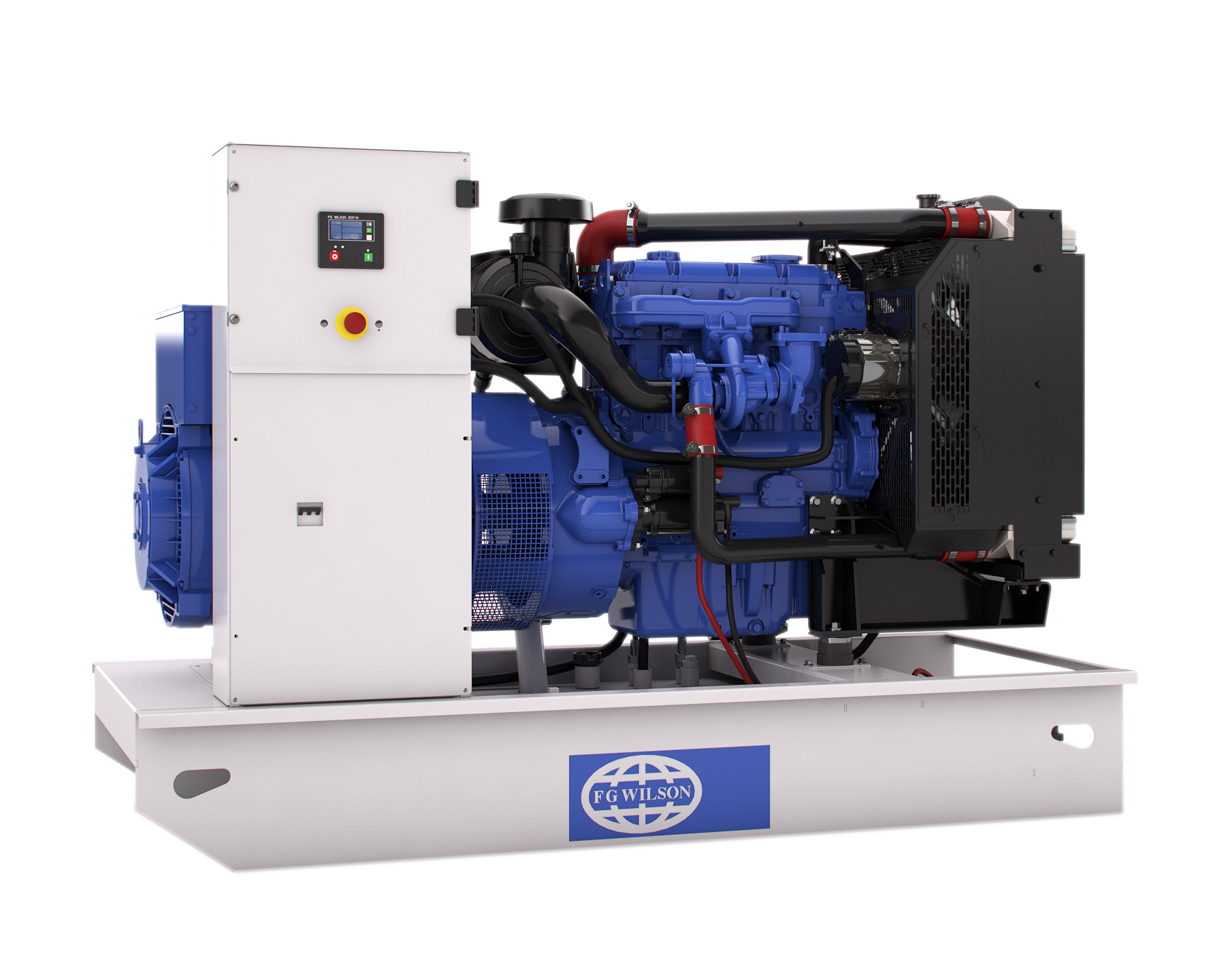

Datasheet: Open Set P55-3 Datasheet Datasheet: Enclosure CALG Datasheet Datasheet: Perkins 1103A-33TG2 Engine Datasheet Datasheet: DSE4520 Control Panel Datasheet Manual: Engine Manual Manual: Operators Manual Manual: Technical Manual Stuart Group Brochure
