FG Wilson P330-5 Diesel Generator
4 Images
- Price: On Request
- Condition: New
- Stock: Contact us for Availability.
- Stock Number: P330-4

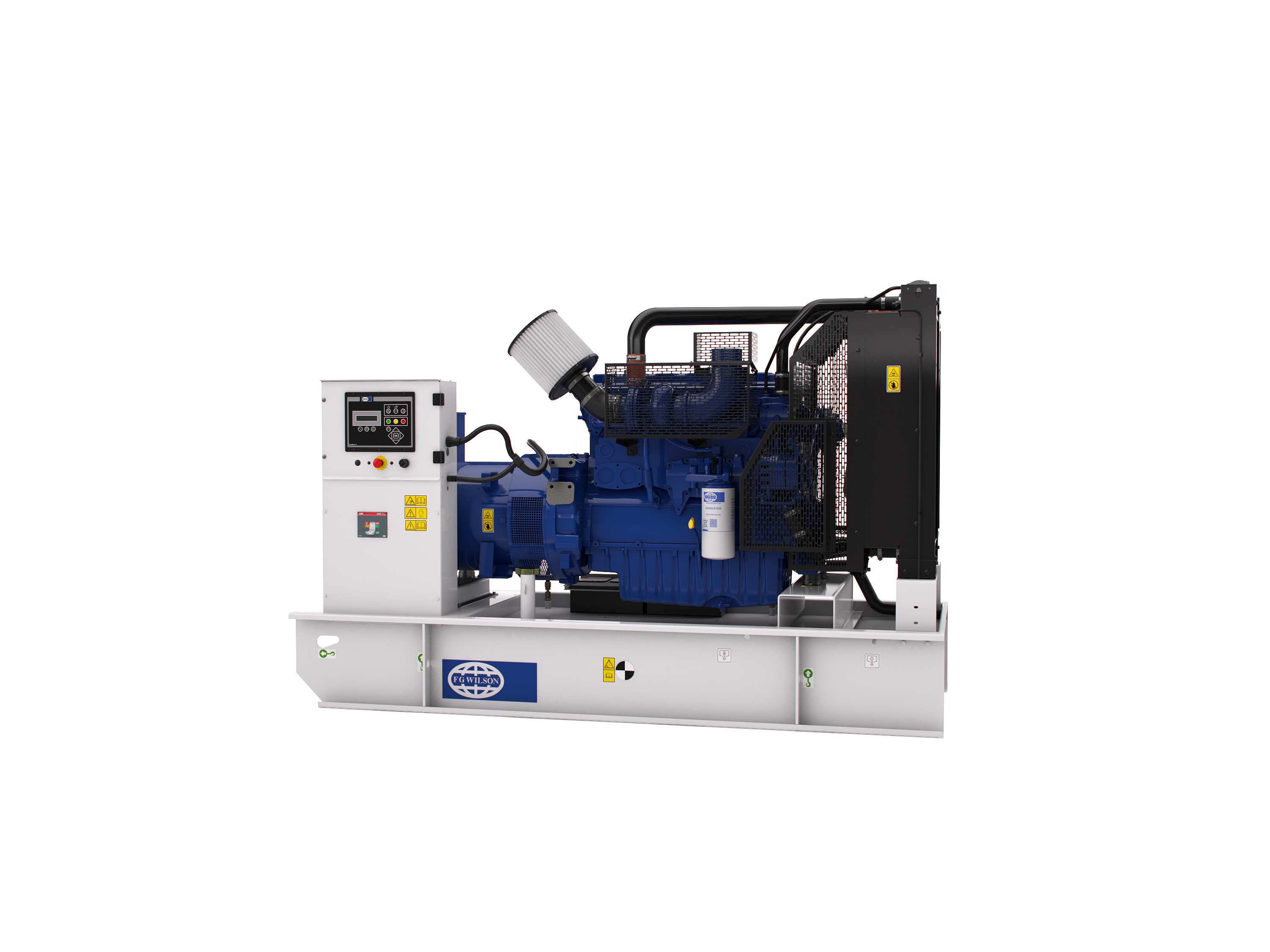

FG Wilson P330-5 Diesel Generator
The standard spec P330-5 generator is 330 kVA, 264 kW powered by the ultra-reliable Perkins 1506A-E88TAG5 engine and is coupled to a FG Wilson FG26A250 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a DSE7410 control panel and is available as an open set or with a choice of canopy. Suitable for outdoor events, agricultural companies and remote industrial facilities.
The FG Wilson P330-5 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
- Technical Data
Manufacturer FG Wilson - P330-5 Standby 330.0 kVA / 264.0 kW Prime 300.0 kVA / 240.0 kW Engine Perkins - 1506A-E88TAG5 Alternator FG Wilson - FG26A250 Voltage 230 V Frequency 50 Hz Control Panel Deep Sea - DSE7410 - Dimensions
Length 3,975 mm Width 1,400 mm Height 1,950 mm Weight 2854.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P330-5 Generator Datasheet: Level 2 Enclosure Datasheet: FG26A250 Alternator Datasheet: Perkins 1506A-E88TAG5 Engine Datasheet: DSE 7410 Control Panel Manual: Operators Manual: Technical Manual: FGL20 Alternator Manual: Perkins 1506 Engine Manual: DSE 7410 Control Panel Stuart Group Brochure
