FG Wilson P400-3 Diesel Generator
2 Images
- Price From: £41,800.00 Excl. VAT
- Condition: New
- Stock: 2 Unit/s in Stock
- Stock Number: P400-3-Level 2

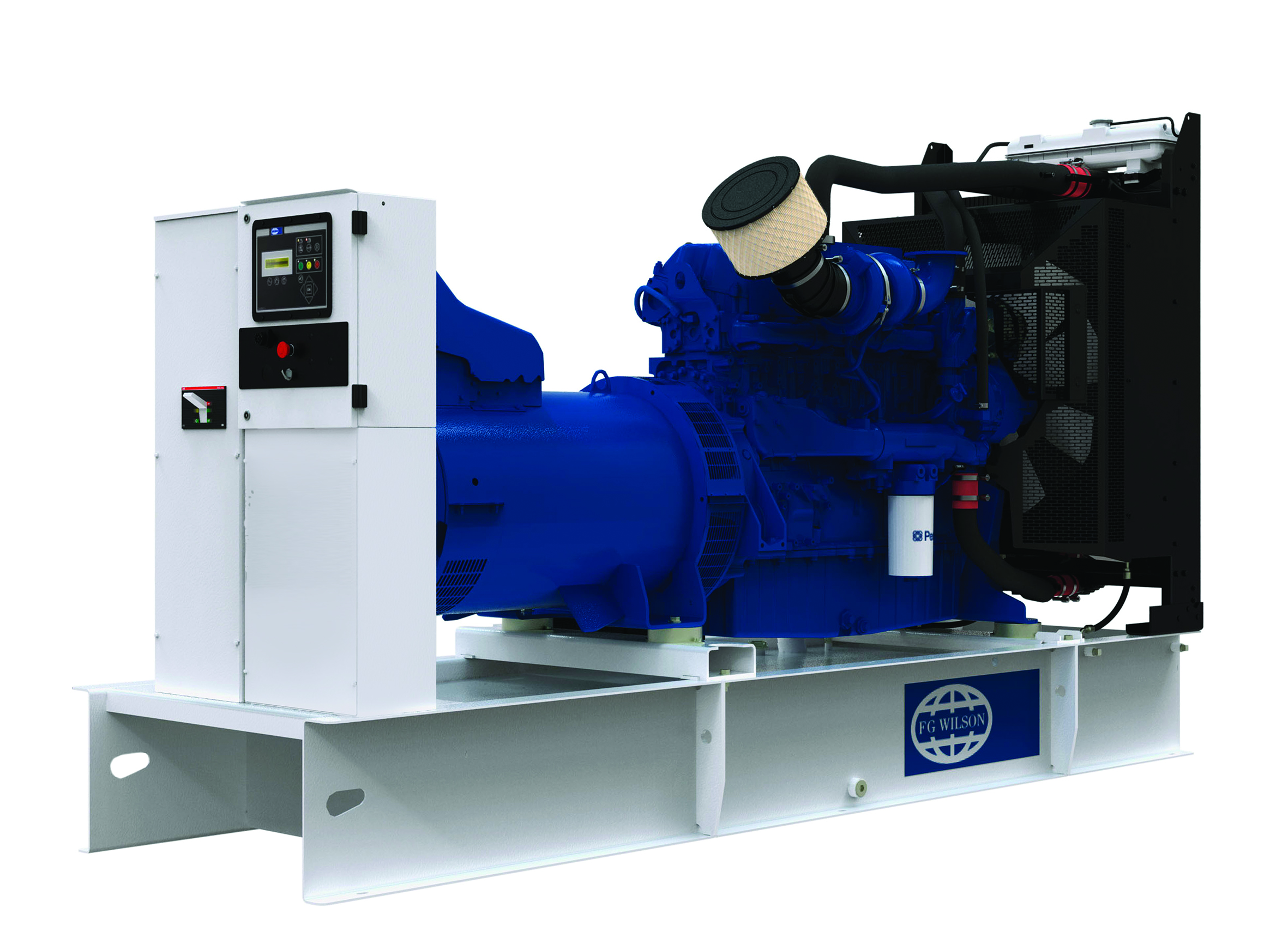

FG Wilson P400-3 Diesel Generator
The FG Wilson P400-3 generator is 400 kVA, 320 kW powered by the ultra-reliable Perkins 2206A-E13TAG2 engine and is coupled to a FG Wilson FG50070 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea 8610 control panel with a level 2 enclosure for reduced sound levels with a bunded fuel tank. Complete with the FG Wilson Connect which enables remote monitoring and control of the generator set. Suitable for outdoor events, agricultural companies and remote industrial facilities.
The FG Wilson P450-3 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
- Technical Data
Manufacturer FG Wilson - P400-3 Standby 400.0 kVA / 320.0 kW Prime 350.0 kVA / 280.0 kW Phase Three-Phase Engine Perkins - 2206A-E13TAG2 Alternator FG Wilson - FGL50070 Enclosure Level 2 Control Panel Deep Sea - DSE 8610 - Dimensions
Length 4,930 mm Width 1,658 mm Height 2,147 mm Weight 4575.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P400-3 Datasheet: FG Wilson FGL50070 Alternator Datasheet: Perkins 2206A-E13TAG2 Engine Manual: FG Wilson P400-3 Operators Manual: FG Wilson P400-3 Technical Datasheet: Level 2 Enclosure Manual: Perkins 2206A-E13TAG2 Engine Datasheet: Deep Sea 8610 Control Panel Stuart Group Brochure
