Used Broadcrown Perkins 800 kVA Diesel Generator
8 Images
- Price: On Request
- Condition: Used (Good Condition)
- Stock: 1 Unit/s in Stock
- Stock Number: XP80039
Used Broadcrown Perkins 800 kVA Diesel Generator

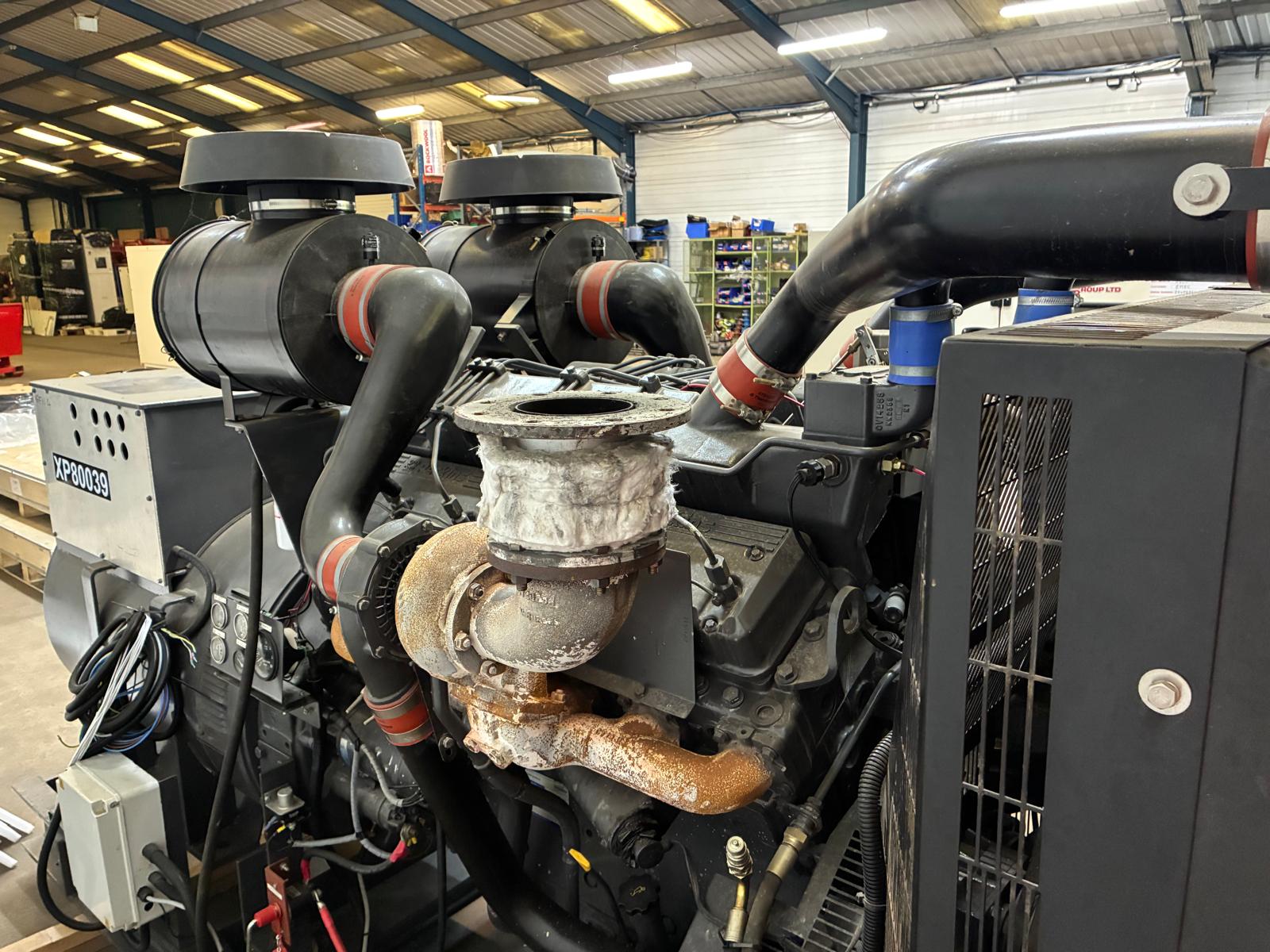

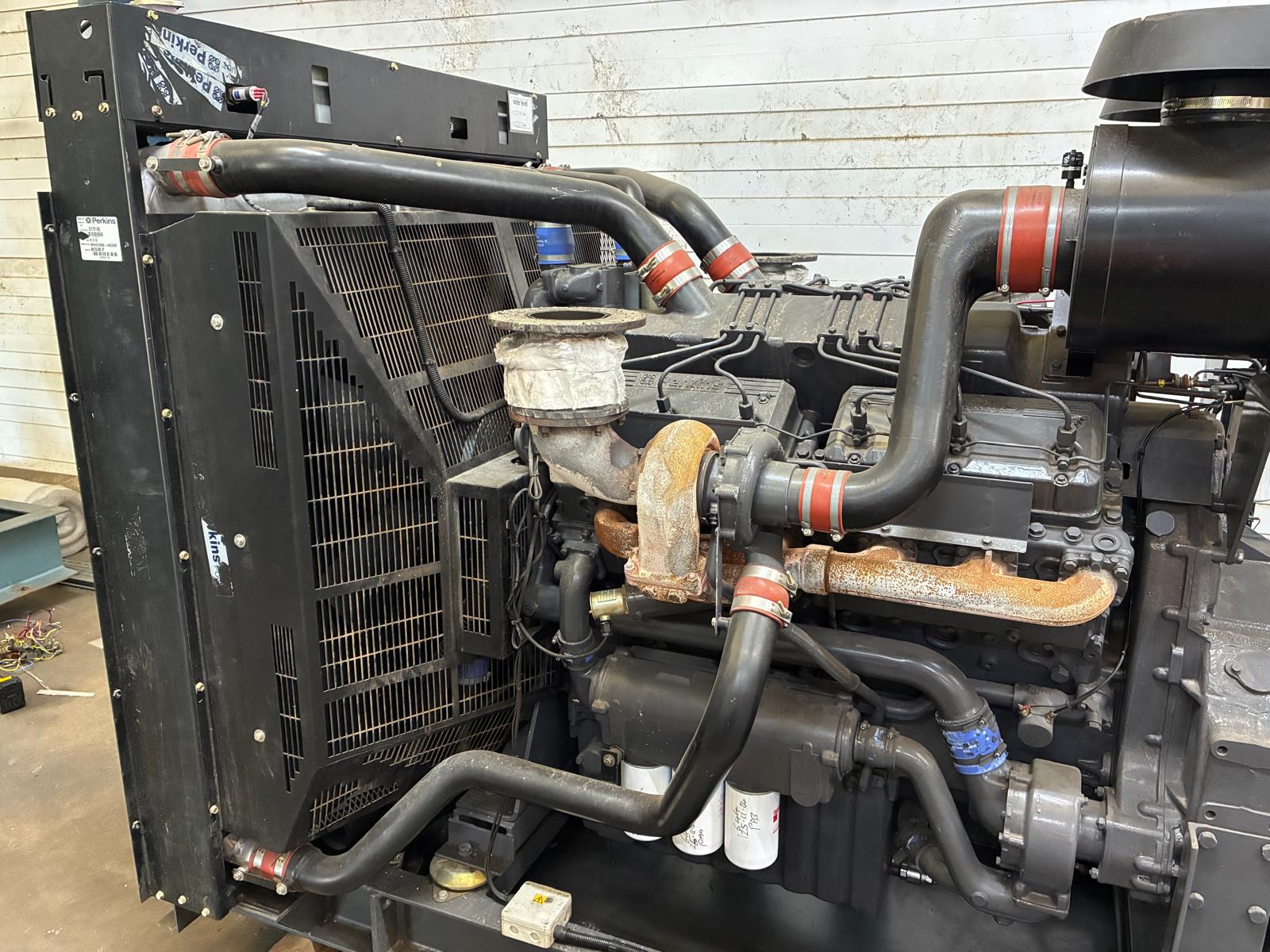

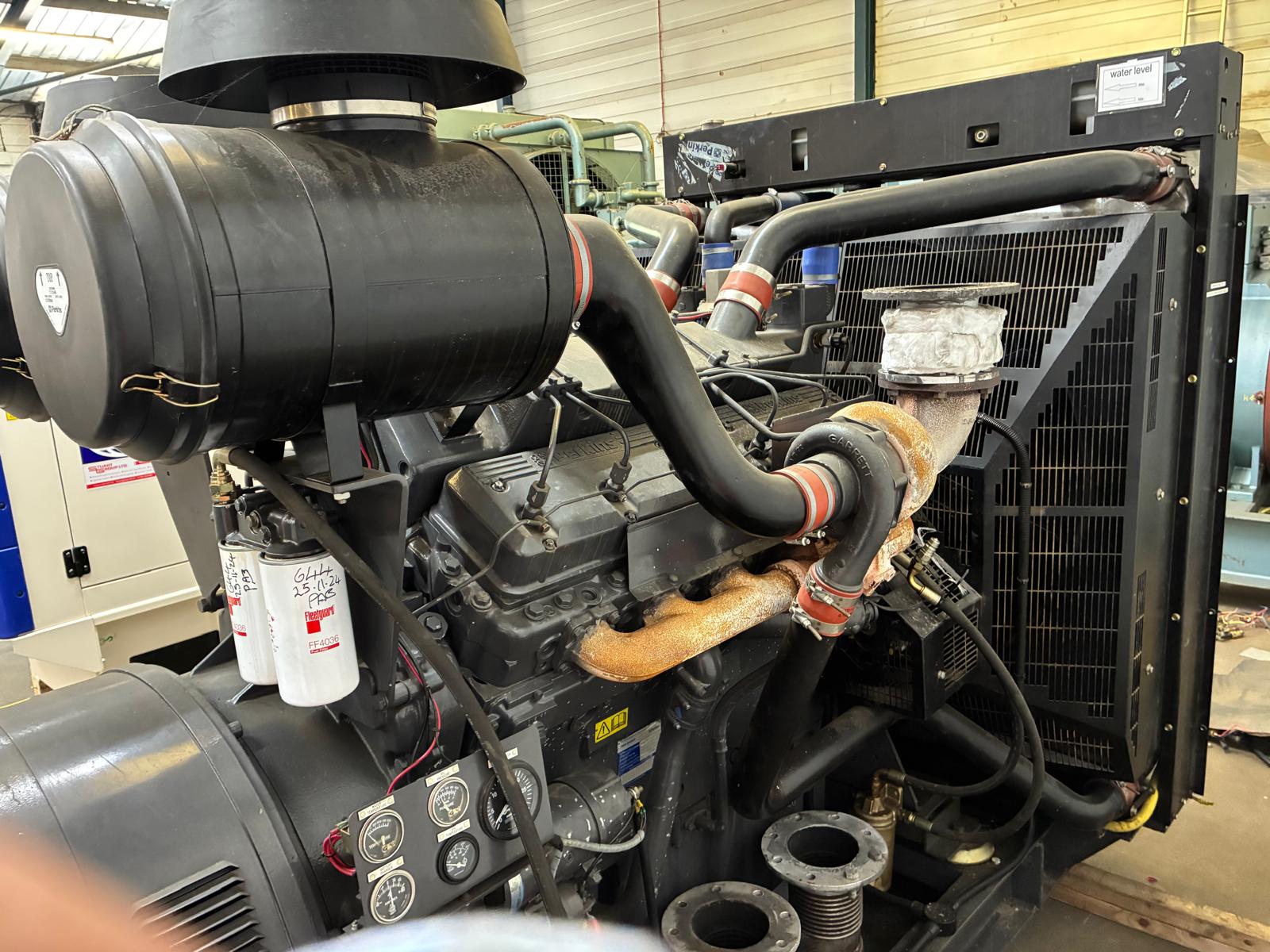

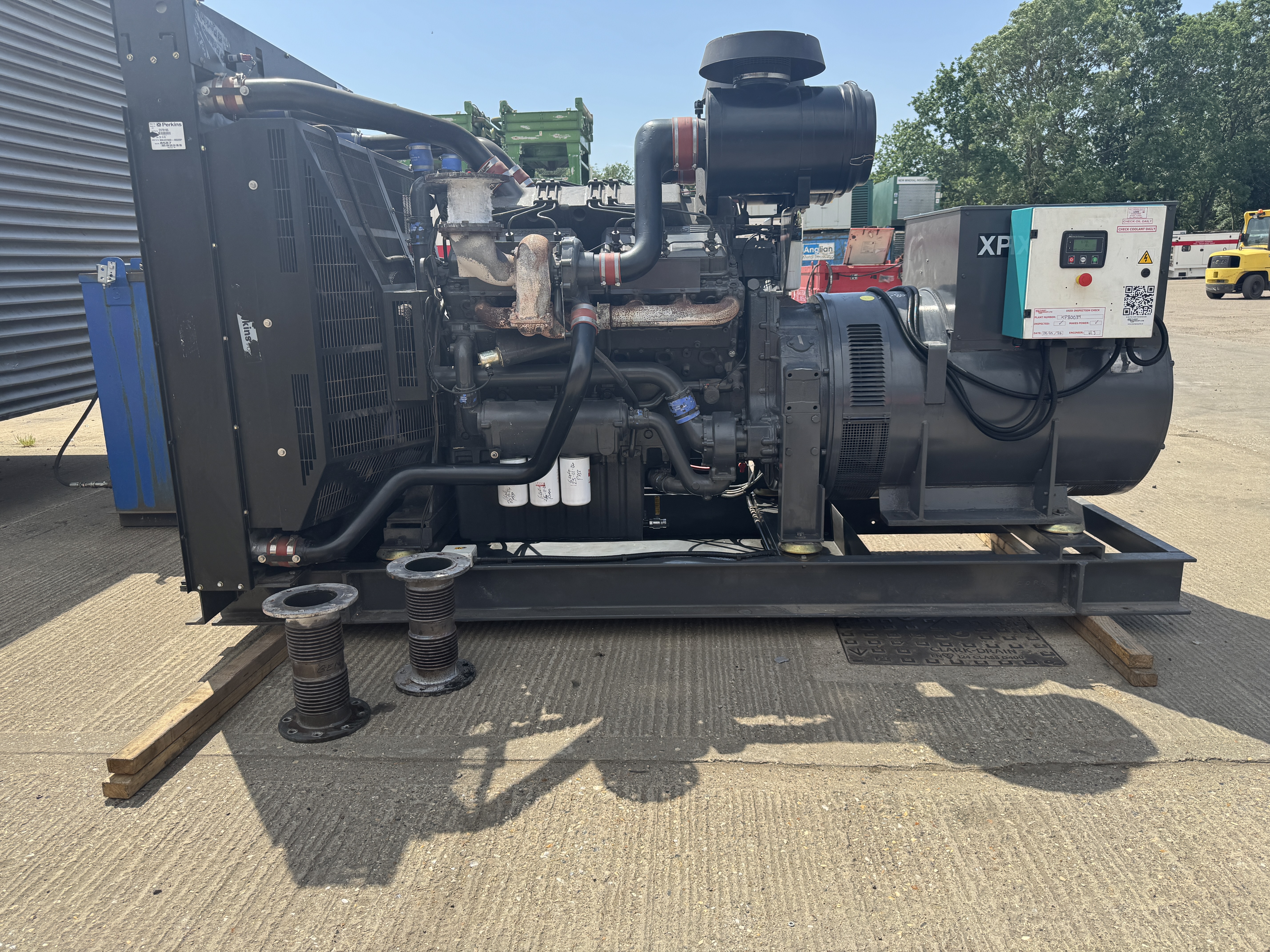

Used Broadcrown 800kVA / 640kW standby diesel generator, powered by a Perkins 3012TAG2A engine, running a Marelli 415 Volts, 1112 Amps, 50Hz alternator. It is controlled by a Deep Sea 4520 control panel
All used units are sold in good working order, tested, and serviced at our workshop before dispatch, complete with industry-leading return to base warranty available.
Disclaimer:
Hour meter readings are shown for guidance only and cannot be guaranteed.
Purchasers should satisfy themselves as to the condition, usage and suitability of pre-owned equipment prior to purchase
- Technical Data

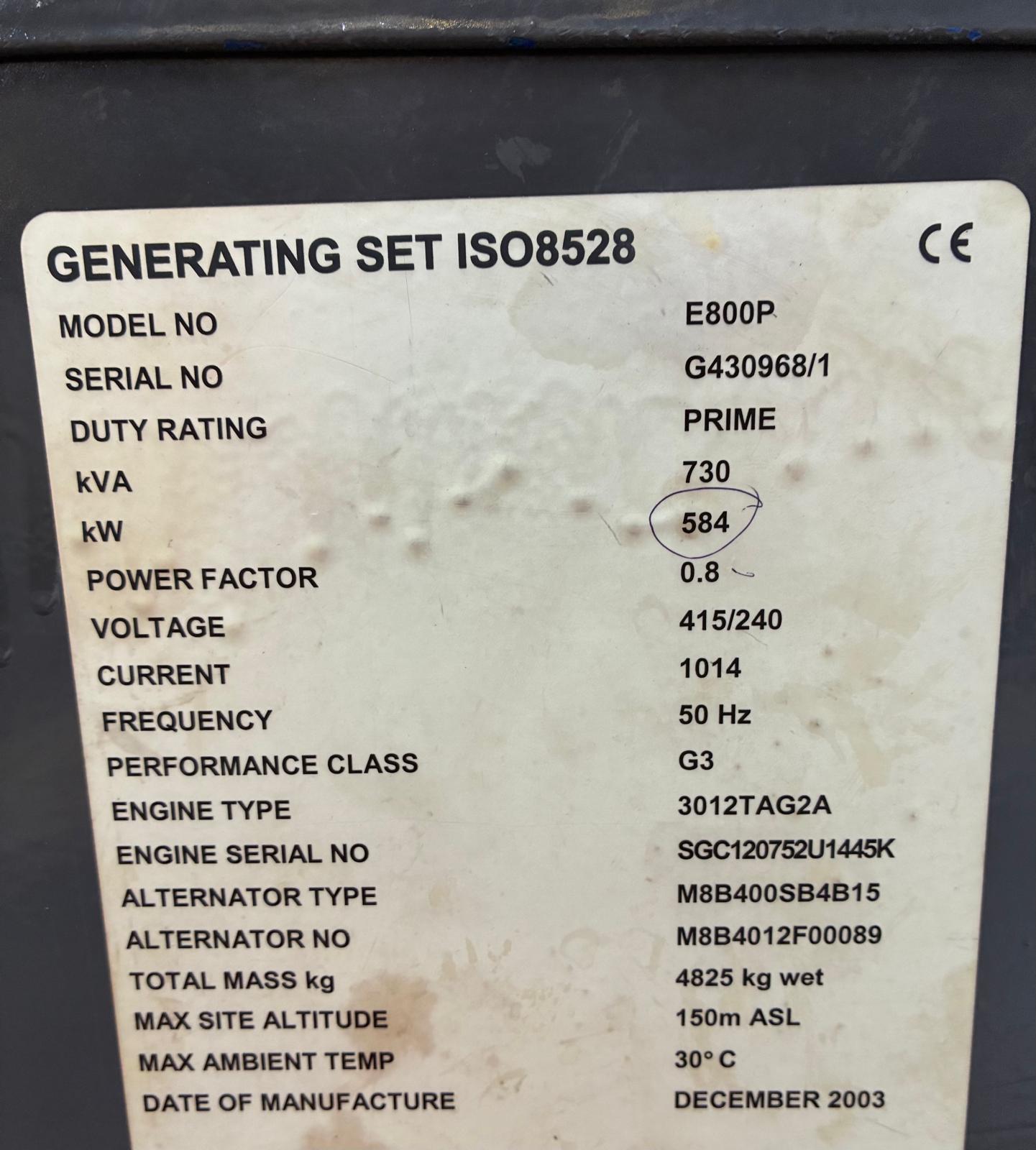

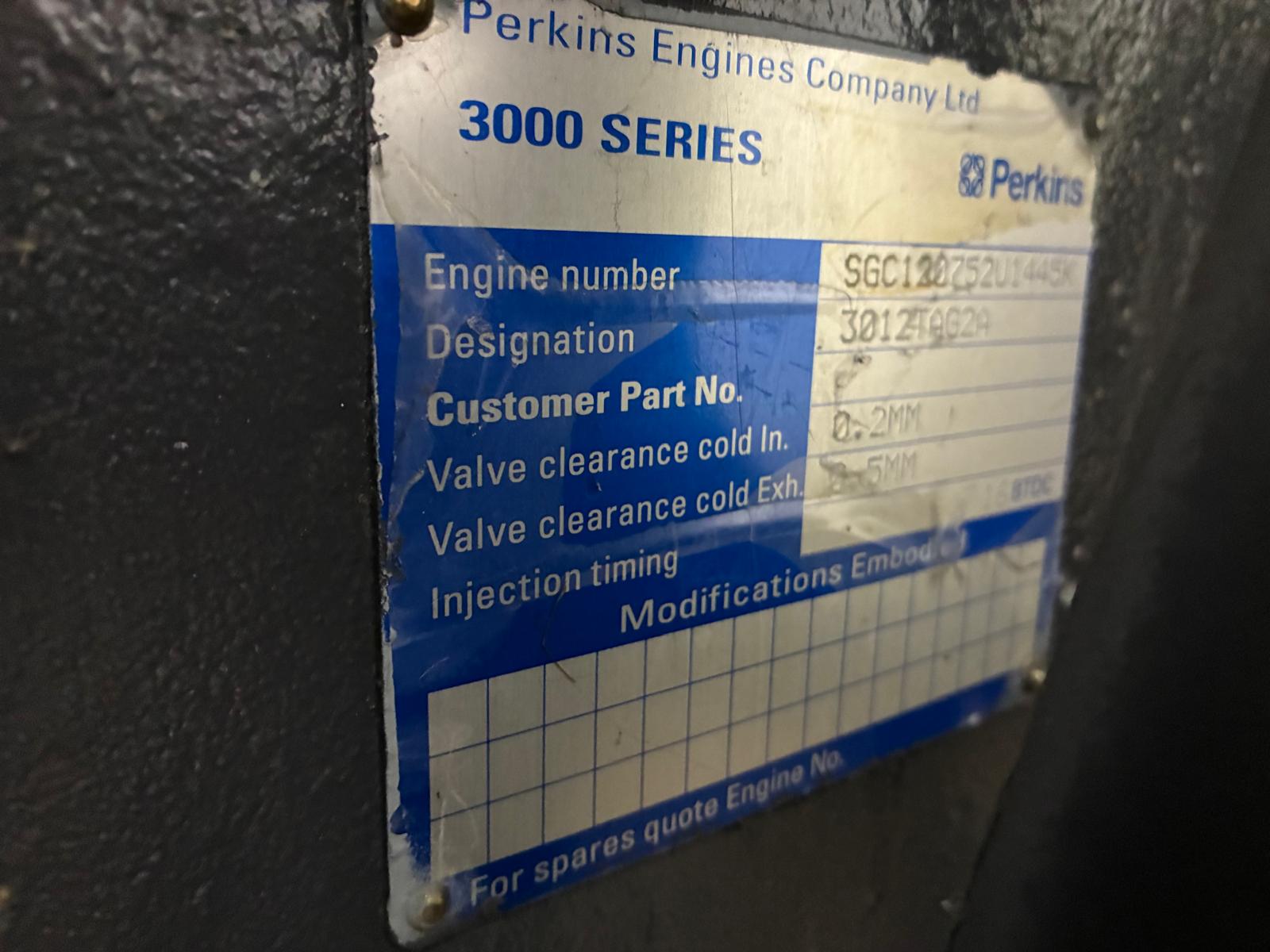

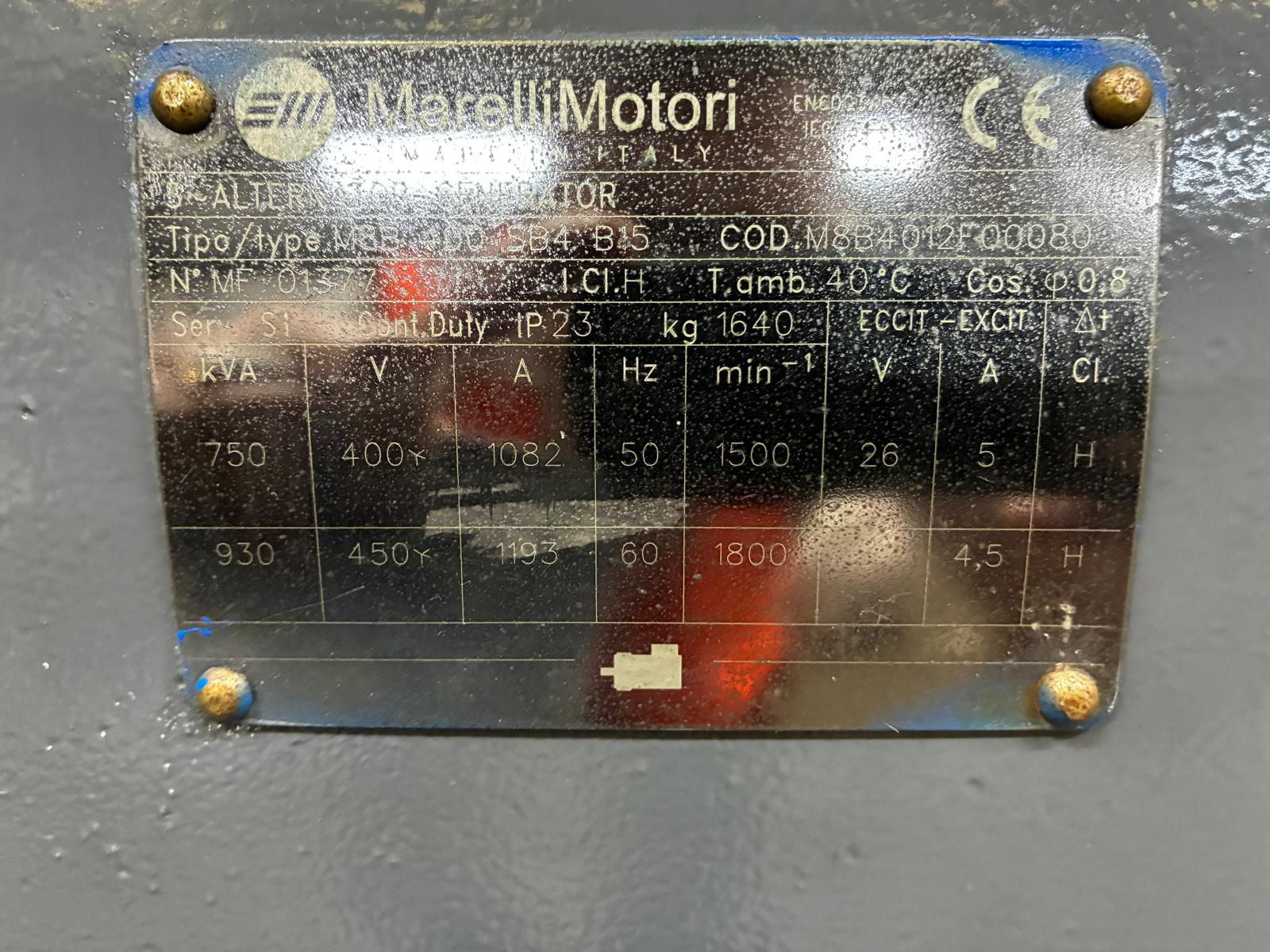

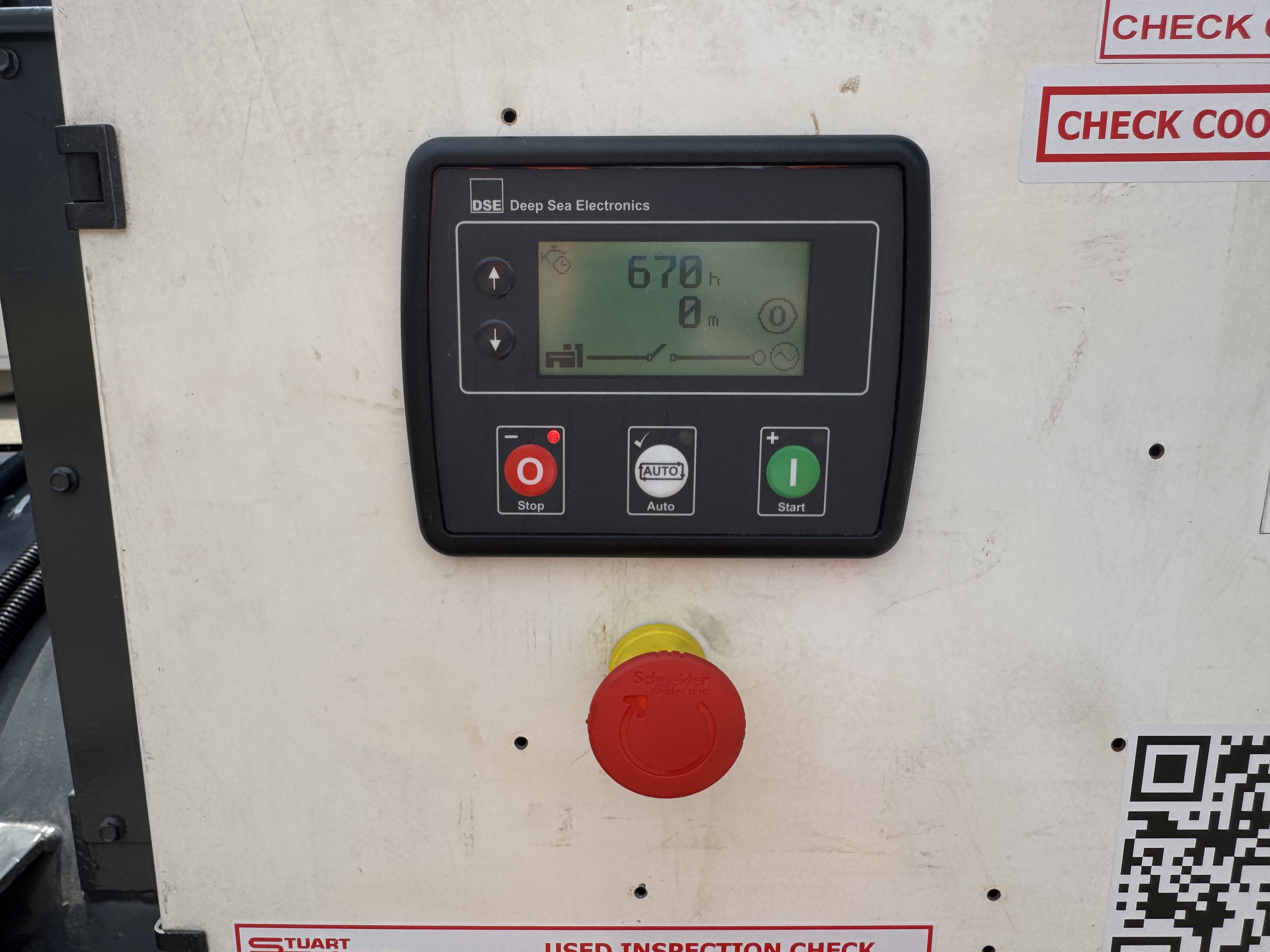

Manufacturer Broadcrown - E800P Serial Number G430968/1 Standby 800.0 kVA / 640.0 kW Prime 730.0 kVA / 584.0 kW Engine Perkins - 3012TAG2A Engine Hours 669 hrs Alternator Marelli - M8B400 SB4B15 Voltage 415 V Current 1112.0 A Frequency 50 Hz Control Panel Deep Sea - DSE 4520 - Dimensions
Length 3,400 mm Width 1,540 mm Height 2,000 mm Weight 4825.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Used Broadcrown Perkins 800 kVA Diesel Generator Datasheet: Deep Sea Control Panel 4520 Stuart Group Brochure
