FG Wilson P500-3 Diesel Generator
- Price: On Request
- Condition: New
- Stock: Contact us for Availability.
- Stock Number: P500-3

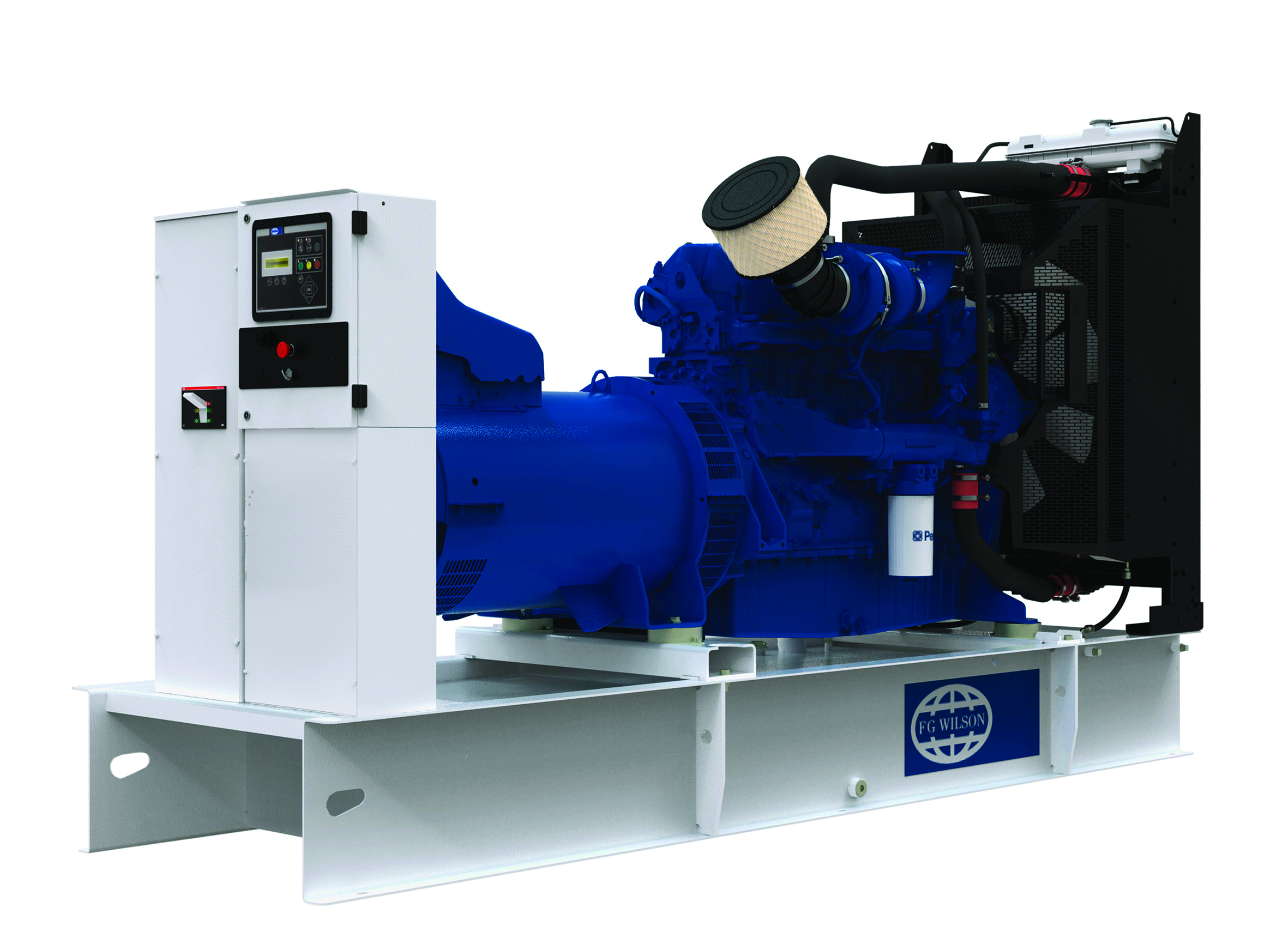

FG Wilson P500-3 Diesel Generator

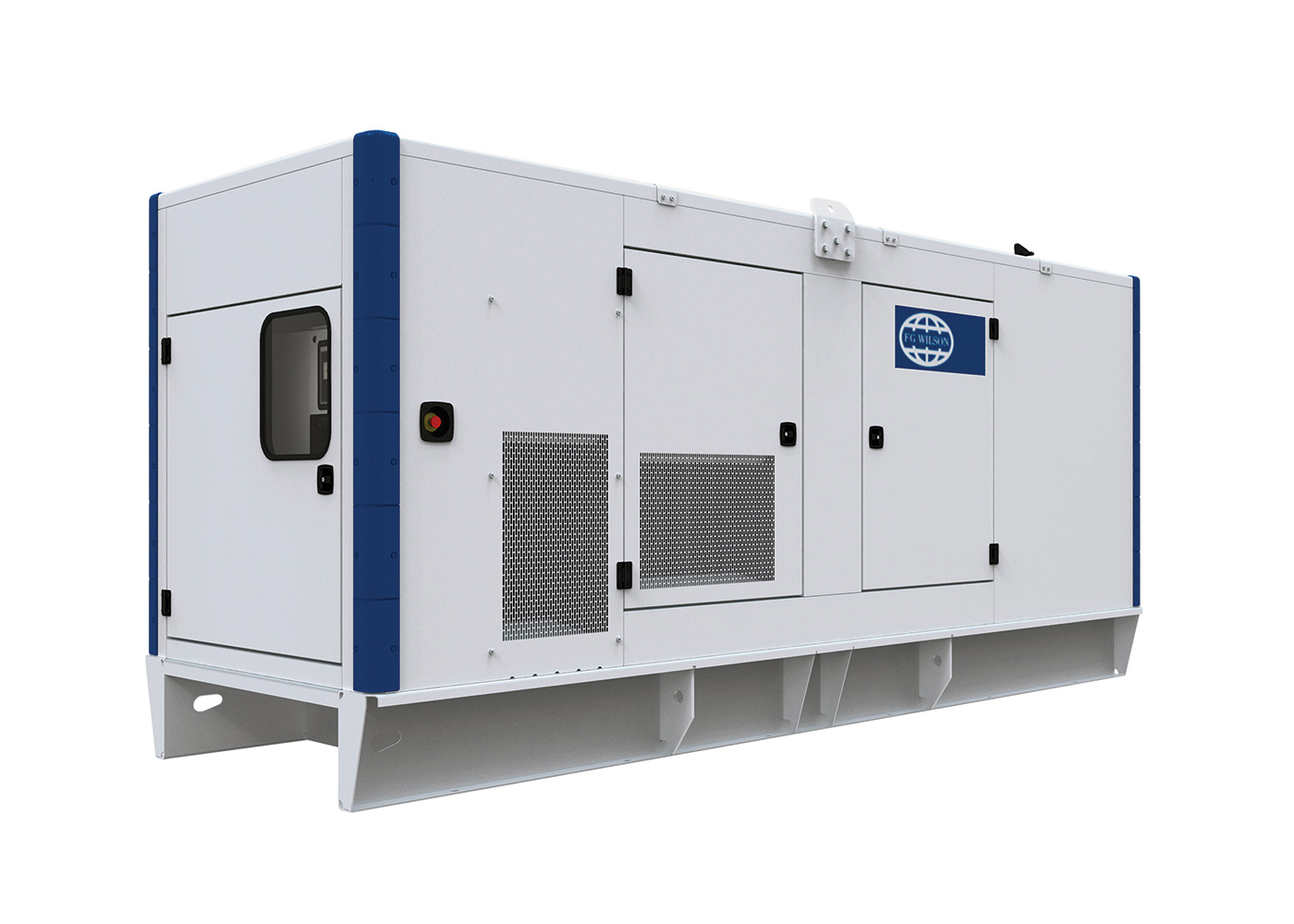

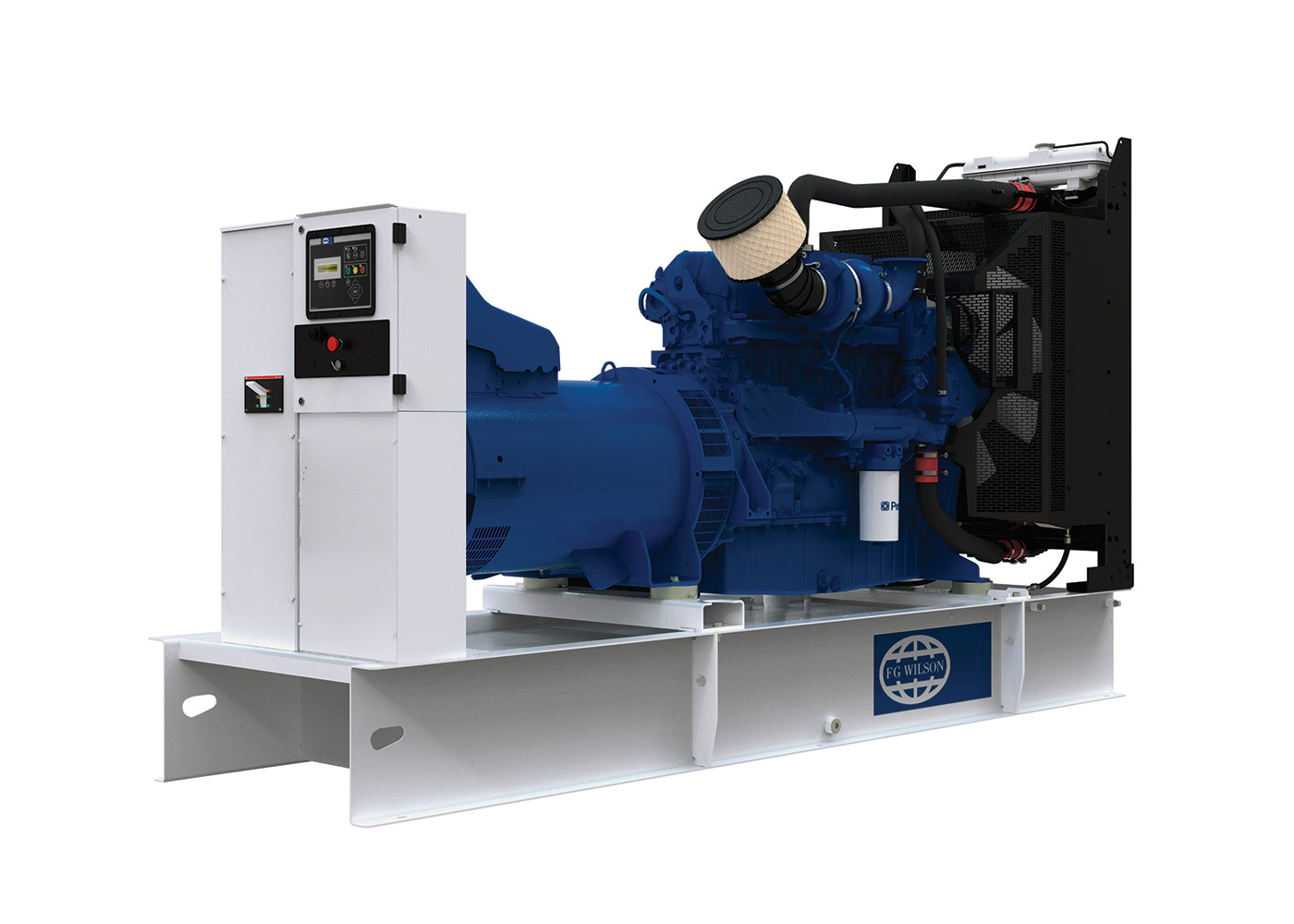

The standard spec P500-3 generator is 500 kVA, 400 kW powered by the ultra-reliable Perkins 2506A-E15TAG1 engine and is coupled to a FG Wilson FG29A360 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a FG Wilson FG100 control panel and is available as an open set or with a choice of canopy. Suitable for outdoor events, agricultural companies and remote industrial facilities.
The FG Wilson P500-3 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
SPARE PARTS | SERVICING | 01953 458976
- Technical Data
Manufacturer FG Wilson Standby 500.0 kVA / 400.0 kW Prime 455.0 kVA / 364.0 kW Engine Perkins - 2506A-E15TAG1 Alternator FG Wilson - FG29A360 Voltage 230 V Frequency 50 Hz Control Panel FG Wilson - FG100 Emissions Fuel Optimised - Downloadable Documents
Datasheet: Open Set P500-3 Datasheet Datasheet: Enclosures Datasheet: FG Wilson FG29A360 Alternator Datasheet Datasheet: Perkins 2506A-E15TAG1 Engine Datasheet Datasheet: FG Wilson FG100 Control Panel Datasheet Manual: Operators Manual Manual: Technical Manual Manual: FG29A360 Alternator Manual Manual: Engine Manual Manual: FG100 Control Panel Manual Stuart Group Brochure
