New FG Wilson P850-1 Diesel Generator CALGL2H
4 Images
- Price From: £79,000.00 Excl. VAT
- Condition: New
- Stock: Contact us for Availability.
- Stock Number: P850-1-CALGL2H

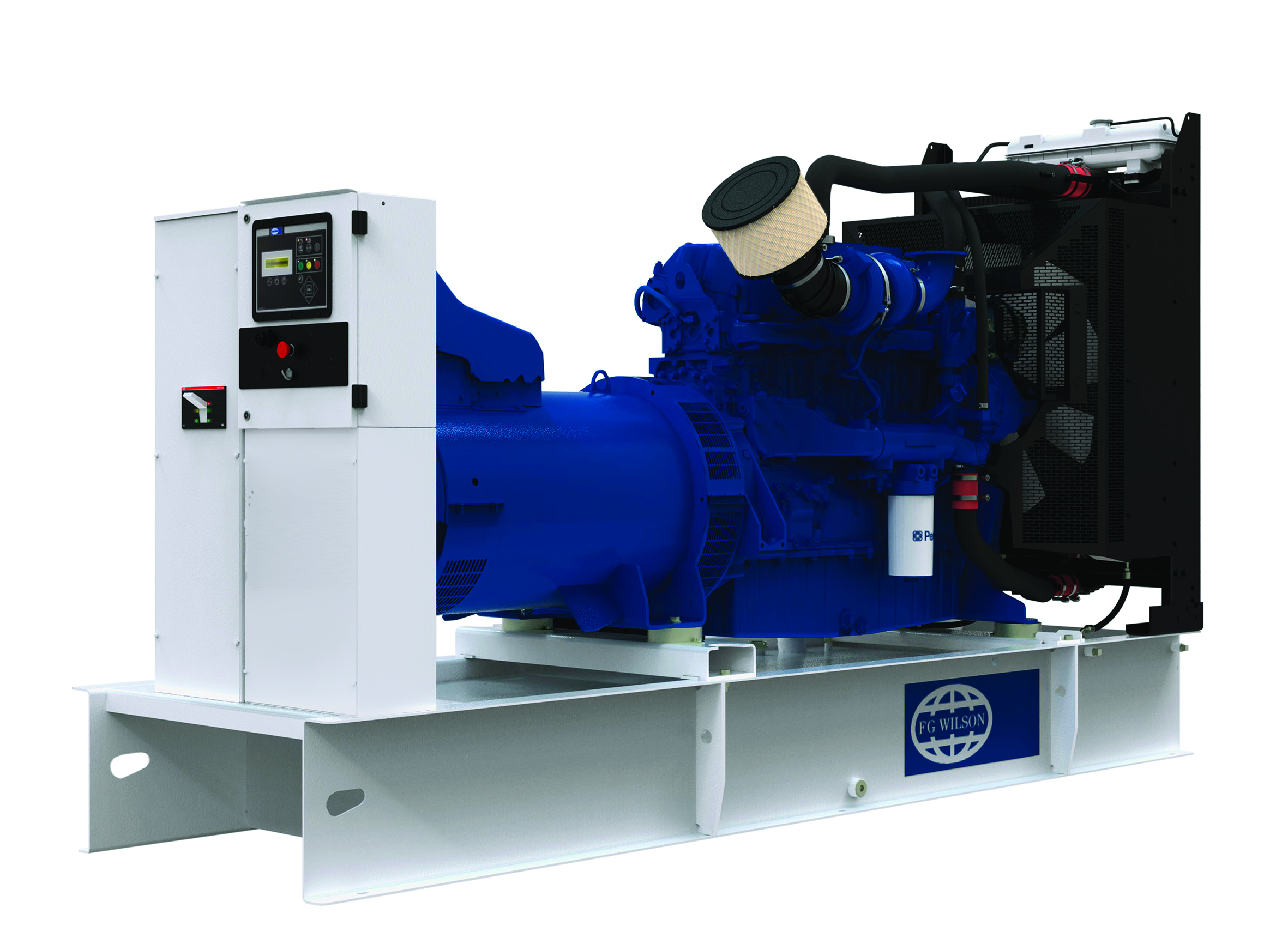

New FG Wilson P850-1 Diesel Generator CALGL2H

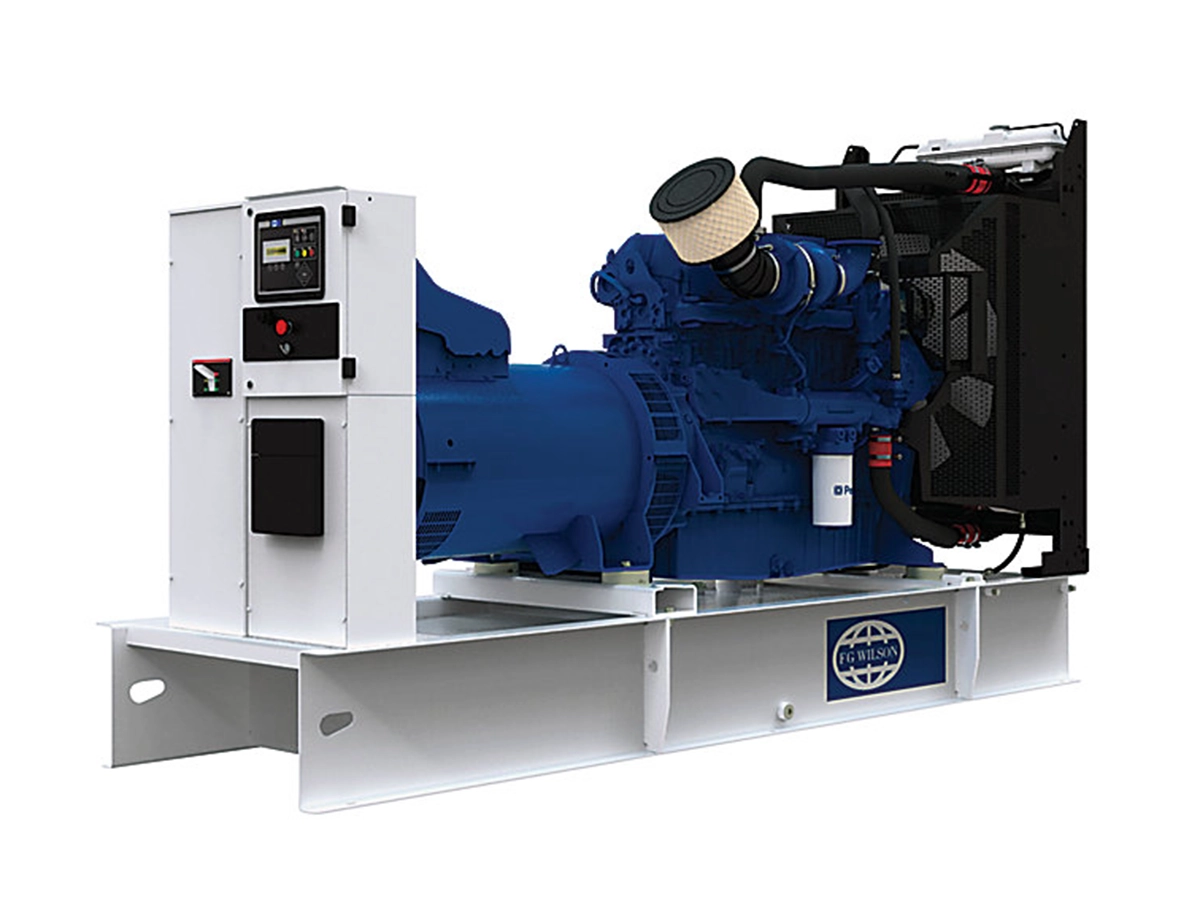

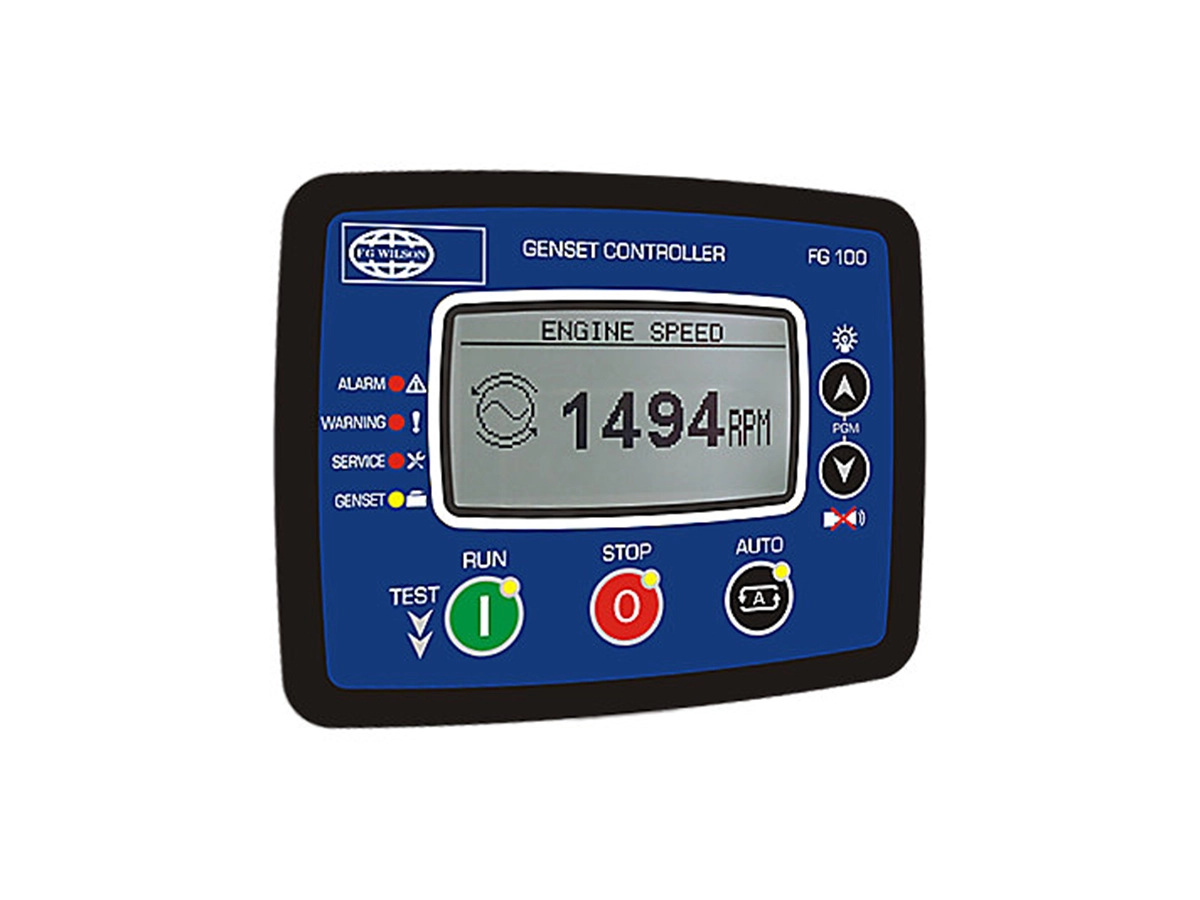

The standard spec P850-1 generator 850 kVA, 680 kW powered by the ultra-reliable Perkins 2806A-E18TTAG5 engine and is coupled to a Leroy Somer LL7224L 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a FG Wilson FG100 control panel. Suitable for outdoor events, agricultural companies and remote industrial facilities.
The FG Wilson P850-1 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
SPARE PARTS | ACCESSORIES | SERVICING | 01953 458976
- Technical Data

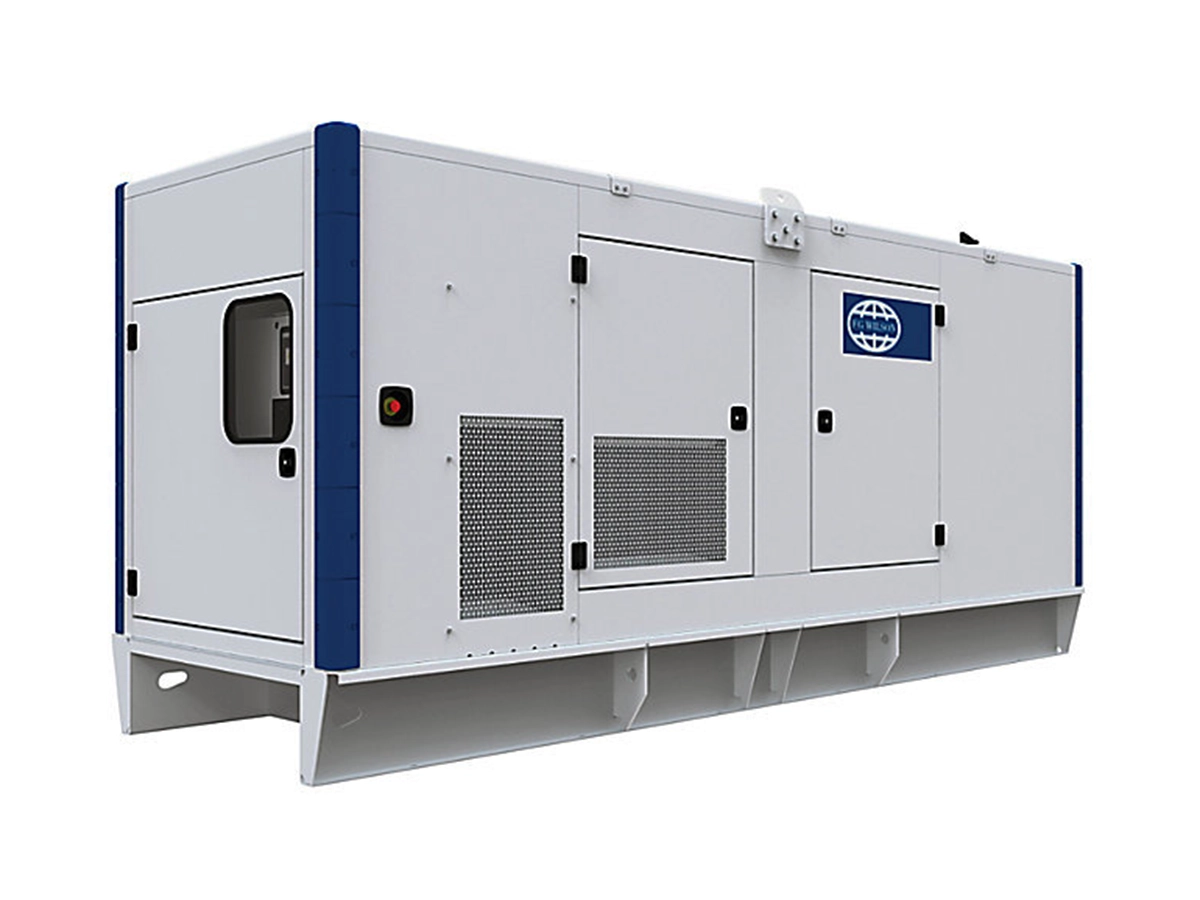

Manufacturer FG Wilson - P850-1 Standby 850.0 kVA / 680.0 kW Prime 770.0 kVA / 616.0 kW Engine Perkins - 2806A-E18TTAG5 Voltage 400/230 V Frequency 50 Hz Enclosure CALGL2H Emissions Fuel Optimised - Dimensions
Length 5,572 mm Width 2,170 mm Height 2,398 mm Weight 6629.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P850-1 Datasheet Datasheet: Enclosure CALG Level 2 Datasheet Datasheet: Perkins 2806A-E18TTAG5 Engine Datasheet Datasheet: DSE4520 Control Panel Datasheet Manual: Engine Manual Manual: Operators Manual Manual: Technical Manual Stuart Group Brochure
