FG Wilson P715-3 Diesel Generator DSE Connect
3 Images
- Price From: £61,440.00 Excl. VAT
- Condition: New
- Stock: Contact us for Availability.
- Incoming Stock: 1 Unit/s Due In Jul 2026
- Stock Number: P715-3-Level 2
FG Wilson P715-3 Diesel Generator DSE Connect

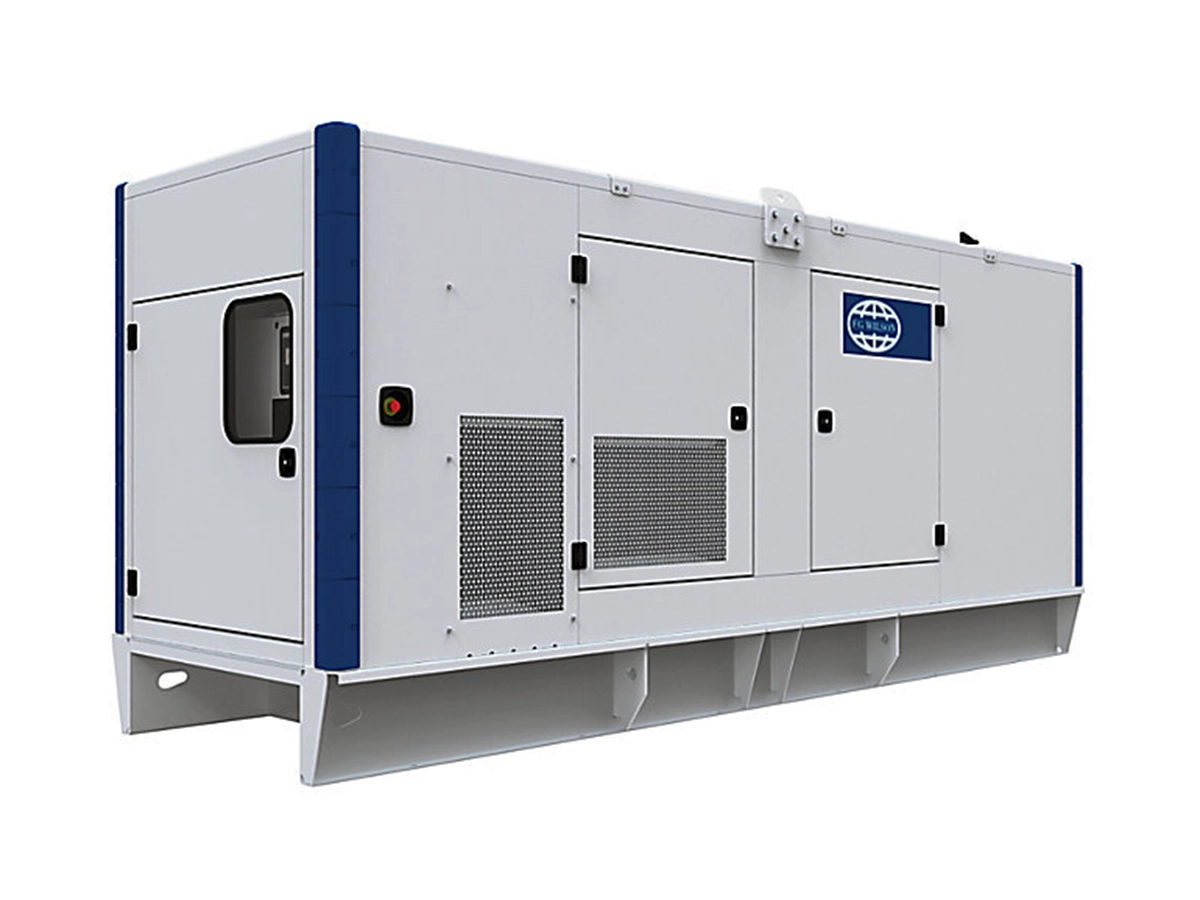

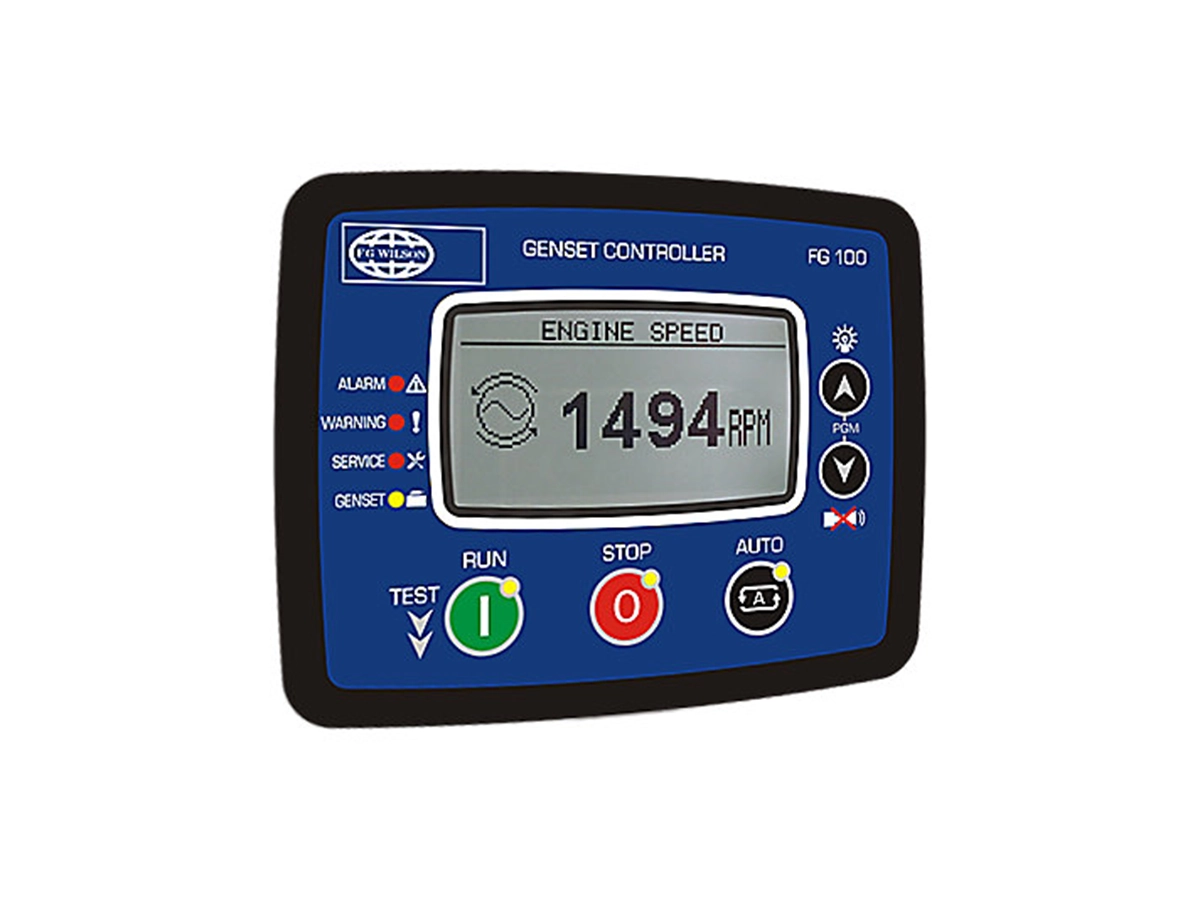

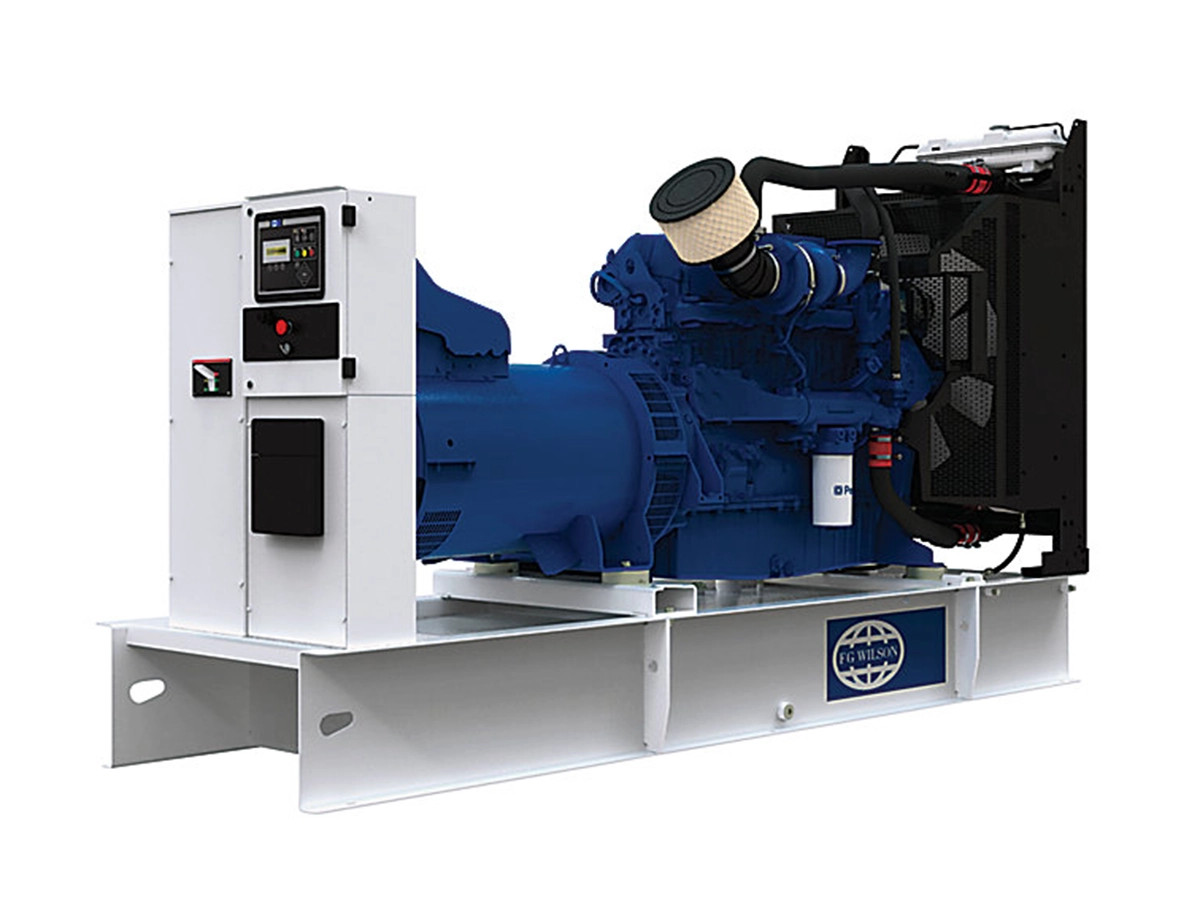

The FG Wilson P715-3 generator 715 kVA, 572 kW is powered by the ultra-reliable Perkins 2806A-E18TAG2 engine and is coupled to a FG Wilson FG33A560 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea 4520 control panel with a level 2 enclosure for reduced sound levels with a bunded fuel tank. Complete with the FG Wilson Connect which enables remote monitoring and control of the generator set. Suitable for outdoor events, agricultural companies and remote industrial facilities.
The FG Wilson P715-3 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
SPARE PARTS | ACCESSORIES | SERVICING | 01953 458976
- Technical Data
Manufacturer FG Wilson - P715-3 Standby 715.0 kVA / 572.0 kW Prime 650.0 kVA / 520.0 kW Phase Three-Phase Engine Perkins - 2806A-E18TAG2 Alternator FG Wilson - FG33A560 Voltage 400/230 V Frequency 50 Hz Enclosure Level 2 Control Panel Deep Sea - 4520 Emissions Fuel Optimised - Dimensions
Length 5,320 mm Width 1,920 mm Height 2,177 mm Weight 5874.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P715-3 Datasheet: Level 2 Enclosure Datasheet: FG Wilson FG33A560 Alternator Datasheet: Perkins 2806A-E18TAG2 Engine Datasheet: Deep Sea 4520 Control Panel Manual: Perkins 2806A-E18TAG2 Engine Manual: FG Wilson P715-3 Operators Manual: FG Wilson P715-3 Technical Stuart Group Brochure
