Used Armstrong 6X4X10DLC Fire Pump XSP9595
Used Armstrong 6X4X10DLC fire pump with 6"/150 mm flanged suction and 4"/100 mm flanged delivery branches.

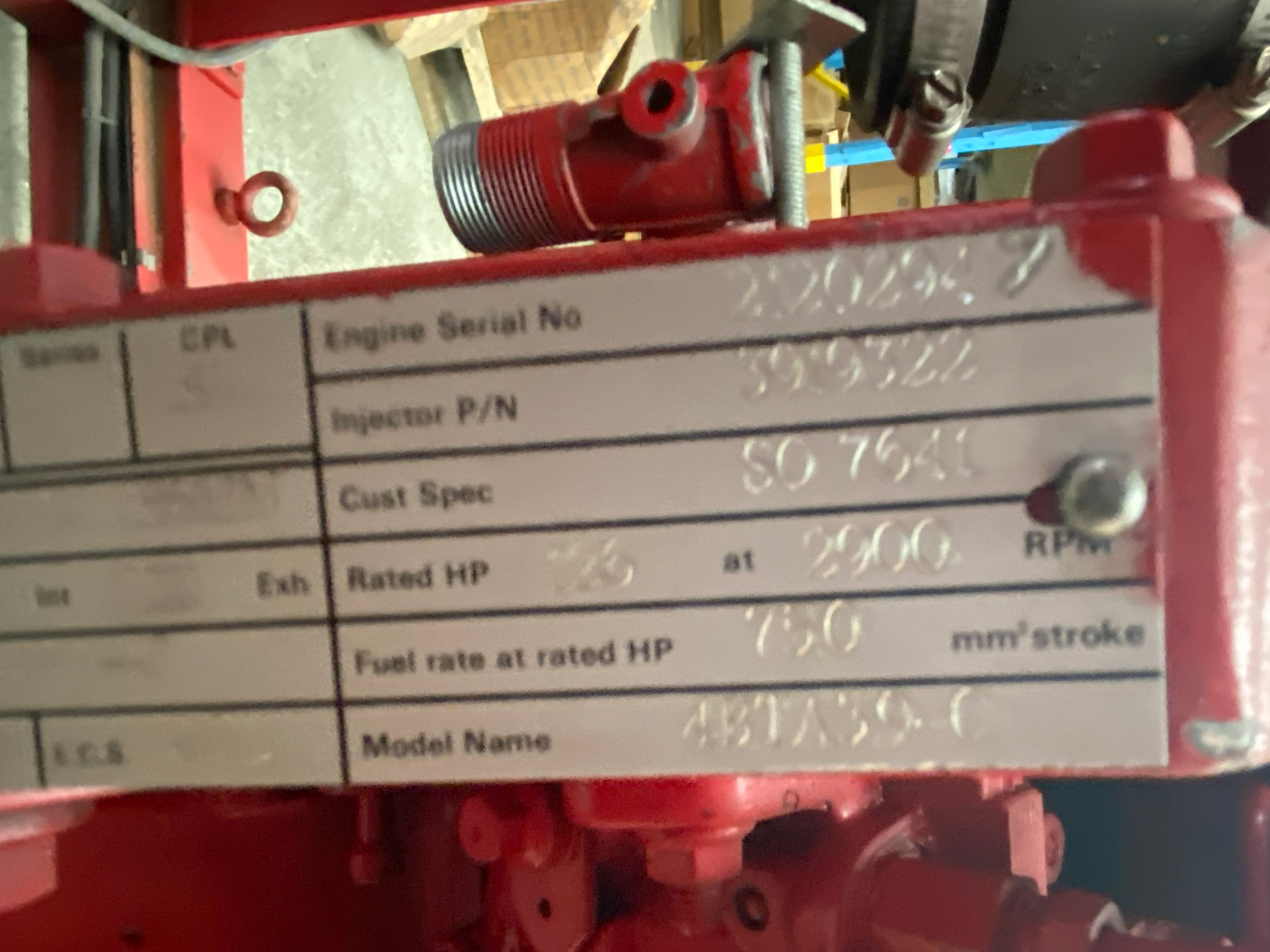

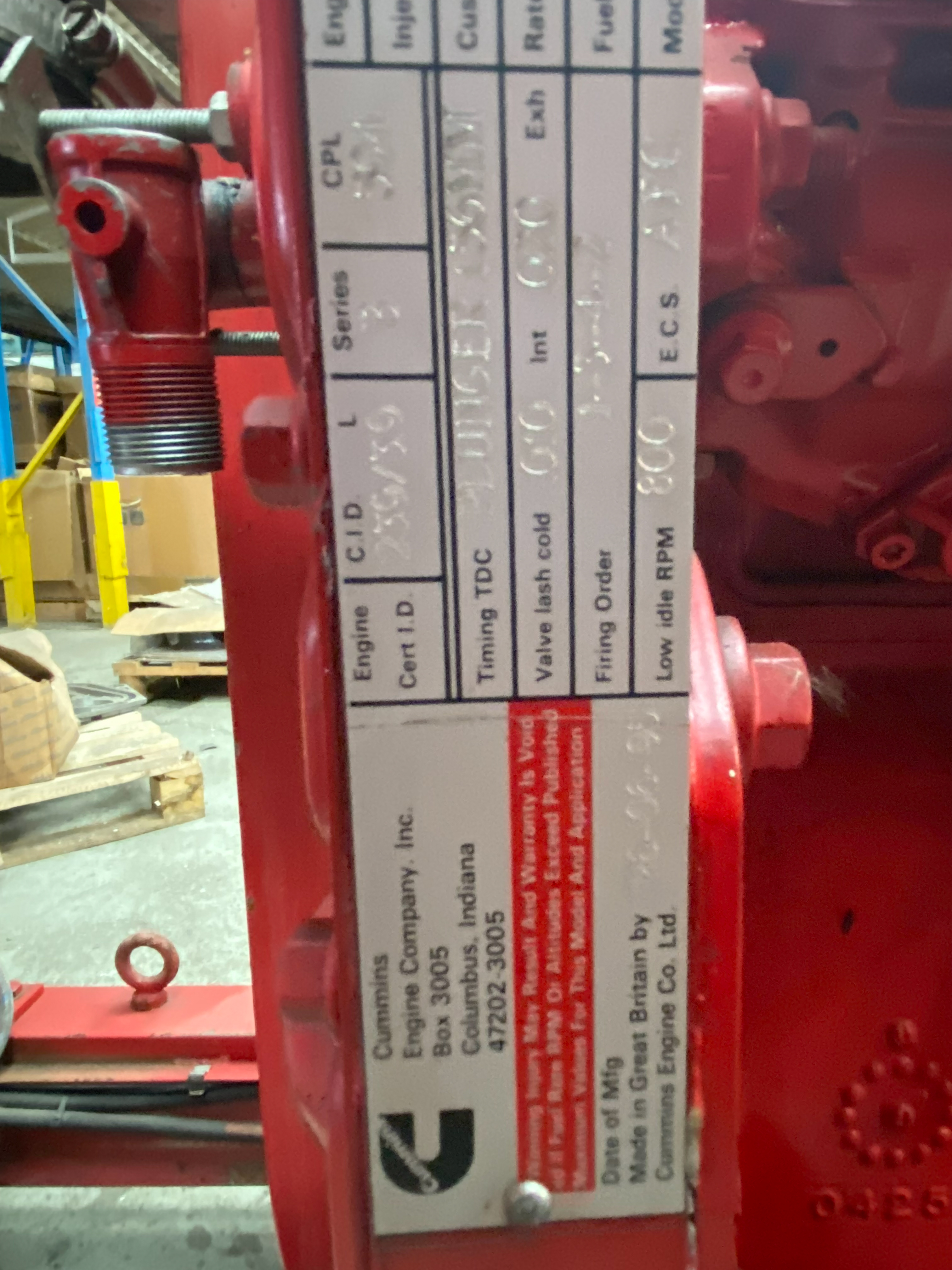

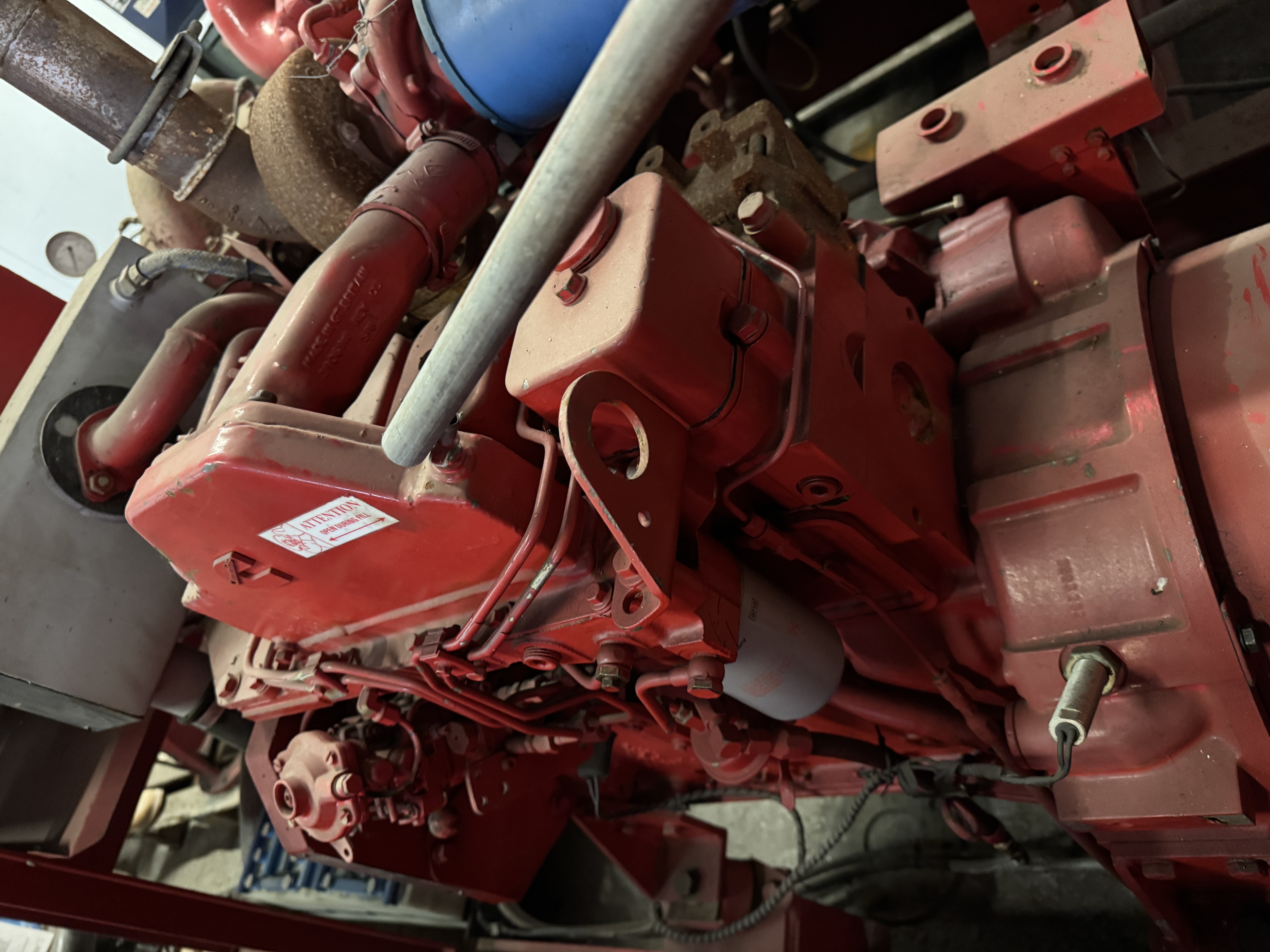

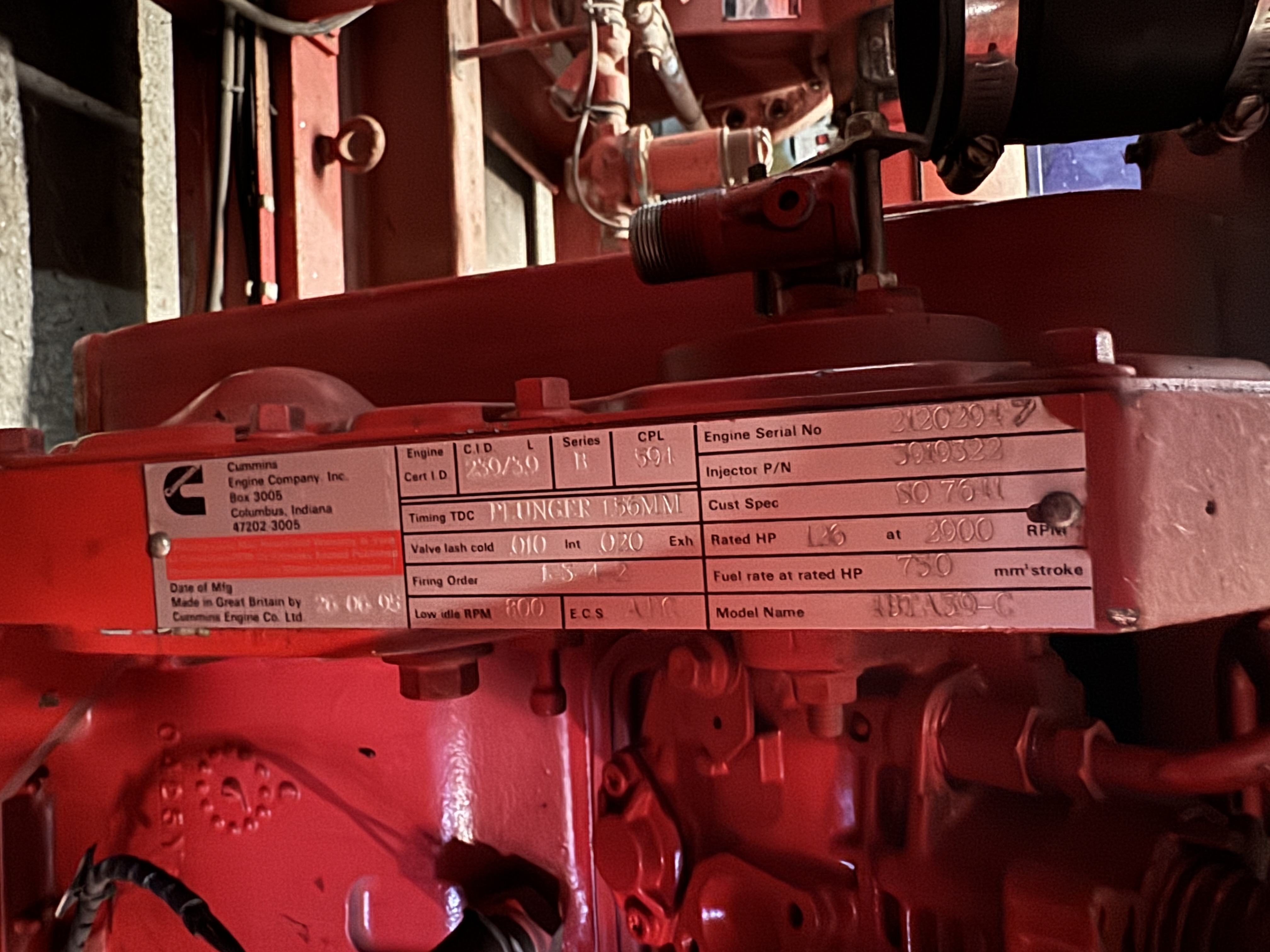

Driven by a Cummins B-series 4BTA39-C with turbo saver lubrication system, water cooled weir system diesel engine, with fuel capacity of 234 litres.

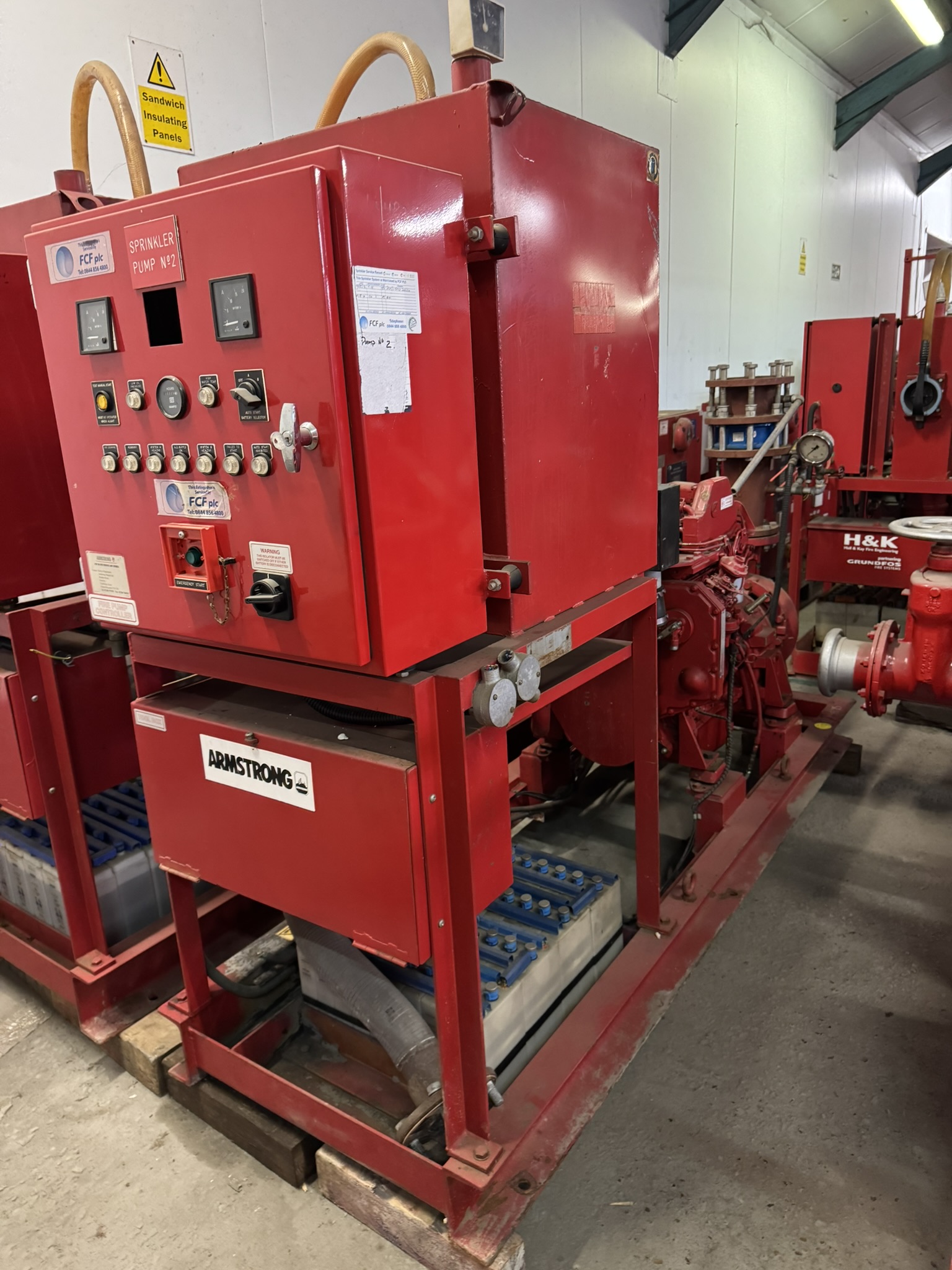

Mounted on a skid frame base, solids handling clean water only.
Sold with 1.1 kW Jockey pump.
For matched pair first pumps see stock no. XSP9594 - £5,500.00 each or £10,000.00 for the pair
Warranty
Sold fully checked, serviced with 30-days or 2-hours standby UK warranty whichever is first.
Disclaimer:

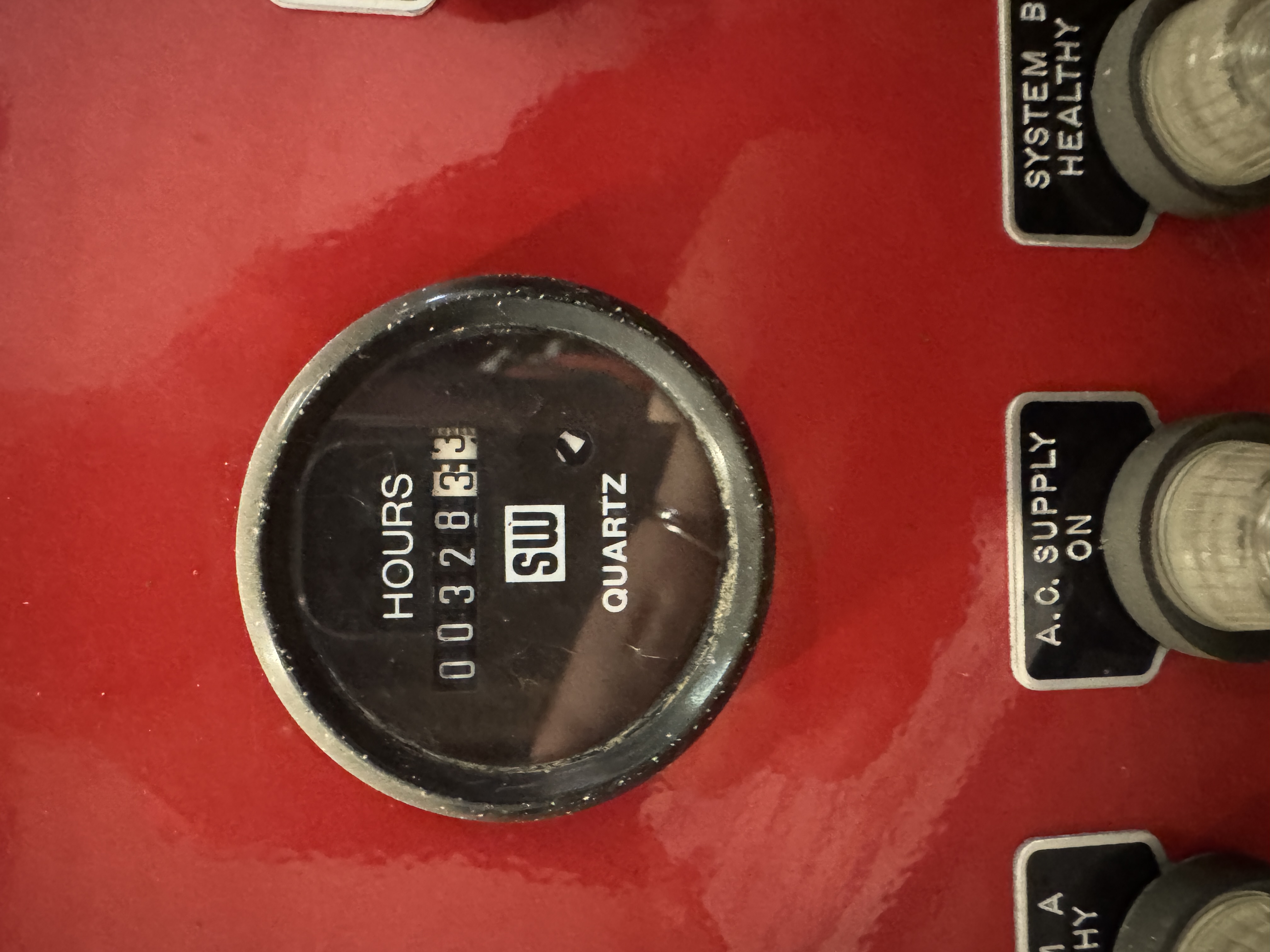

Hour meter readings are shown for guidance only and cannot be guaranteed.
Purchasers should satisfy themselves as to the condition, usage and suitability of pre-owned equipment prior to purchase
- Technical Data

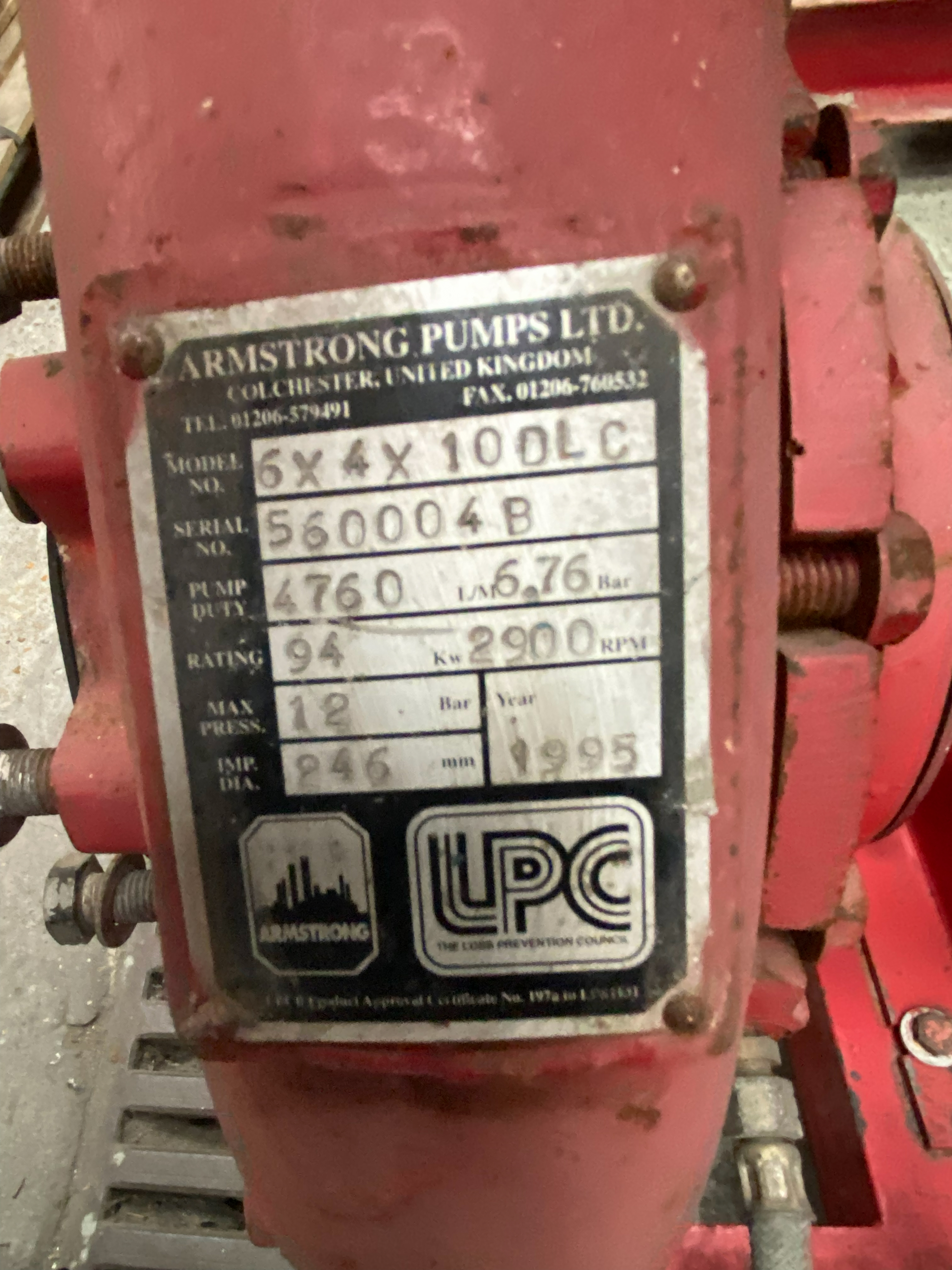

Condition Used Manufacturer Armstrong Model / Part 6X4X10DLC Year of Manufacture 1995 Max Flow 285.00 m³/hr Max Head 6.70 bar Suction Size 6 inch (150 mm) Discharge Size 4 inch (100 mm) Drive Cummins 4BTA39-C Diesel Engine Hours 328 hrs Voltage 24 V - Dimensions
Length 2,500 mm Width 900 mm Height 1,900 mm Please Note: The dimensions are approximate and may be estimated.
- Downloadable Documents
