Tsurumi GPN Heavy-Duty Slurry Pumps
GPN models are three phase slurry pumps, in cast iron, with a built-in agitator to stir sand, bentonite and pulverized solids into suspension for pumping. Capable of pumping large volumes, motors are 4 pole or 6 pole for increased wear resistance and they have large solids capacity. Constructed in superior grade materials throughout, they give exceptional performance in harsh operating conditions. The hydraulic design features a double mechanical seal for maximum reliability. The spiral shape of the pump casing, the air and water channel around the motor and the air-release valve, all combine to provide smooth, anti-clog pumping. Maintenance is straightforward, with simple replacement of parts, without the need for special tools. High-performance motors feature thermal protection, enabling simple installation and direct connection to the power supply.
Special use options: IDS (individually screened cable) is available on most models (Please request a quotation).
- Technical Data
Condition New Manufacturer Tsurumi Model / Part GPN Outlet (mm) 75 - 150 Motor output (kW) 5.5 - 22 Phases 3 Max head (m) 16 - 30 Max flow (I/min) 1900 - 5000 Free passage (mm) 30 - Model Variants

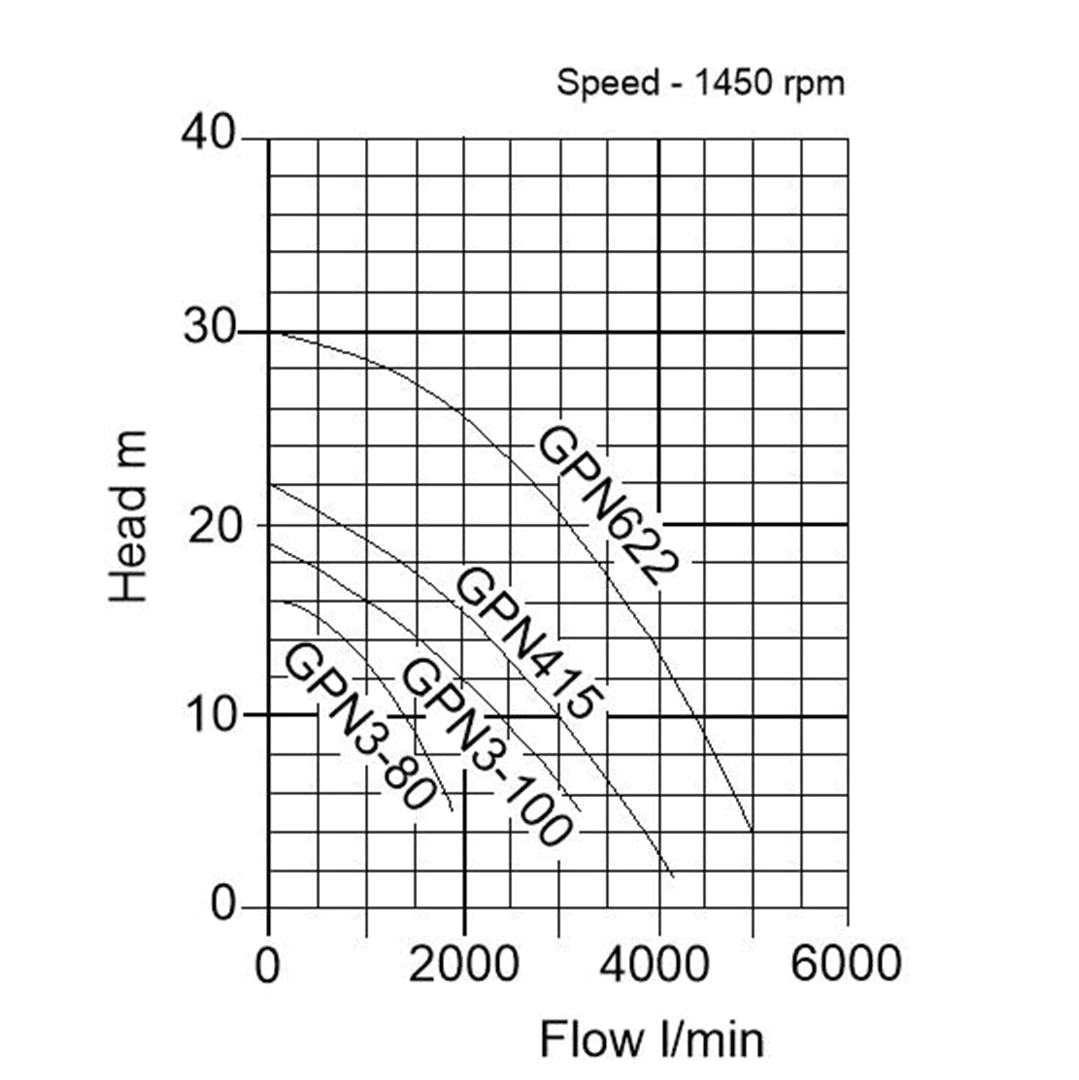

Model Outlet Volt kW Flow Head Model: GPN35.5 Outlet: 3 inch Volt: 400 V kW: 5.50 kW Flow: 1900.00 l/min Head: 16.30 m Model: GPN411 Outlet: 4 inch Volt: 400 V kW: 11.00 kW Flow: 3250.00 l/min Head: 19.30 m Model: GPN415 Outlet: 4 inch Volt: 400 V kW: 15.00 kW Flow: 4110.00 l/min Head: 21.50 m Model: GPN422 Outlet: 4 inch Volt: 400 V kW: 22.00 kW Flow: 3700.00 l/min Head: 34.00 m Model: GPN622 Outlet: 6 inch Volt: 400 V kW: 22.00 kW Flow: 5000.00 l/min Head: 30.00 m - Downloadable Documents
