Tsurumi KRS Project Dewatering Pumps
The KRS series is a range of three phase, contractors’ pumps which are constructed in superior grade materials throughout to give exceptional performance in harsh operating conditions. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. 4 pole motors provide excellent solids handling and wear resistance in water containing sand and silt. They also feature thermal protection, enabling simple installation and direct connection to the power supply.
Special use options: IDS (individually screened cable) and sacrificial anodes (Please request a quotation)
- Technical Data
Condition New Manufacturer Tsurumi Model / Part KRS Outlet (mm) 100 - 250 Motor output (kW) 3 - 22 Phases 3 Max head (m) 8 - 34 Max flow (I/min) 1820 - 12000 Free passage (mm) 12 - 30 - Model Variants

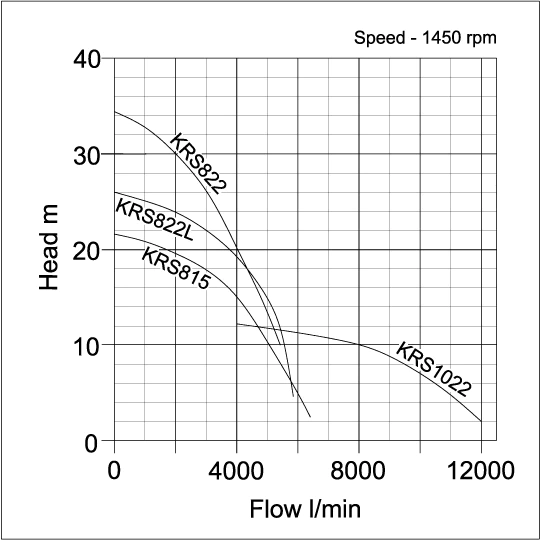

Model Outlet Volt kW Flow Head Model: KRS-43 Outlet: 4 inch Volt: None V kW: 3.00 kW Flow: 1820.00 l/min Head: 15.00 m Model: KRS-63 Outlet: 6 inch Volt: 400 V kW: 3.00 kW Flow: 3250.00 l/min Head: 8.00 m Model: KRS-65.5 Outlet: 6 inch Volt: 400 V kW: 5.50 kW Flow: 3200.00 l/min Head: 17.00 m Model: KRS2-69 Outlet: 6 inch Volt: 400 V kW: 9.00 kW Flow: 4250.00 l/min Head: 21.00 m Model: KRS-85.5 Outlet: 8 inch Volt: 400 V kW: 5.50 kW Flow: 4900.00 l/min Head: 10.00 m Model: KRS2-89 Outlet: 8 inch Volt: 400 V kW: 9.00 kW Flow: 5300.00 l/min Head: 15.00 m Model: KRS815 Outlet: 8 inch Volt: 400 V kW: 15.00 kW Flow: 6400.00 l/min Head: 21.00 m Model: KRS822 Outlet: 8 inch Volt: 400 V kW: 22.00 kW Flow: 5300.00 l/min Head: 34.00 m Model: KRS822L Outlet: 8 inch Volt: 400 V kW: 22.00 kW Flow: 5850.00 l/min Head: 26.00 m Model: KRS1022 Outlet: 10 inch Volt: 400 V kW: 22.00 kW Flow: 12000.00 l/min Head: 12.00 m - Downloadable Documents
