Tsurumi HSD2.55S Robust Submersible Drainage Pumpss
The HSD.55S is a lightweight and robust single-phase drainage pump, with an agitator and impeller in chromium iron to minimize clogging and increase wear resistance when pumping sand carrying water, sludge and bentonite. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position. The high-performance motor enables long periods of operation while partially submerged. Available as manual or with a pendant float switch, for automatic operation.
- Technical Data

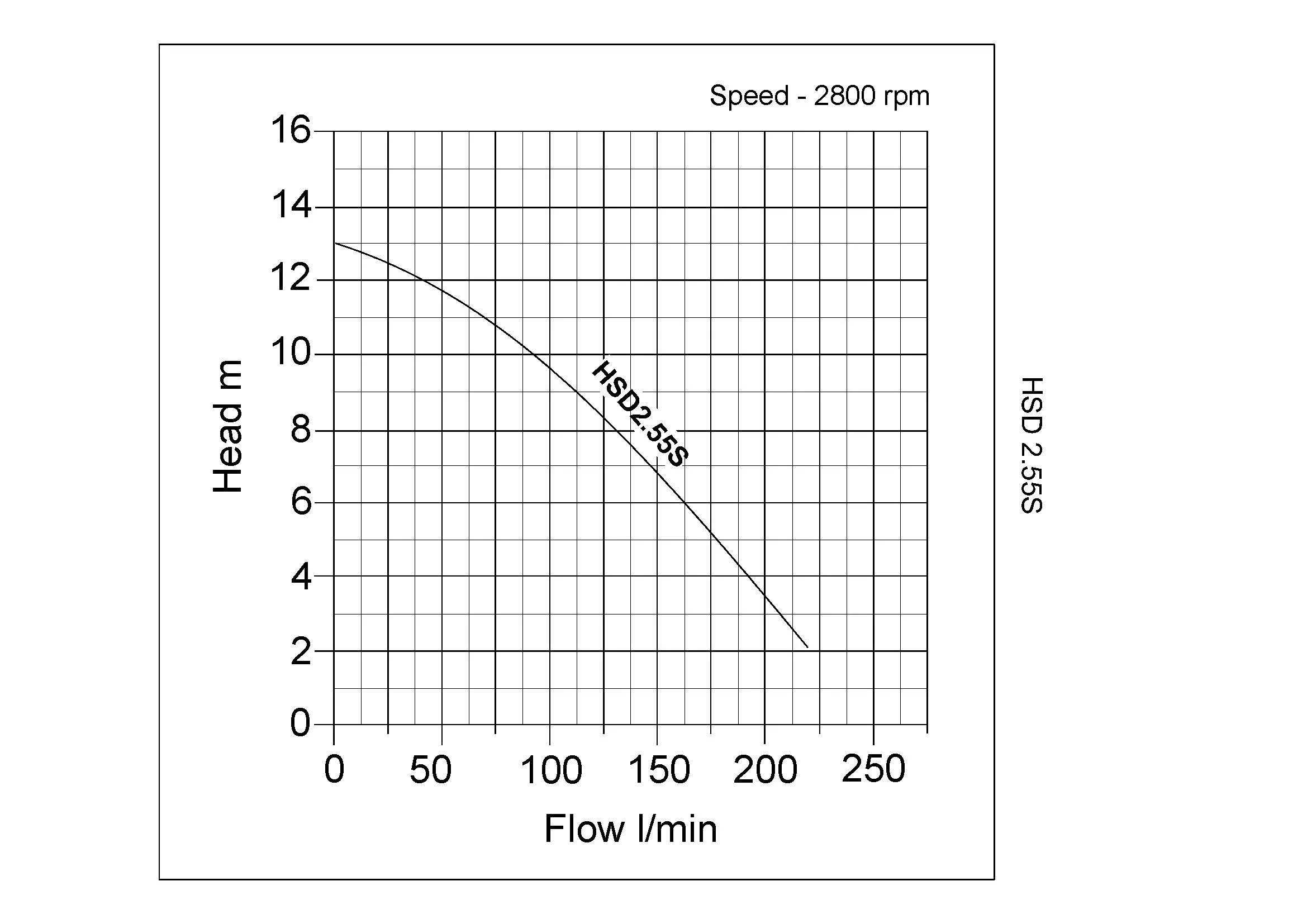

Condition New Manufacturer Tsurumi Model / Part HSD.55S Outlet (BSPM/mm): 2"/50 Motor output (kW) 0.55 Phases 1 Max head (m) 13.2 Max flow (I/min) 220 Free passage (mm) 10 - Model Variants
Model Manual/Auto Outlet Volt kW Flow Head Model: HSD.55S Manual/Auto: Manual Outlet: 2 inch Volt: 230 V kW: 0.55 kW Flow: 220.00 l/min Head: 13.20 m Model: HSD.55S Manual/Auto: Automatic Outlet: 2 inch Volt: 230 V kW: 0.55 kW Flow: 220.00 l/min Head: 13.20 m - Downloadable Documents
