Tsurumi HS Manual Single Phase Industrial Pumps
The HS series is a lightweight and robust range of single-phase contractors’ pumps used widely by tool rental companies, utilities and in the construction industry. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position; the spiral shape minimizes clogging. These combine with a urethane impeller, stirrer and cast iron pump chamber to give excellent wear and blockage resistance in water that contains sand and silt. The high-performance motor enables long periods of operation while partially submerged.
The puddle pump adaptor kit is an optional extra that will convert the HS2.4S manual to a puddle sucker. It will enable the pumping of water levels down to 10mm, maximize utilisation and is very simple to fit. The kit comprises a rubber coated steel bottom plate, stainless steel bolts, nuts and washers.
- Technical Data

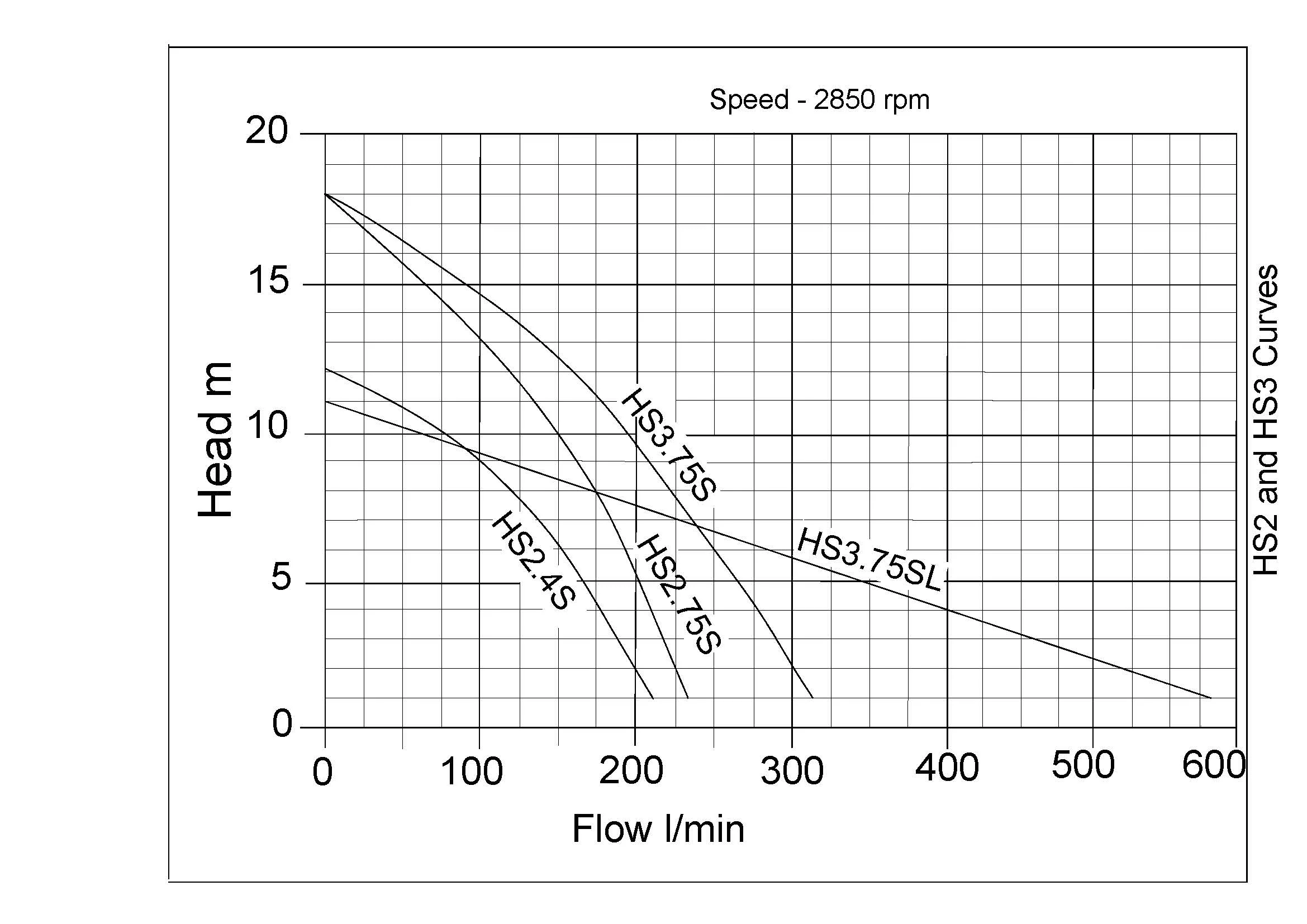

Condition New Manufacturer Tsurumi Model / Part HS Manual Outlet (mm) 50 - 75 Motor output (kW) 0.4 - 0.75 Phases 1 Max head (m) 10.8 - 18 Max flow (I/min) 205 - 580 Free passage (mm) 7 - Model Variants
Model Manual/Auto Outlet Volt kW Flow Head Model: HS2.4S Manual/Auto: Manual Outlet: 2 inch Volt: 110 V kW: 0.40 kW Flow: 205.00 l/min Head: 12.00 m Model: HS2.4S Manual/Auto: Manual Outlet: 2 inch Volt: 230 V kW: 0.40 kW Flow: 205.00 l/min Head: 12.00 m Model: HS2.75S Manual/Auto: Manual Outlet: 2 inch Volt: 110 V kW: 0.75 kW Flow: 230.00 l/min Head: 18.00 m Model: HS2.75S Manual/Auto: Manual Outlet: 2 inch Volt: 230 V kW: 0.75 kW Flow: 230.00 l/min Head: 18.00 m Model: HS3.75S Manual/Auto: Manual Outlet: 75 mm Volt: 110 V kW: 0.75 kW Flow: 310.00 l/min Head: 18.00 m Model: HS3.75S Manual/Auto: Manual Outlet: 75 mm Volt: 230 V kW: 0.75 kW Flow: 310.00 l/min Head: 18.00 m Model: HS3.75SL Manual/Auto: Manual Outlet: 75 mm Volt: 110 V kW: 0.75 kW Flow: 580.00 l/min Head: 10.80 m Model: HS3.75SL Manual/Auto: Manual Outlet: 75 mm Volt: 230 V kW: 0.75 kW Flow: 580.00 l/min Head: 10.80 m - Downloadable Documents
