FG Wilson P330-5 Diesel Generator LSA DSE
3 Images
- Price From: £33,925.00 Excl. VAT
- Condition: New
- Stock: 1 Unit/s in Stock
- Stock Number: P330-5-Level 2 LSA DSE

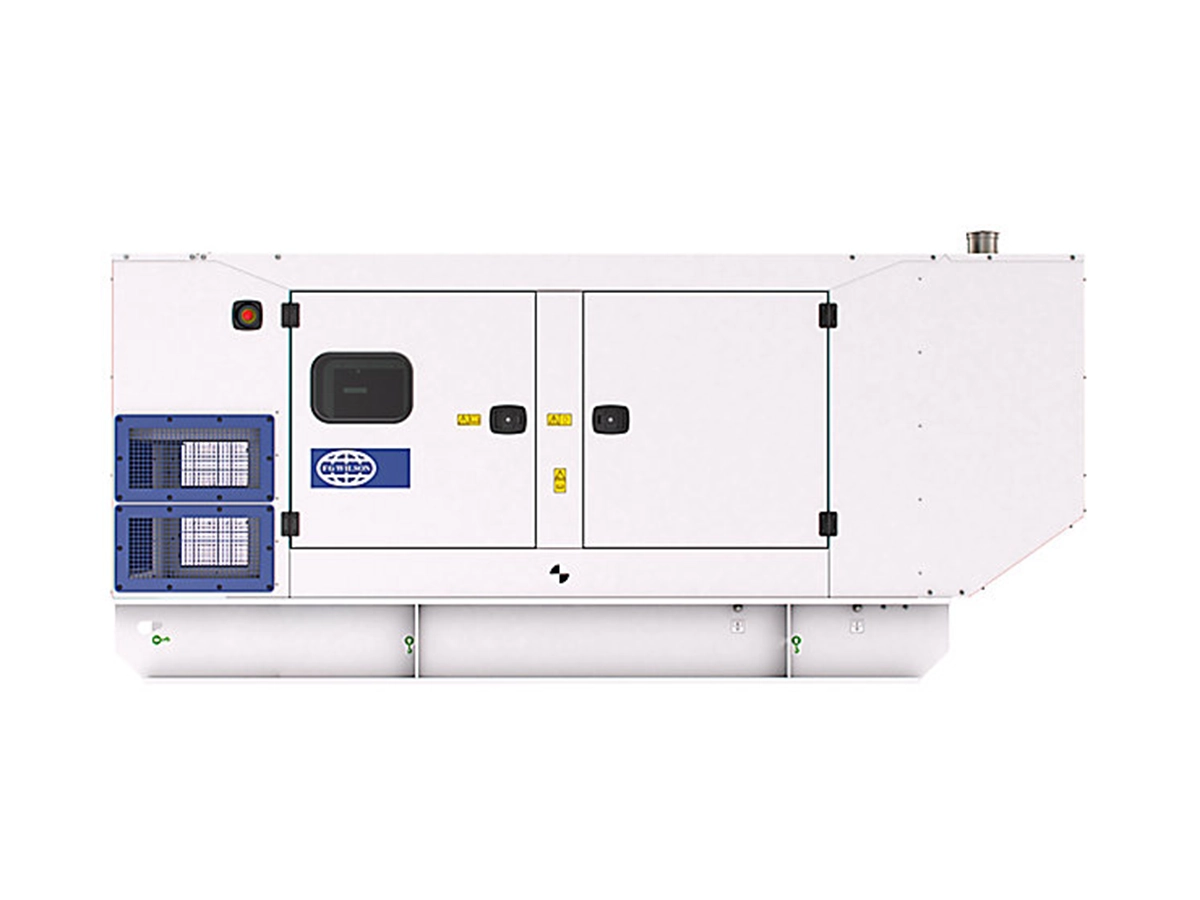

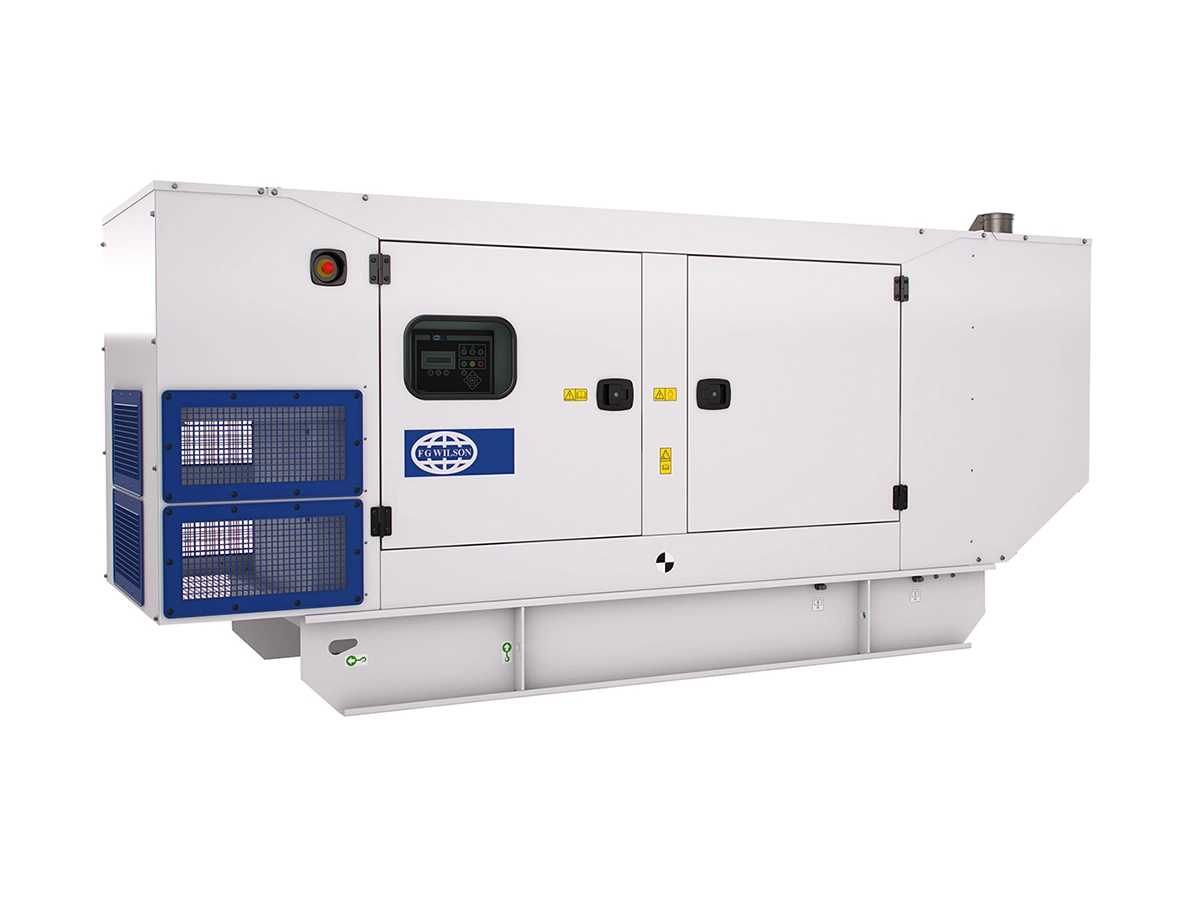

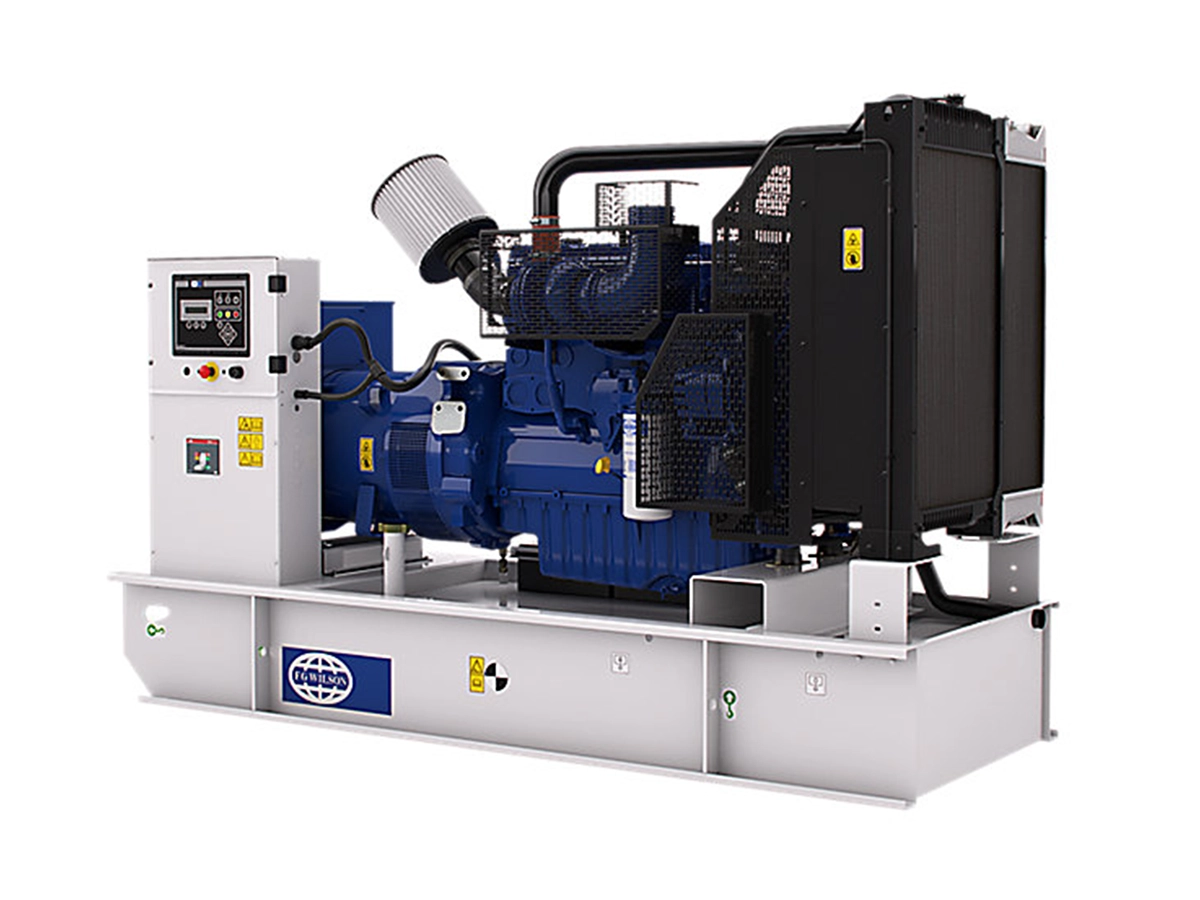

FG Wilson P330-5 Diesel Generator LSA DSE
The FG Wilson P330-5 generator is 330 kVA, 264 kW powered by the ultra-reliable Perkins 1506A-E88TAG5 engine and is coupled to a Leroy Somer LL5114J 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea 7410 control panel with a level 2 enclosure for reduced sound levels with a bunded fuel tank. Suitable for outdoor events, agricultural companies and remote industrial facilities.
The FG Wilson P330-5 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
SPARE PARTS | ACCESSORIES | SERVICING | 01953 458976
- Technical Data
Manufacturer FG Wilson - P330-5 Standby 330.0 kVA / 264.0 kW Prime 300.0 kVA / 240.0 kW Phase Three-Phase Engine Perkins - 1506A-E88TAG5 Alternator Leroy Somer - LL5114J Voltage 400/230 V Frequency 50 Hz Enclosure Level 2 Control Panel Deep Sea - 7410 Emissions Fuel Optimised - Dimensions
Length 3,975 mm Width 1,400 mm Height 1,950 mm Weight 2854.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P330-5 Datasheet: Level 2 Enclosure Datasheet: Leroy Somer LL5114J Alternator Datasheet: Perkins 1506A-E88TAG5 Engine Manual: Perkins 1506A-E88TAG5 Engine Manual: FG Wilson P330-5 Operators Datasheet: Deep Sea 7410 Control Panel Manual: FG Wilson P330-5 Technical Stuart Group Brochure
