- Price From: £16,060.00 Excl. VAT
- Condition: New
- Stock: Contact us for Availability.
- Incoming Stock: 3 Unit/s Due In Apr 2026
- Stock Number: P165-5-CAE DSE

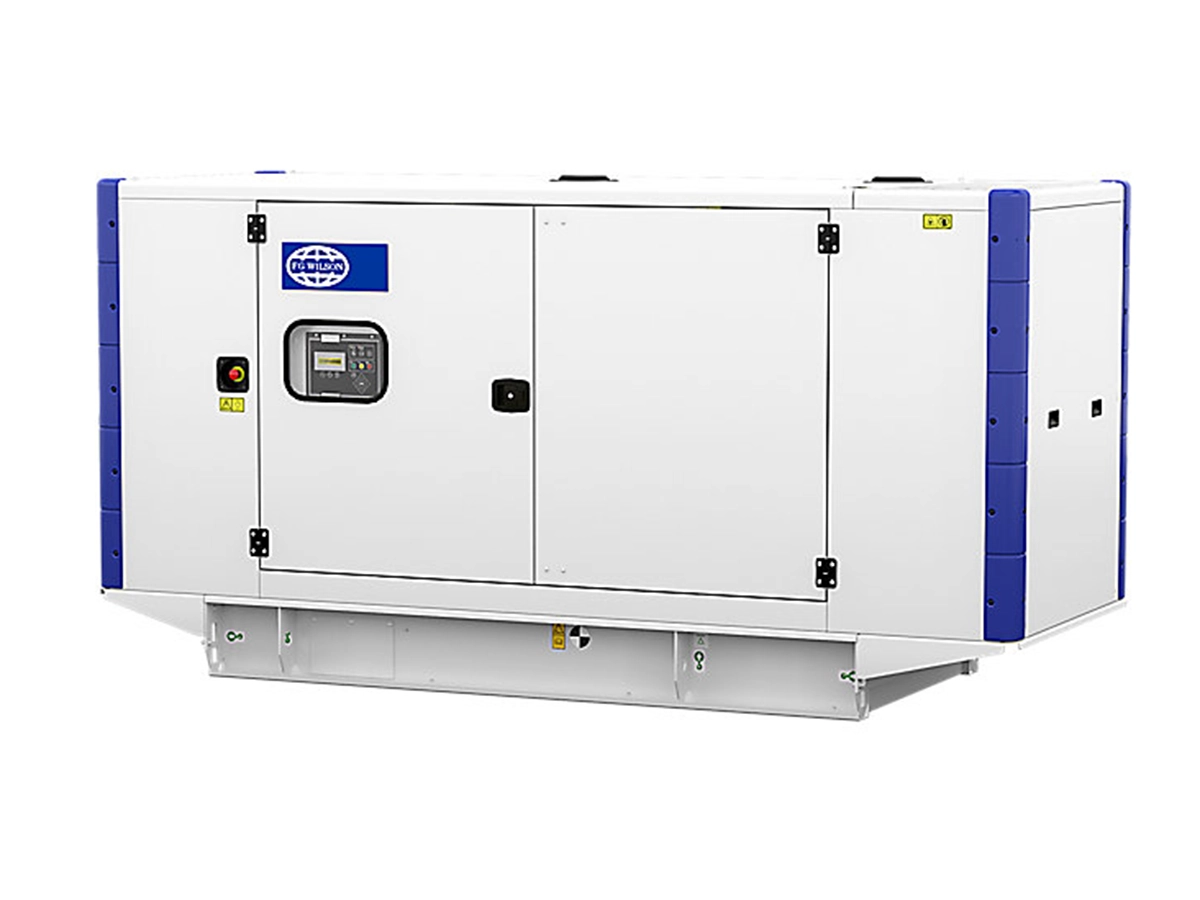

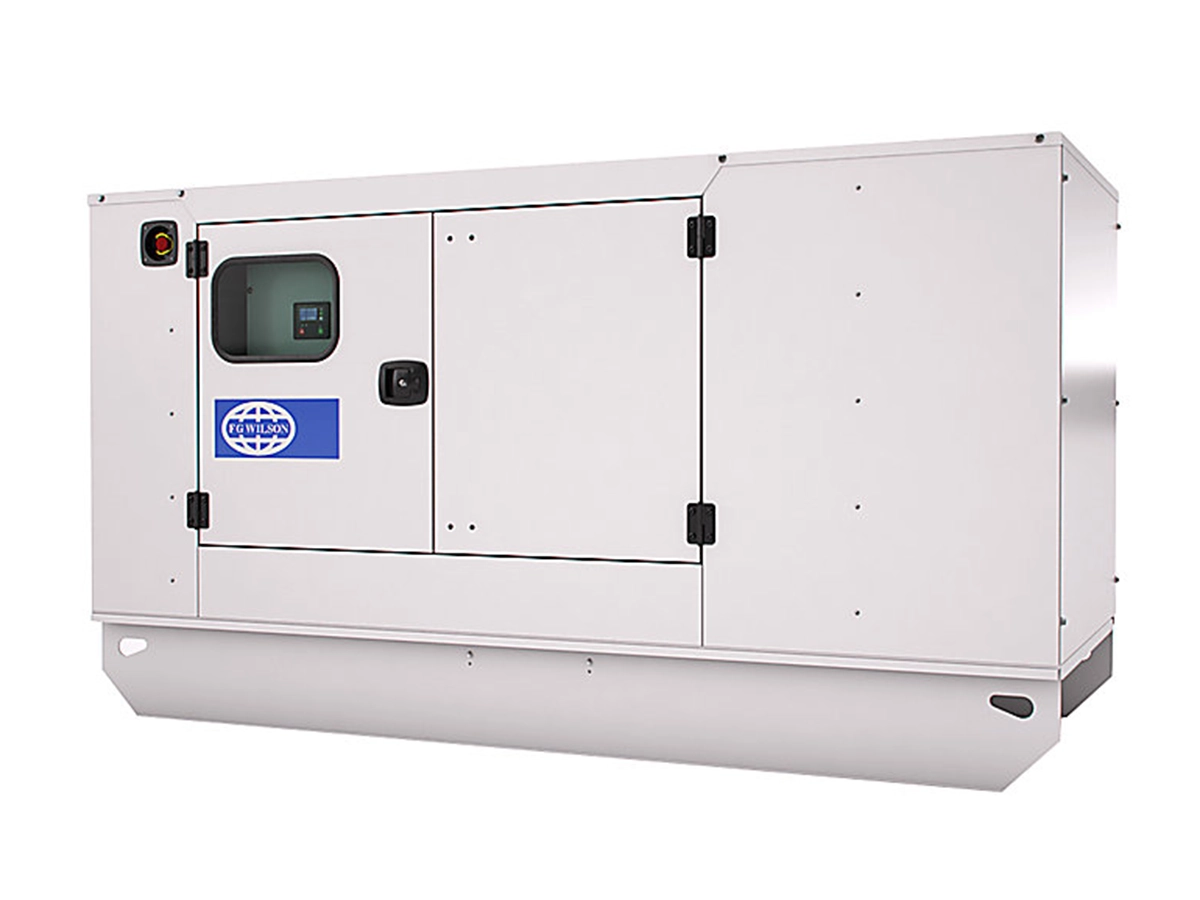

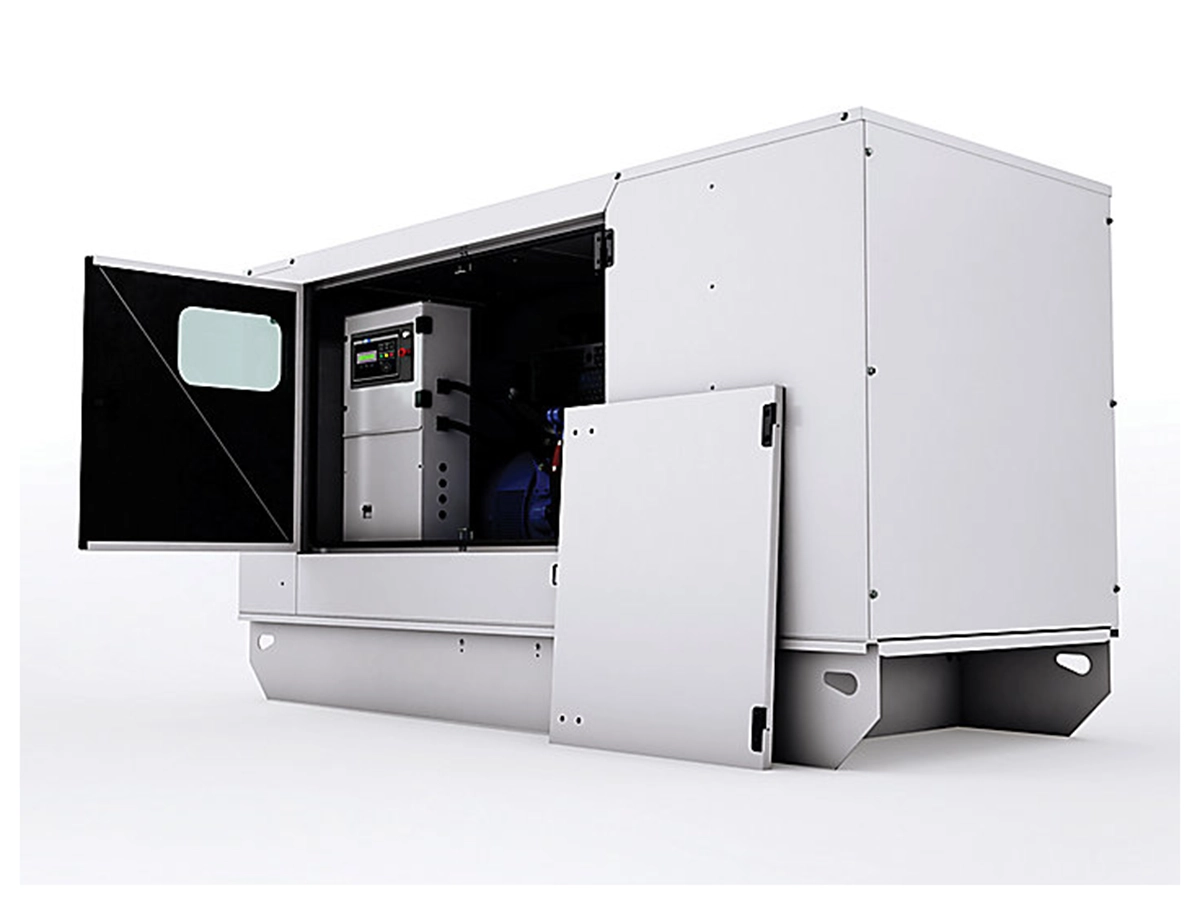

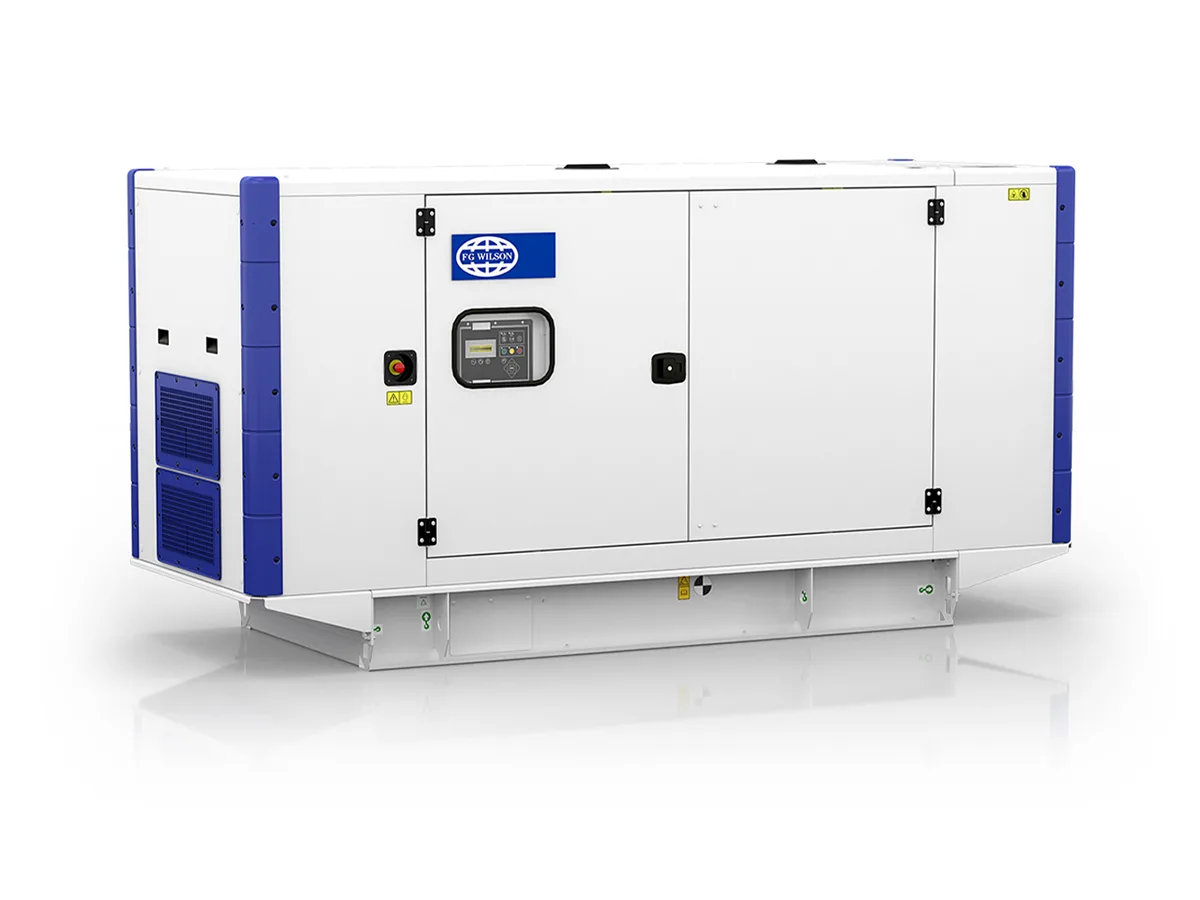

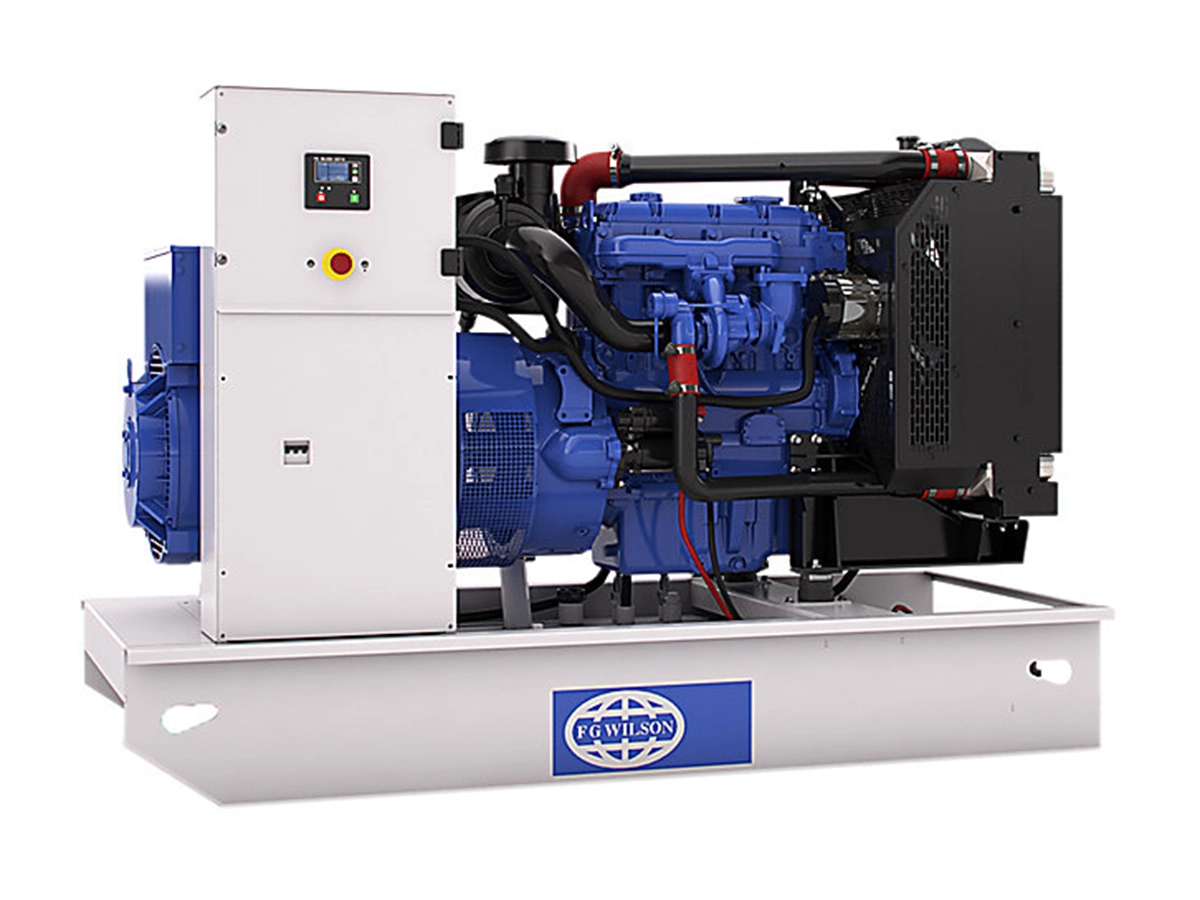

FG Wilson P165-5 Diesel Generator CAE DSE Connect
The FG Wilson P165-5 CAE generator 165 kVA, 132 kW powered by the ultra-reliable Perkins 1106A-70TAG1 engine and is coupled to a FG Wilson FGL30100 400/230 volts, 50 Hz alternator to provide prime or standby power. The generator is controlled by a Deep Sea 4520 control panel and has a CAE enclosure for reduced sound levels and reinforced corners with a bunded fuel tank. Complete with the FG Wilson Connect which enables remote monitoring and control of the generator set. Suitable for construction site cabins, residential properties, small retail shops and telecommunications.
The FG Wilson P165-5 diesel generator is complete with manufacturers 1 year warranty on prime units and 2 year warranty on standby.
- Technical Data
Manufacturer FG Wilson - P165-5 Standby 165.0 kVA / 132.0 kW Prime 150.0 kVA / 120.0 kW Phase Three-Phase Engine Perkins - 1106A-70TAG2 Alternator FG Wilson - FGL30100 Voltage 400/230 V Frequency 50 Hz Enclosure CAE Control Panel Deep Sea - 4520 Emissions Fuel Optimised - Dimensions
Length 3,520 mm Width 1,120 mm Height 1,815 mm Weight 1981.00 kg Please Note: The dimensions and weight are approximate and may be estimated.
- Downloadable Documents
Datasheet: Open Set P165-5 Datasheet: CAE Enclosure Datasheet: FG Wilson FGL30100 Alternator Datasheet: Perkins 1106A-70TAG2 Engine Datasheet: Deep Sea 4520 Control Panel Manual: Perkins 1106A-70TAG2 Engine Manual: FG Wilson P165-5 Operators Manual: FG Wilson P165-5 Technical Stuart Group Brochure
